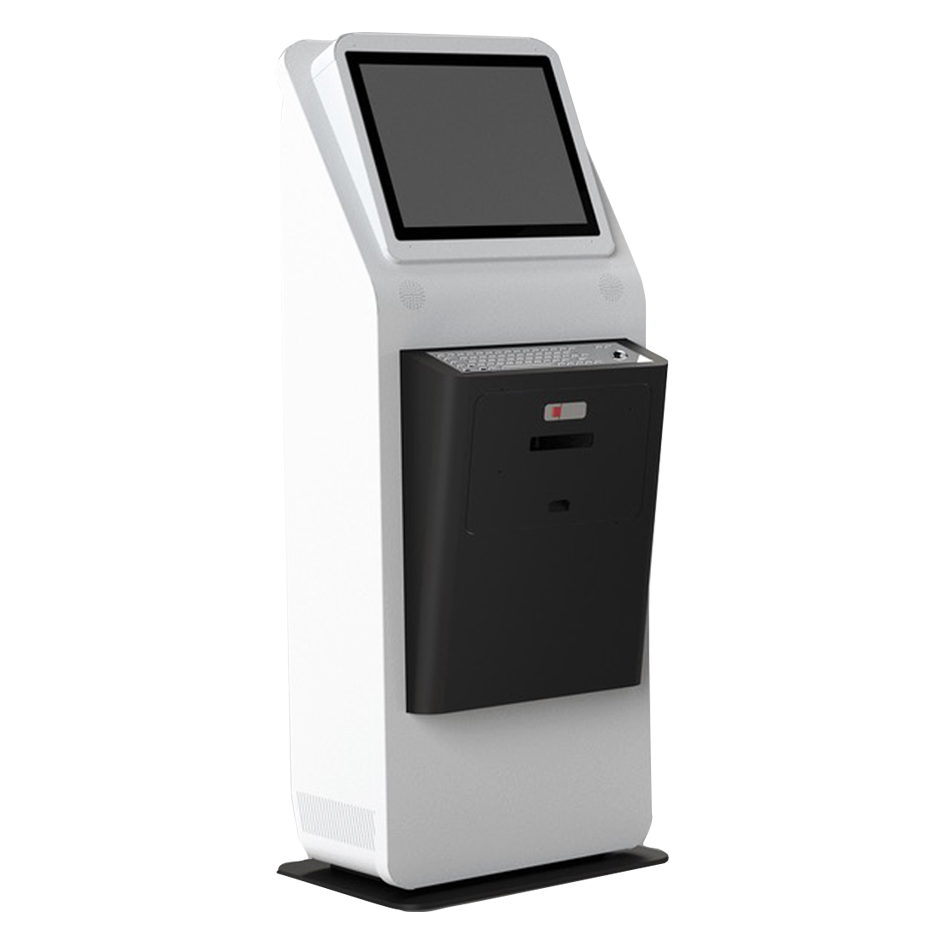

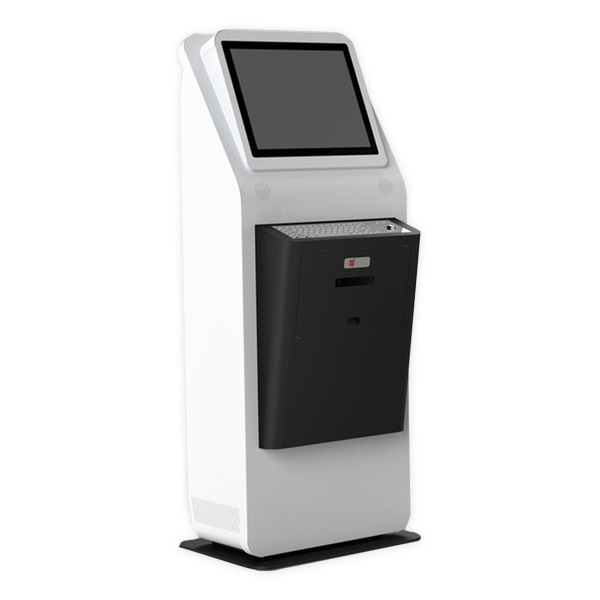

E-Life Kiosk EK-319
Industrial version of New Generation E-Life Kiosk Series EK-319, has been developed as a solution for reliable and durable kiosk needs especially in all industrial environments. EK-319 combines an easy-to-use barcode printer drawer in a functional design with advanced features.
- 19” Projected Capacitive Touch Screen Display
- 10-Points Multi-Touch Feature
- Industrial Grade Box PC
- Standard Intel® Celeron™ J1900 Quad-Core Processor
- i3, i5 and i7 CPU Options
- 7/24 Non-Stop Operation
- Durable and Ergonomic Chassis Design
- Versatile Barcode Printer Drawer with Rail
- Thermal Printer, Card Reader, Barcode Scanner and Metal Keyboard Options

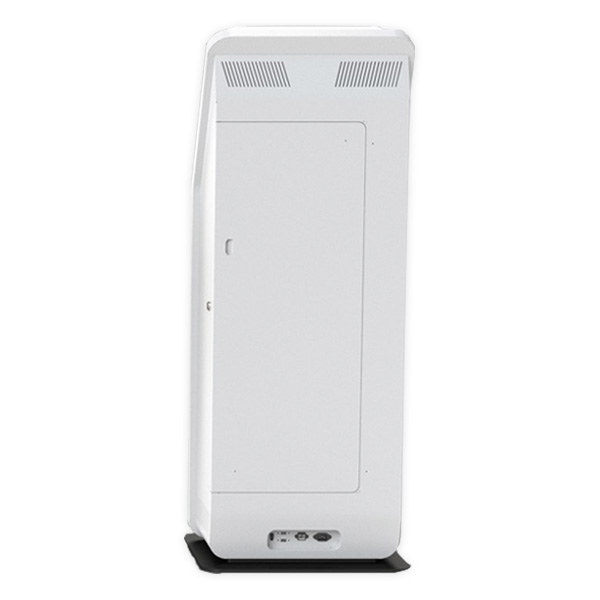

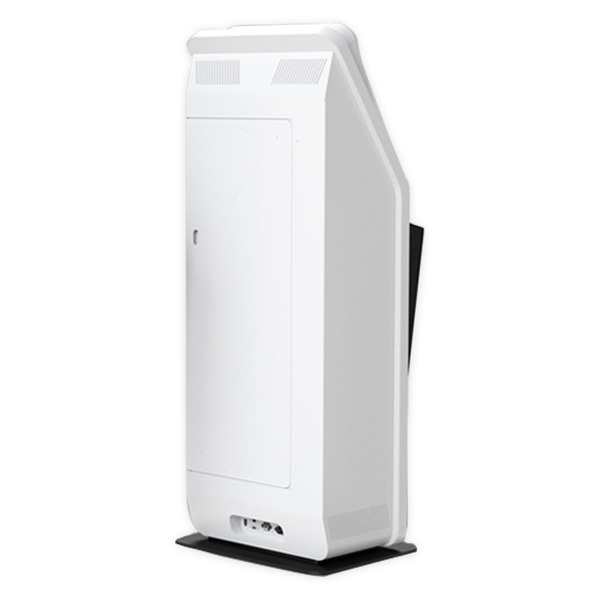

- Easy Access Locked Back Door for Service and Maintenance
- Wooden Packing for Secure Transportation and Delivery
Strong Team Player of
Digital Transformation Projects
Industrial version of New Generation E-Life Kiosk Series EK-319, has been developed as a solution for reliable and durable kiosk needs, especially in all industrial environments. EK-319 combines an easy-to-use barcode printer drawer in a functional design with advanced features.
NEW E-LIFE KİOSK
EK-319
CPU OPTIONS
i3, i5 and i7
USB
Multi-Touch PCAP
PERIPHERALS
Printer Drawer
PORT
Rich I/O
PERIPHERALS
Options Keyboard
DURABLE
7/24 Working
Designed for Digital Transformation in
Industrial Environment
E-Life Kiosk EK-319 Industrial Kiosk aims to add a new dimension to the kiosk solutions needed in industrial environment and especially for digital transformation projects at production area. EK-319’s durable 19 ”Multi Touch Projected Capacitive Touch Screen allows fast data entry, while the EK-319 works as a durable and functional industrial workstation with its built-in barcode printer drawer and other optional peripherals.
High Performance and
Rich I/O
E-Life EK-319 provides high CPU performance in all self-service applications with its standard Intel Celeron J1900 CPU and Intel Core i3, i5 and i7 processor options. EK-319 provides fast and easy deployment in the field with its enhanced I/O structure and various peripheral options.
Fast and Sensitive
Multi-Touch PCAP
E-Life EK-319 combines high sensitivity and fast operation with 10-Point Multi-Touch with its 19” Projected Capacitive Touch Screen, which is used as standard in all new generation E-Life Kiosk models. This new PCAP Touch Screen feature offers a user experience like mobile phones.
Functional and Adaptable
With the versatile barcode printer drawer with rail at the front of the kiosk, it is possible to adapt different barcode printers whşich already been used at work floor on EK-319. An optional keyboard drawer can also applied on EK-319 to provide a secure keyboard usage in industrial environment. Thus EK-319 can be quickly adapted to different application needs with many peripheral options such barcode printer, barcode reader, keyboard that can be integrated in kiosk.
| Model | E-Life EK-319 Industrial Kiosk |
| PC Module | Inno-Box J1900 Industrial Box PC |
| Processor | Intel® Celeron ® J1900 Quad-Core 2.00 GHz
Optional Intel Core i3 and i5 Processor with other Inno-Box PC Models |
| RAM | 4GB 1333 MHz DDR3L |
| SSD | 64 GB mSATA SATAIII SSD |
| PC Chassis | Aluminum with Fanless Architecture |
| Display | 19” TFT LCD |
| Display Resolution | 1280 x 1024 |
| Display Brigthness | 350 cd/m2 |
| Display Contract | 1000:1 |
| Touch Screen | Multi-Touch Projected Capacitive Zero-Bezel |
| Touch Screen Features | 10-Points Multi-Touch, Glass to Glass Structure |
| Graphics Adapter | Intel® HD Graphics |
| LAN | 2 x Realtek RTL8111G Gigabit Ethernet |
| Serial Ports | 6 x RS232 |
| USB | 5 x USB 2.0, 1 x USB 3.0 |
| Audio | Realtek ALC269, 2 x 5 Watt Stereo Speaker |
| Power Supply | 150 Watts Industrial Grade Power Supply |
| Kiosk Chassis | Metal Body with Electrostatic Power Paint
Barcode Printer Drawer with Rails and Lock Modular Front Cover for Easy Peripheral Integration Locked Front Door Customized Color Options |
| Mounting | Floor Mount Holes at Bottom |
| Packing | Optional Wooden Pack for Transportation |
| Optional Peripherals | Various Barcode Printers to be Integrated in Drawer
MIFARE or MSR Reader 60 or 80 mm Thermal Kiosk Printer 1D/2D Barcode Scanner Wi-Fi Adapter Stainless Steel Keyboard and Trackball |
