E-Life EPC-616 G2 Panel PC

New EPC-616 G2 is a cost effective and reliable wide screen industrial Panel PC solution which is demanding Full HD resolution in a compact design for Industry 4.0, IoT, Automation and Digital Transformation projects. E-Life EPC-616 G2 is dedicated to providing non-stop operation at industrial environments with its new generation Quad Core Intel Embedded Processor, rich I/O and robust aluminum chassis

  • Intel Celeron J4125 2.00 GHz Quad Core Processor
  • Durable and Functional Aluminum Chassis
  • 15.6″ LCD with 400 cd/m2 Brightness
  • 1920 x 1080 Full HD Resolution
  • Multi-Touch Projected Capacitive Touch Screen
  • Glove Support on PCAP Touch
  • 2 x Gigabit Ethernet
  • 3 x RS232
  • 2 x USB 2.0 and 2 x USB 3.0
  • 9~36V Wide Range DC Input
  • Remote Power Switch Connector

Higher Performance with
 New Generation Processor

Combining the advantages of newest generation Intel Celeron J4125 Quad Core processor and DDR4 2400MHz memory technology, new EPC-616 G2 offers much higher performance for all applications.

Wide Screen Comfort and Efficiency for Your
 Industrial Applications

New E-Life EPC-616 G2 has a wide screen LCD display with 1920×1080 Full HD resolution which give more space for your software to contain much more data on display. This will provide a better user experience at filed and increase efficiency of your application.

E-Life EPC-618 Panel PC

E-LIFE
EPC-616 G2
PANEL PC

PROCESSOR
Intel Celeron J4125

SCREEN
Multi-Touch PCAP

SCREEN
IPS Wide Screen

PORT
3 RS232

PORT
Dual LAN

BODY
Durable Aluminum

Best Choice for Your Projects

With all these enhanced features, stylish and compact design, EPC-616 G2 is an ideal solution for many different applications like industrial automation, HMI, Machinery Control, IoT, Industry 4.0, Smart Factories, Smart Building and Smart Retail.

Durable Multi-Touch PCAP with
Glove Support

EPC-616 G2 has 15.6” LCD Full HD Display with 400 cd/m2 brightness to ensure smooth user experience in all industrial environment as well as its specially designed Projected Capacitive Touch Sensor with 4 mm total thickness to provide durability and sensitivity during operation. EPC-616 G2’s Projected Capacitive sensor provides glove support to ensure seamless touch screen experience at all environments.

Stylish and Rugged
 Aluminum Chassis

E-Life EPC-616 G2 has a unique aluminum extrusion chassis with a stylish design and rugged structure. This ensures EPC-616 G2 will work on harsh industrial environments without any interruption.

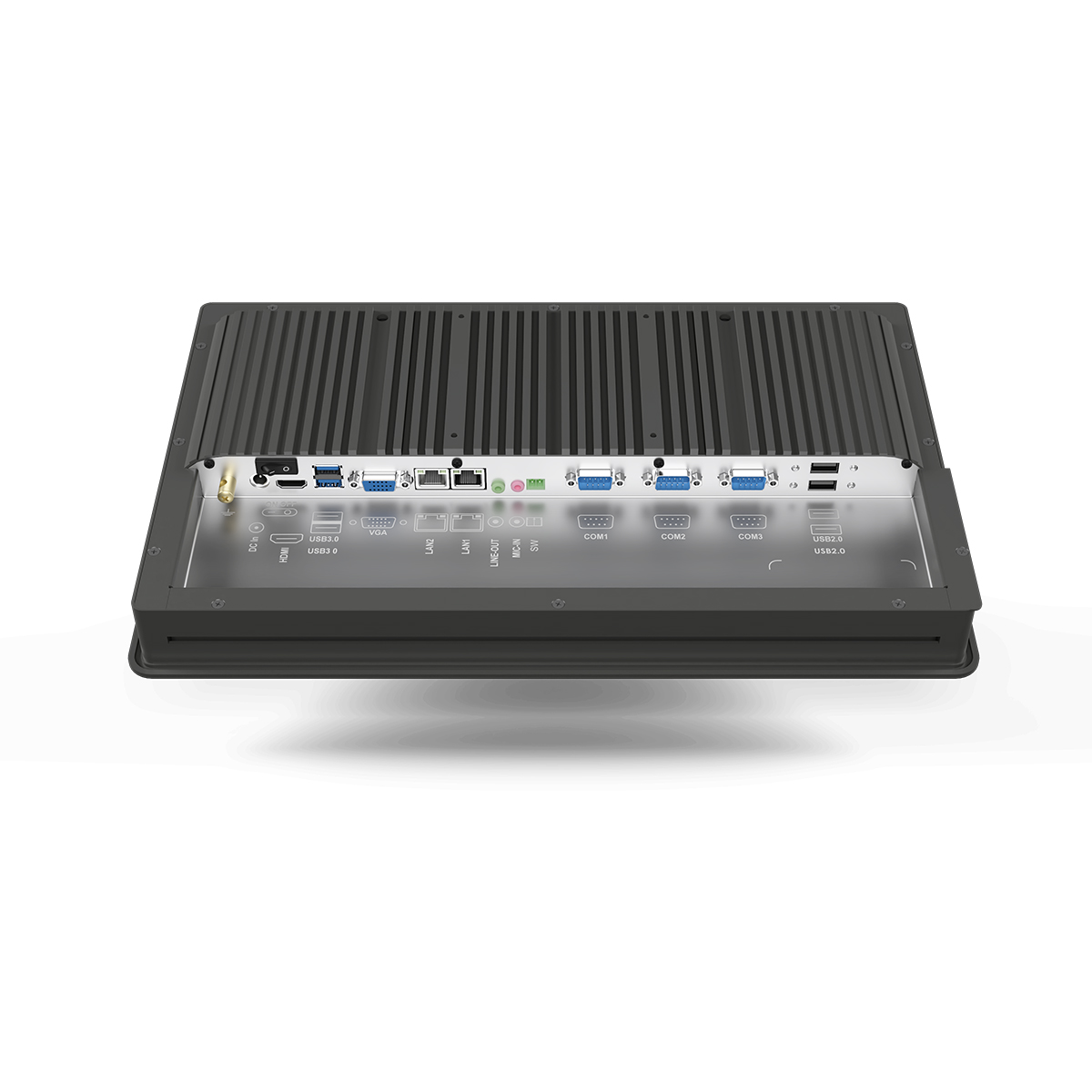

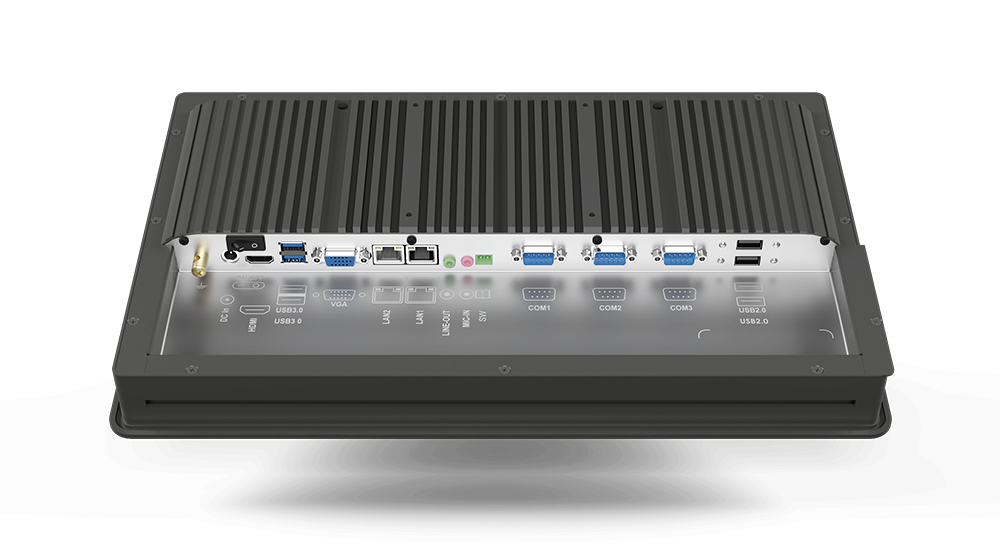

Rich I/O and
 Enhanced Connectivity

E-Life EPC-616 G2 has rich I/O port structure including 3xRS232, 2xGibabit LANs, 2xUSB 2.0, 2x USB 3.0 and a remote ON/OFF switch connector to provide easy operation in case device was panel mounted in a housing. In addition to all these features, 9~36V Wide Range DC power input of EPC-616 G2 makes it a flexible and functional Panel PC solution for many industrial applications

E-Life EPC-618 Panel PC

Easy Integration with
 Flexible Mounting Options

Besides of all enhanced design and technical features, EPC-616 G2 provides flexible mounting and stand options to support different applications at field. EPC-616 G2 has special panel mount fixtures and a silicon gasket around front frame to provide a secure panel mount on customized chassis and housings. In addition, EPC-616 G2 has optional desktop and floor stands and a wall mount bracket provide easy integration in any location.

CE Certified

E-Life EPC-616 G2 Panel PC is designed and produced by our company. CE conformity has been certified by the tests within the scope of European Union New Approach Directives.

E-Life EPC-618 Panel PC
Category:
Brands:: E-LIFE
Model  E-Life EPC-616 G2 Panel PC
Processor  Intel® Celeron J4125 Quad Core 2.00 GHz, 4 MB Cache
RAM  Standard 4 GB DDR4 2400 MHz (Maks. 8GB)
SSD  Standard 64 GB M.2 SATAIII SSD 128 GB – 1 TB M.2 SSD SATAIII Options
Display  15.6” TFT LCD
Resolution  1920 x 1080
Brightness  400 cd/m2
Contrast  1000:1
LCD Viewing Angle (H/V)  160°/140°
Touch Screen  Projected Capacitive, 5-Points Multi-Touch, Glove Support*
Serial Ports  3 x RS232
USB  2 x USB 2.0 and 2 x USB 3.0
LAN  2 x Realtek RTL8111H Gigabit Ethernet
Display Output  VGA + HDMI
Graphics Card  Intel® HD Graphics
Audio  On board ALC897 High Definition Audio
Wi-Fi  Optional, IEEE 802.11 b/g/n, 5 dBi Wi-Fi Antenna
Expansion Slot  1 x Mini-PCIe
PC Power Supply  12V/5A DC Adaptör
Power Input  9~36V DC
Chassis  Extruded Aluminum
Mounting Options  VESA 100 x 100

Optional Panel Mount Kit

Optional Desktop and Kiosk Type Stands

Optional Wall Mount Kit
Operating Temperature  0 ~ 60 °C
Dimensions  407 x 255 x 53 mm
Weight  ~ 5 Kg.
Operating Systems Support  Windows 10 Pro, Windows 10 IoT, Windows 11



Technical specifications may be changed by Noya Dijital Dönüşüm Teknolojileri A.Ş at any time without prior notice or explanation to the user.

*Touch Screen glove support is valid for Latex, PVC, Nitrile and PU gloves
