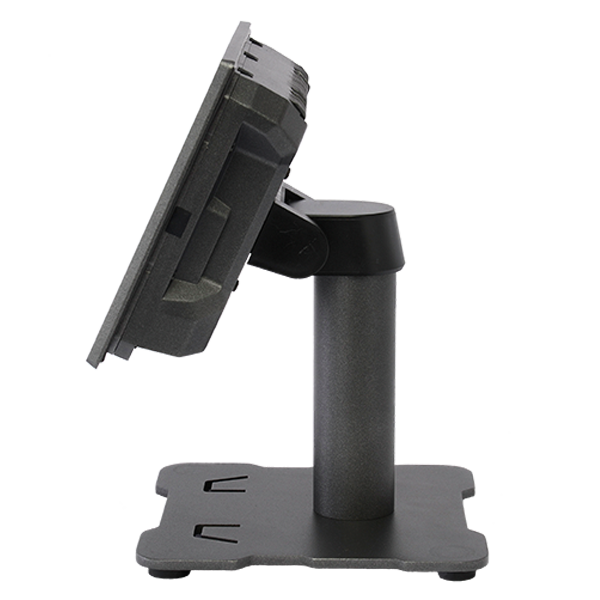

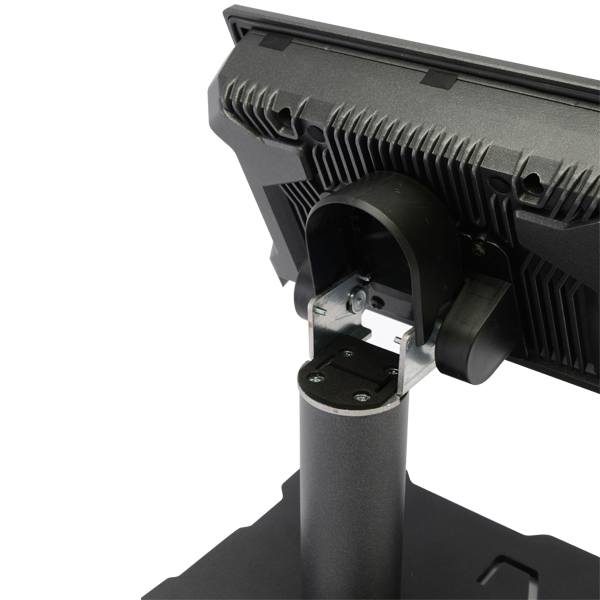

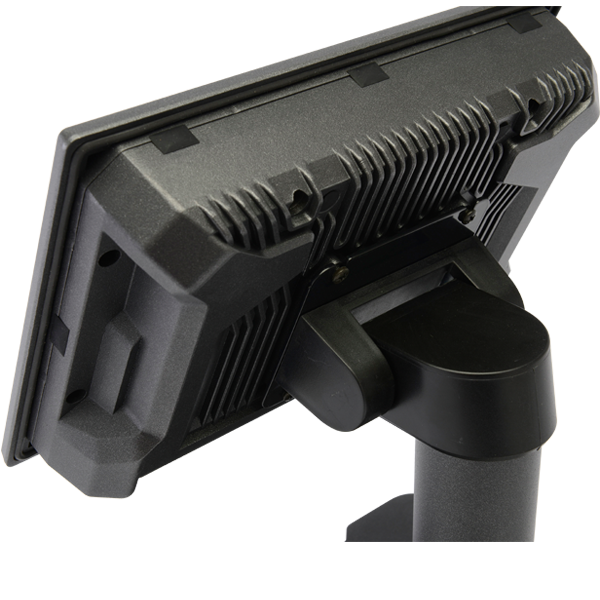

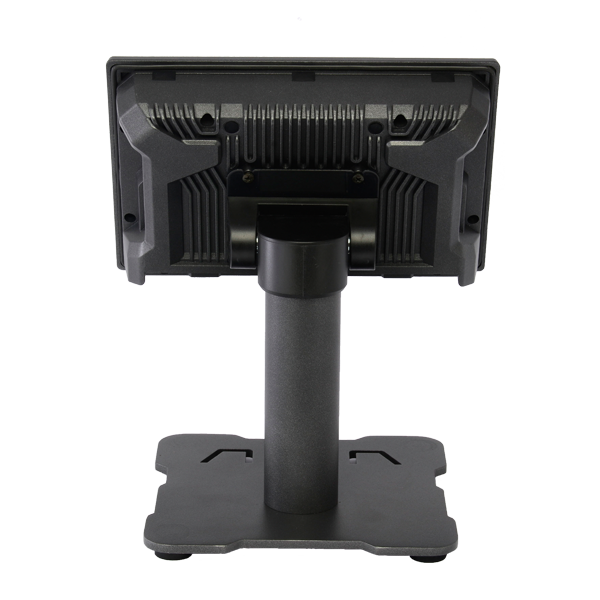

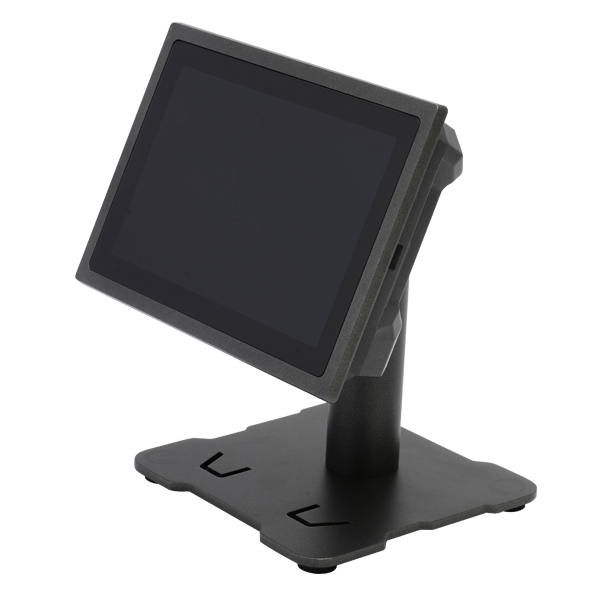

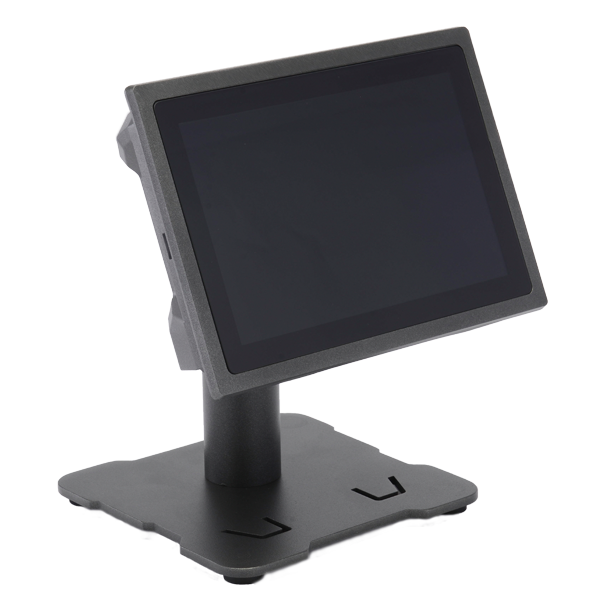

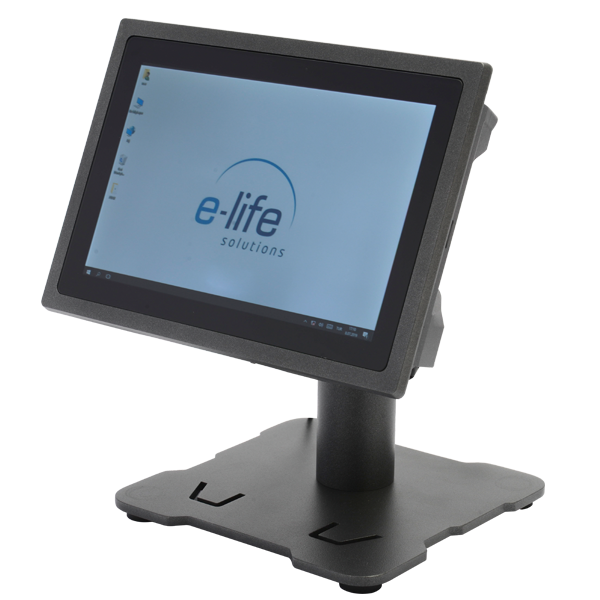

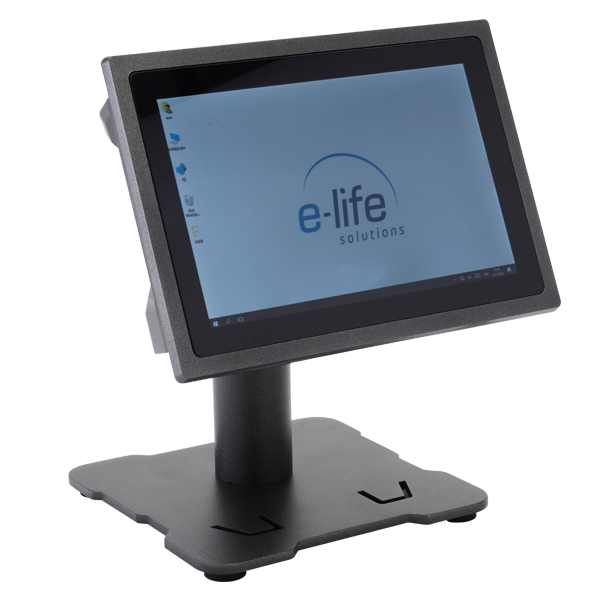

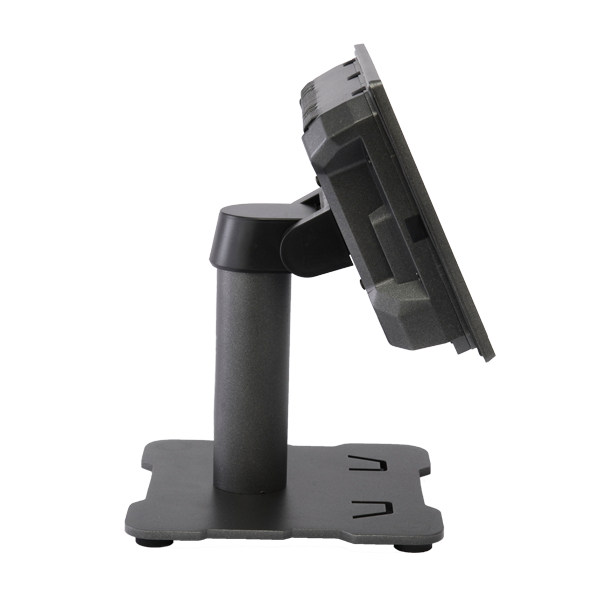

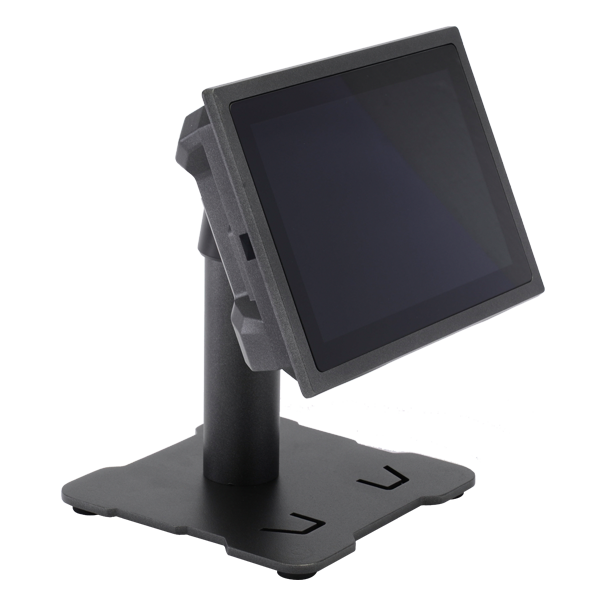

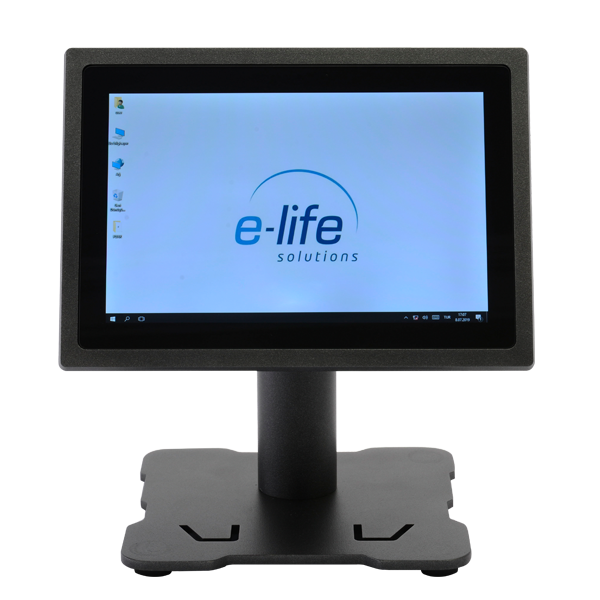

E-Life EPC-410 G2 Panel PC
New EPC-410 G2 is a cost effective and compact Panel PC for your Industry 4.0, IoT, Automation and Digital Transformation project with its new generation Quad Core Intel Embedded Processor, rich I/O and robust aluminum die casting chassis.
- Intel Celeron J4125 2.00 GHz Quad Core Processor
- Durable and Stylish Aluminum Die Cast Chassis
- 10.1″ IPS LCD with 430 cd/m2 Brightness
- Optical Bonding Technology on Display
- Multi-Touch Projected Capacitive Touch Screen
- Glove Support on PCAP Touch
- 2 x Gigabit Ethernet
- 2 x RS232
- 2 x USB 3.0
- 8 Bit Digital I/O
- 9~36V Wide Range DC Input
- Remote Power Switch Connector
- IK08 Impact Resistance Certified Touch Screen Display
Higher Performance with New
Generation Processor
Combining the advantages of newest generation Intel Celeron J4125 Quad Core processor and DDR4 2400MHz memory technology, new EPC-410 G2 offers much higher performance for all applications.
Best Choice for
Your Projects
With all these enhanced features, stylish and compact design, EPC-410 G2 is an ideal solution for many different applications like industrial automation, HMI, Machinery Control, IoT, Industry 4.0, Smart Factories, Smart Building and Smart Retail.
E-LIFE
EPC-410 G2
PANEL PC
PROCESSOR
Intel Celeron J4125
SCREEN
10.1” PCAP
SCREEN
Multi-Touch
SCREEN
Optical Bonding
PORT
Dual LAN
BODY
Durable Aluminum
Compact Yet Powerful
EPC-410 G2 is compact member of new E-Life EPC Panel PC family which is developed to support all applications requires a rugged and compact Panel PC. Like all EPC Series Panel PCs, EPC-410 is also developed with our long-term design experience and market feedback since 2004 that we released our first Panel PC as Turkey’s first original design Panel PC manufacturer.
Optical Bonding Technology
Yüksek for High Image Quality and Durability
New EPC-410 G2 has a special 10.1” LCD Display with Optical Bonding Technology and 430 cd/m2 brightness to ensure smooth user experience with high durability and clear images in all industrial environments. Optical Bonding Technology is a special process of laminating cover glass, touch sensor and LCD with a special optical adhesive which eliminates air gap between touch screen and LCD Panel. Displays with Optical Bonding Technology provides high durability and ruggedness against both impacts and severe environmental conditions like dust, humidity and liquids as well as high visibility under bright ambient conditions due to eliminated internal reflection between touch screen and LCD.
EPC-410 G2 has an Optical Bonded PCAP Touch Screen Display by laminating a specially designed 4 mm PCAP Touch Sensor with a 10.1” IPS LCD Panel. Thus EPC-410 G2 is suitable to be deployed at most severe industrial environments with its 10.1” rugged and high sensitivity touch screen with glove support.
Rich I/O Makes Your
Connections Easier
EPC-410 G2 has rich I/O port structure including 1xRS232, 2xGibabit LANs, 2x USB 3.0, Digital I/O and a remote ON/OFF switch to provide easy operation in case device was panel mounted in a housing. In addition to all these features, 9~36V Wide Range DC power input of EPC-410 G2 makes it a flexible and functional Panel PC solution for many industrial applications
Easy Integration with
Flexible Mounting Options
Besides of all enhanced design and technical features, EPC-410 G2 provides flexible mounting and stand options to support different applications at field. EPC-410 G2 has special panel mount fixtures and a silicon gasket around front frame to provide a secure panel mount on customized chassis and housings. In addition, EPC-410 G2 has optional desktop and floor stands and a wall mount bracket provide easy integration in any location.
CE Certified
E-Life EPC-410 G2 Panel PC is designed and produced by our company. CE conformity has been certified by the tests within the scope of European Union New Approach Directives.
| Model | E-Life EPC-410 G2 Panel PC |
| Processor | Intel® Celeron J4125 Quad Core 2.00 GHz, 4 MB Cache |
| RAM | Standard 4 GB DDR4 2400 MHz (Maks. 8GB) |
| SSD | Standard 64 GB M.2 SATAIII SSD
128 GB – 1 TB M.2 SSD SATAIII Options |
| Display | 10.1” IPS LCD – Optical Bonding Technology |
| Resolution | 1280 x 800 |
| Brightness | 430 cd/m2 |
| Contrast | 800:1 |
| LCD Viewing Angle (H/V) | 170°/170° |
| Touch Screen | Projected Capacitive, 5-Points Multi-Touch, Glove Support* |
| Serial Ports | 2 x RS232 (Optional 4 x RS232 with DIO Port Replacement) |
| USB | 2 x USB 3.0 |
| LAN | 2 x Realtek RTL8111F Gigabit Ethernet |
| Digital I/O | 4 IN, 4 OUT Digital I/O, RJ48 |
| Display Output | VGA + HDMI |
| Graphics Card | Intel® HD Graphics |
| Audio | On board ALC897 High Definition Audio |
| Wi-Fi | Optional, IEEE 802.11 b/g/n, 5 dBi Wi-Fi Antenna |
| Expansion Slot | 1 x Mini PCIe |
| PC Power Supply | 12V/5A DC Adaptor |
| Power Input | 9~36V DC |
| Chassis | Aluminum Die Cast |
| Mounting Options | VESA 75 x 75
Optional Panel Mount Kit Optional Desktop and Kiosk Type Stands Optional Wall Mount Kit |
| Operating Temperature | 0 ~ 60 °C |
| Dimensions | 270 x 190 x 59 mm |
| Weight | 2 Kg. |
| Certificates | CE, IK08 |
| Operating Systems Support | Windows 10 Pro, Windows 10 IoT, Windows 11 |
Technical specifications may be changed by Noya Dijital Dönüşüm Teknolojileri A.Ş at any time without prior notice or explanation to the user.
*Touch Screen glove support is valid for Latex, PVC, Nitrile and PU gloves
-
