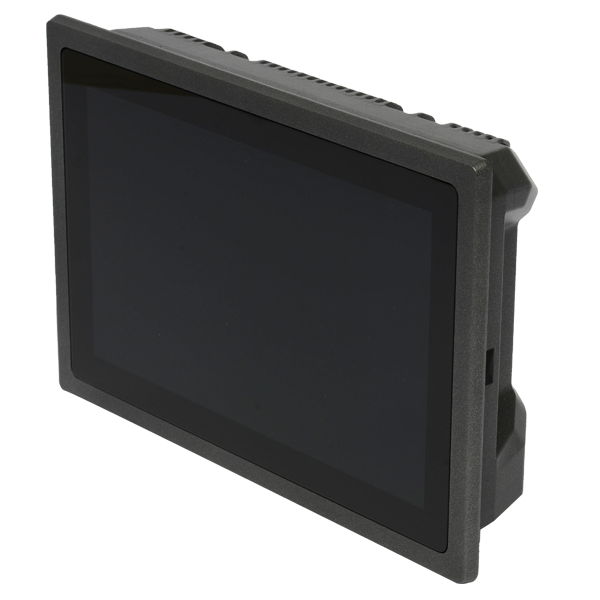

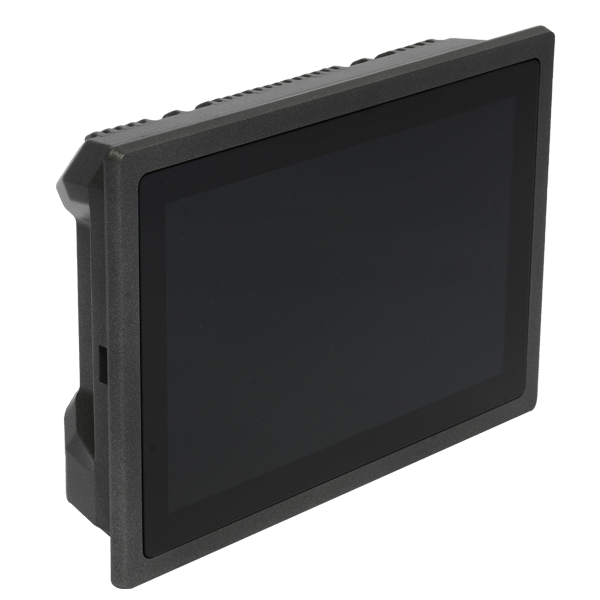

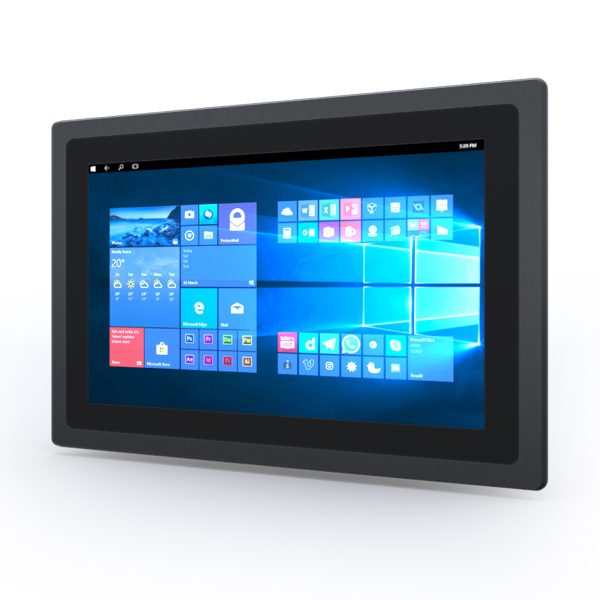

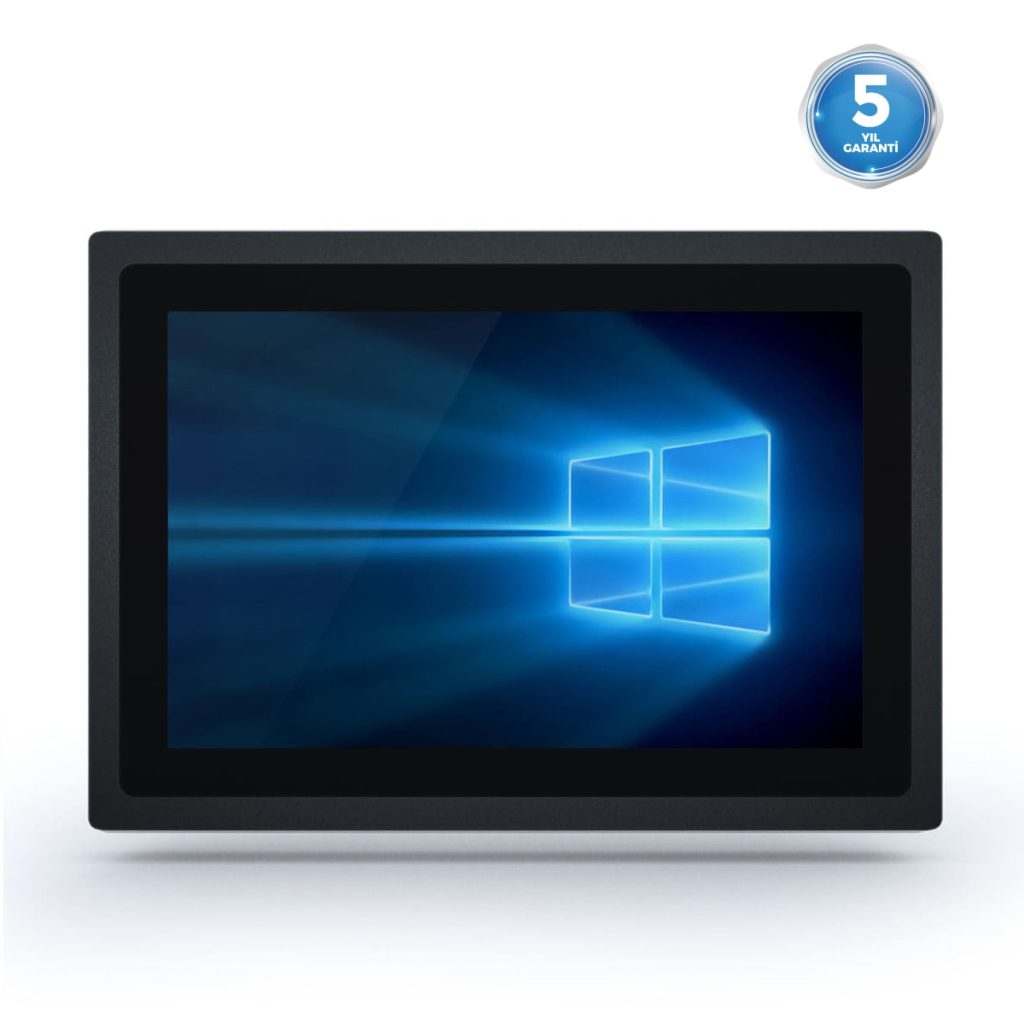

E-Life EPC-410 G3 Panel PC
With its next-generation high-performance processor and rugged build, the E-Life EPC-410 G3 is the perfect solution for your automation and digital transformation projects. Its compact and robust design combines superior performance and durability, supporting your business processes with confidence.
-
- Intel N97 3.60 GHz Quad-Core Next-Generation Processor
- Standard 128GB NVMe SSD Drive

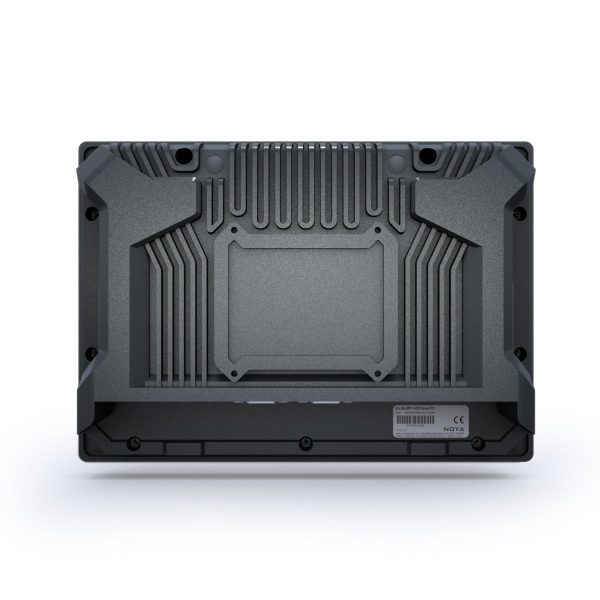

- Next-Generation Sleek Design and Fanless Architecture
- Rugged Aluminum Injection Body
- 10.1” Industrial LCD Screen with 430 cd/m² Brightness
- Multi-Touch Projected Capacitive Touchscreen
- Optical Bonding Technology for Touchscreen
- 2 Gigabit Ethernet Ports (1Gbe + 2.5Gbe)
- 2 RS232 Ports
- 1 USB 3.0, 1 USB 2.0
- 9~36V DC Power Input
- Remote Power Switch Socket
A Next-Generation Solution for
Your Compact and Rugged Panel PC Needs
With its next-generation high-performance processor and rugged build, the E-Life EPC-410 G3 is the perfect solution for your automation and digital transformation projects. Its compact and robust design combines superior performance and durability, supporting your business processes with confidence.
Compact and
Advanced
The new EPC-410 G3 delivers much higher performance with its next-generation Intel N97 Quad-Core processor. Its compact design features advanced I/O options and a 10.1” Projected Capacitive Touchscreen, adding extra power to your digital transformation and automation projects.
E-LIFE
EPC-410 G3
PANEL PC
PROCESSOR
N97
SCREEN
10.1” PCAP
SCREEN
Multi-Touch
SCREEN
Optical Bonding
PORT
Dual LAN
BODY
Durable Aluminum
Much Higher Performance
Equipped with the advanced Intel N97 processor, the E-Life EPC-410 G3 efficiently handles even the most demanding industrial applications with its quad-core architecture running at 3.60 GHz. With up to 16 GB DDR4 3200 MHz memory and PCIe x2 Gen3 NVMe SSD technology, it ensures fast data access, accelerating your operational processes and maximizing efficiency.

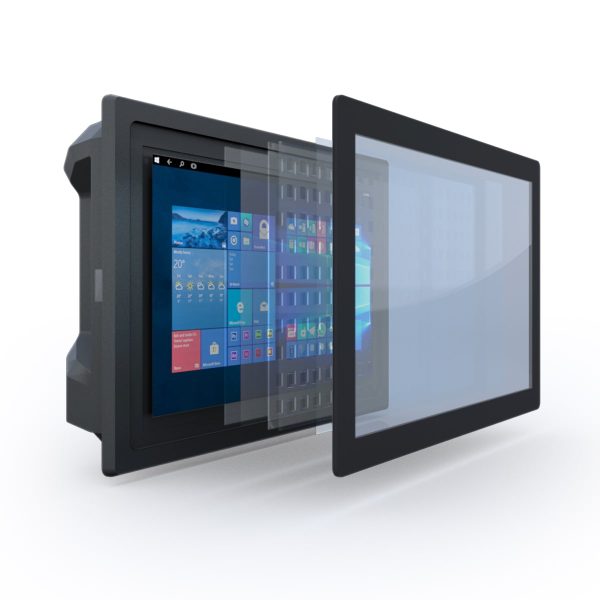

Seamless Visual and
Touch Experience with Optical Bonding
The EPC-410 G3 takes touchscreen performance to a new level with Optical Bonding Technology. The 10.1” Projected Capacitive Touchscreen delivers tablet-level precision and speed while perfectly combining display quality and durability.
This innovative technology bonds the specially designed PCAP Touch Panel to the IPS LCD Panel using a special optical adhesive, eliminating the air gap between them. The result? A significant increase in brightness, contrast, and durability, providing a flawless display and touch experience.

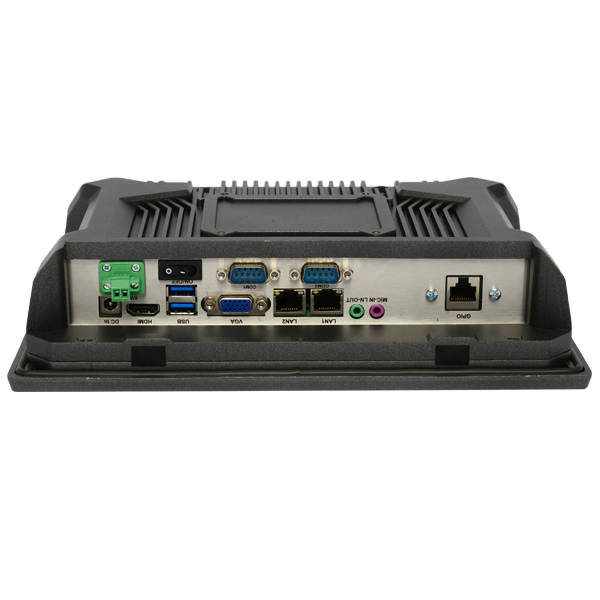

Unlimited
Connectivity

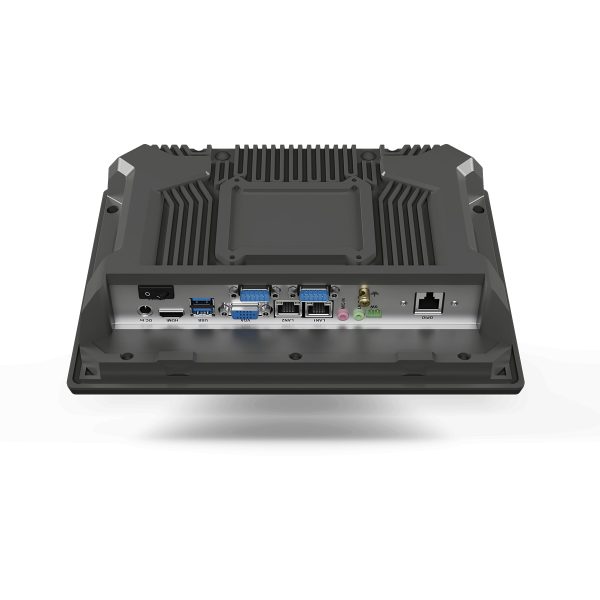

Despite its compact design, the E-Life EPC-410 G3 Panel PC fully meets field connectivity needs. It includes 2 RS232 ports, 1 USB 3.0, and 1 USB 2.0 port. Additionally, it offers an optional Digital I/O port for device integration. With a Mini PCIe expansion slot, users can adopt various wireless communication technologies. The 9~36V DC wide voltage range provides unmatched flexibility in automation applications, ensuring full compatibility with project requirements.
Easy Installation and
Fast Integration
Designed for quick deployment in partner and customer projects, the EPC-410 G3 allows seamless integration with mounting options suitable for panel installations. Optional desktop stands and wall-mount brackets aim to provide rapid and hassle-free solutions for different needs.
CE Certified
E-Life EPC-410 G3 Panel PC is designed and produced by our company. CE conformity has been certified by the tests within the scope of European Union New Approach Directives.
| Model | E-Life EPC-410 G3 Panel PC |
| Processor | Intel® Processor N97, Quad Core 3.60 GHz, 6 MB Intel® Smart Cache |
| RAM | Standard 4 GB DDR4 3200 MHz (Max. 16GB) |
| SSD | 128 GB M.2 PCIe x2 Gen3, NVMe SSD (256GB-2 TB M.2 PCIe x2 Gen3, NVMe SSD Options) |
| Display | 10.1” IPS LCD – Optical Bonding Technology |
| Resolution | 1280 x 800 |
| Brightness | 430 cd/m2 |
| Contrast | 800:1 |
| LCD Viewing Angle (H/V) | 170°/170° |
| Touch Screen | Projected Capacitive, 5-Points Multi-Touch, Glove Support* |
| Serial Ports | 2 x RS232 (RS485 support available) |
| USB | 1 x USB 3.0 and 1 x USB 2.0 |
| LAN | 1 x Intel i226 2.5Gbe Ethernet, RJ45 1 x Intel i210AT 1GBe Ethernet, RJ45 |
| Digital I/O | Optional 4 Input, 4 Output Digital I/O |
| Display Output | VGA + HDMI |
| Graphics Card | Intel® HD Graphics |
| Sound Card | Realtek® 5.1 channel HDA Codec, 5W/4Ω Amp Output |
| Wi-Fi | Optional Wi-Fi Modules – Intel IEEE 802.11 b/g/n/ac, Dual Band, WiFi+Bluetooth, 5 dBi Wi-Fi Antenna – Intel® Wi-Fi 6E AX210 WiFi+Bluetooth 5.3, 5 Dbi Antenna |
| Expansion Slot | 1 x M.2 E-Key 2230, PCIe x1+USB2.0, Wi-Fi + Bluetooth Adapters 1 x M.2 B-Key 3042, USB3.0+USB2.0, 5G/4G Support |
| PC Power Supply | 112V/5A DC Adapter |
| Power Input | 9~36V DC |
| Chassis | Aluminum Injection, Electrostatic Powder Coating |
| Mounting Options | VESA 75 x 75 Mounting Holes |
| Optional Panel Mount Kit | Optional Desktop Stand Optional Wall Mount Stand |
| Operating Temperature | 0 ~ 60 °C |
| Dimensions | 270 x 190 x 59 mm |
| Weight | 2 Kg. |
| Operating Systems Support | Windows 10/11 IoT, Windows 10/11 Pro, Linux |
| Certificates | CE, IK08 |
| Warranty | 5 Years |
Noya Digital Transformation Technologies Inc. may change specifications without prior notice.
*Glove support is valid for gloves made from Latex, Nitrile, PVC, and PU materials.
-
