E-Life EPC-415 G2 Panel PC

EPC-415 G2 is a cost effective and reliable hardware solution for your Industry 4.0, IoT, Automation and Digital Transformation project with its Quad Core Intel Embedded Processor, rich I/O and robust aluminum die casting chassis.

  • Intel Celeron J6412 2.00 GHz Quad Core Processor
  • Durable and Stylish Aluminum Die Cast Chassis
  • 15″ Industrial Grade LCD with 350 cd/m2 Brightness
  • Multi-Touch Projected Capacitive Touch Screen
  • Glove Support on PCAP Touch
  • 2 x Gigabit Ethernet
  • 3 x RS232 and 1 x RS485
  • 4 x USB 3.2 and 2 x USB 2.0
  • Remote Power Switch Connector

E-Life EPC-415 G2 New Generation Industrial Panel PC
 is ready to join your projects

Generation 2 of first member of our E-Life EPC Series, EPC-415 G2 Panel PC, is upgraded version of our first model which developed with long-term design experience and market feedback since 2004 that we released our first Panel PC as Turkey’s first original design Panel PC manufacturer.

New E-Life EPC-415 G2 is offering high performance Celeron J6142 Quad-Core processor, 15” Projected Capacitive (PCAP) Touch Screen and rich I/O ports in a robust but stylish aluminum die cast chassis.

Higher Performance with New
 Generation Processor

Combining the advantages of newest generation Intel Celeron J6412 Quad Core processor and DDR4 3200MHz memory technology up to maximum 32GB memory, new EPC-415 G2 offers much higher performance for all applications.

E-LIFE
EPC-415 G2
PANEL PC

PROCESSOR
Intel Celeron J6412

SCREEN
Multi-Touch PCAP

PORT
Dual LAN

PORT
3 x RS232

USB
6 x USB

BODY
Durable Aluminum

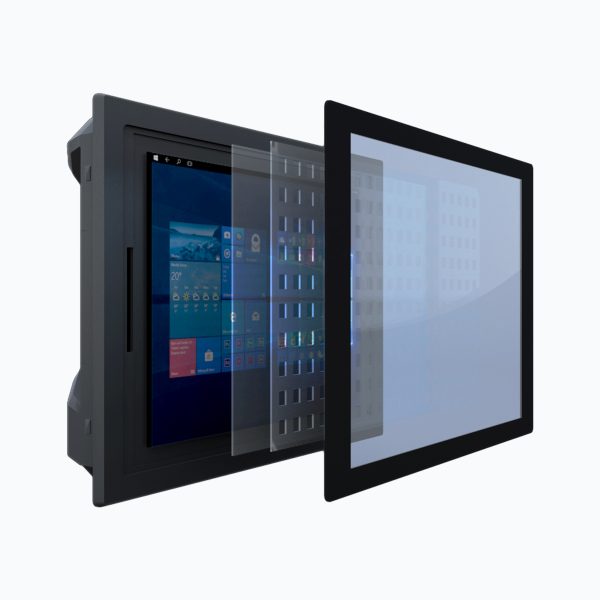

High Quality and Durable PCAP Touch
 with Glove Support

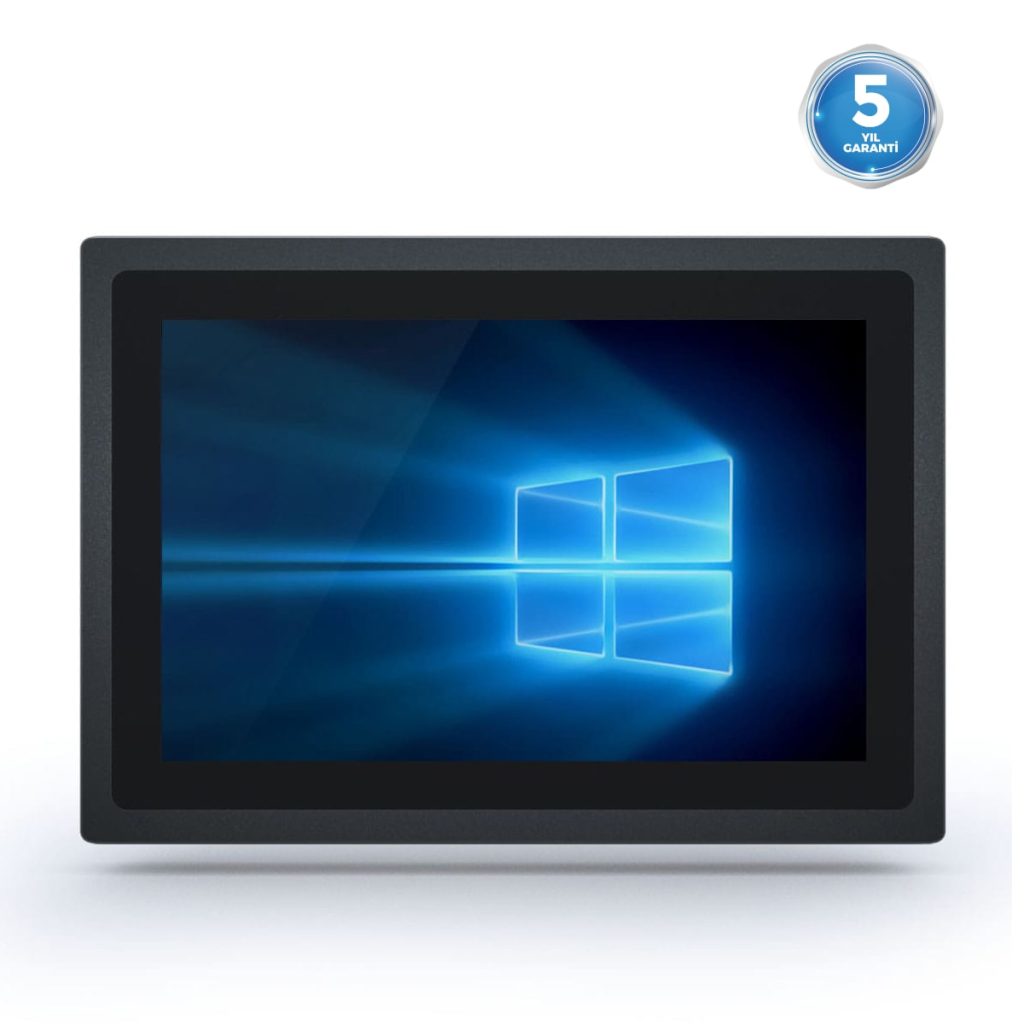

EPC-415 G2 has industrial grade 15” TFT LCD Display with 350 cd/m2 brightness to ensure smooth user experience in all industrial environment as well as its specially designed Projected Capacitive Touch Sensor with 4 mm total thickness to provide durability and sensitivity during operation. EPC-415 G2’s Projected Capacitive sensor provides glove support to ensure seamless touch screen experience at all environments.

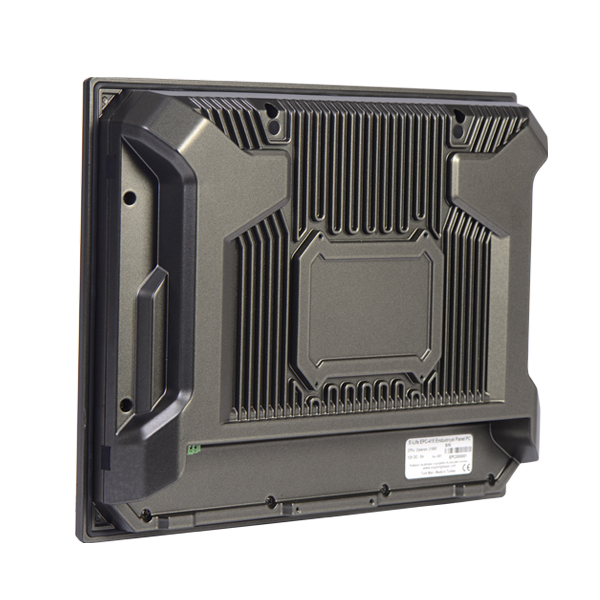

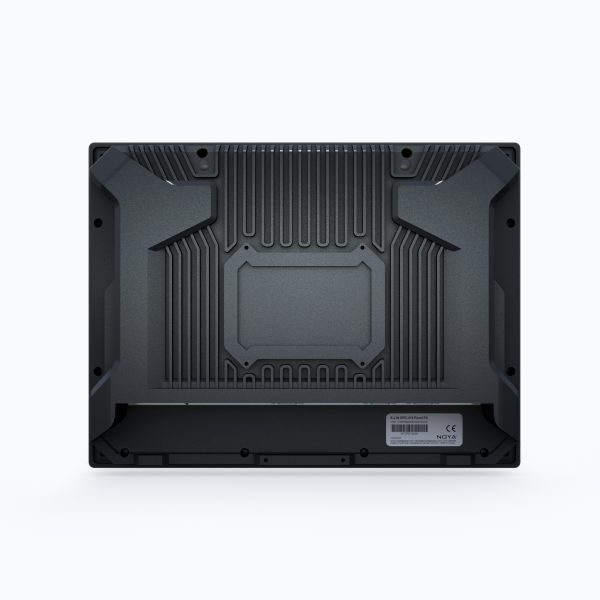

Stylish and Rugged
Aluminum Die Cast Chassis

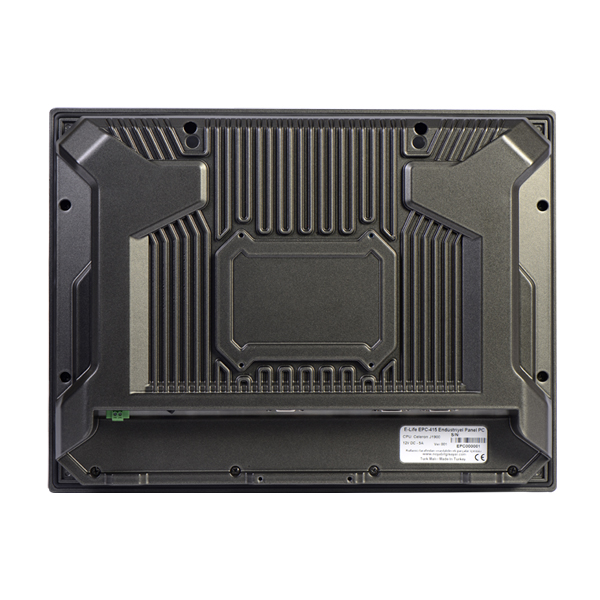

E-Life EPC-415 G2 has a unique aluminum die cast chassis with a stylish design and rugged structure. This ensures EPC-415 G2 will work on harsh industrial environments without any interruption.

epc-415-panelpc-05

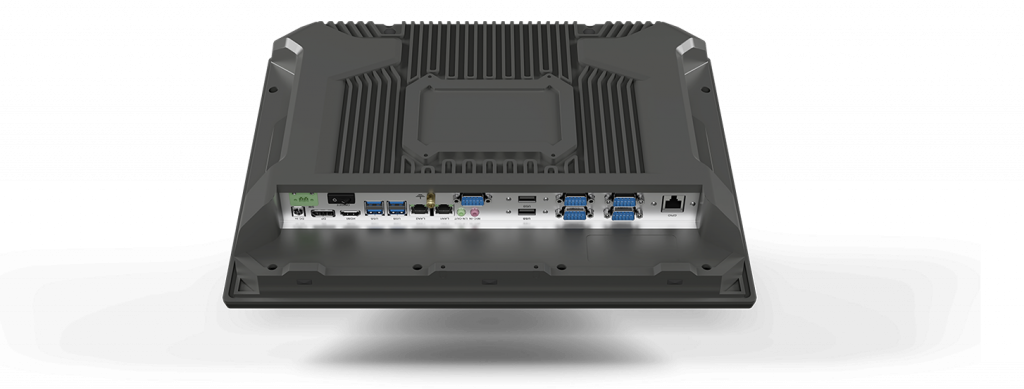

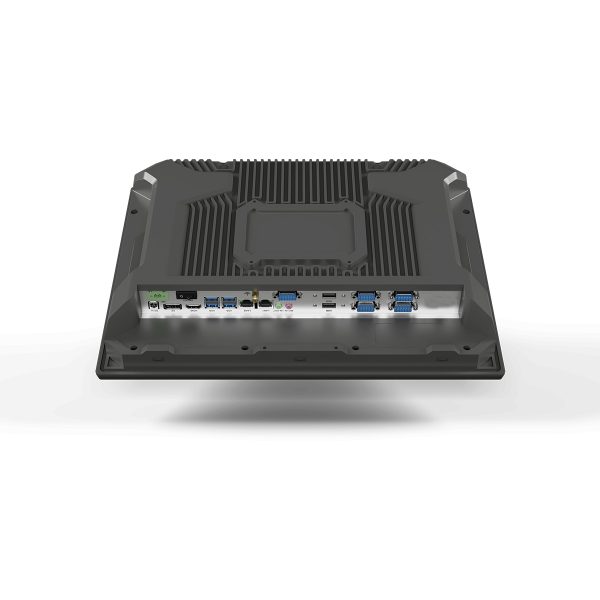

Rich I/O Makes
 Your Connections Easier

EPC-415 G2 has rich I/O port structure including 4 x RS232, 4 x USB 3.2, 2 x USB 2.0, 1 x RS485 and 1 x GPIO to provide easy operation in case device was panel mounted in a housing. All these features make EPC-415 G2 is a flexible and functional Panel PC solution for many applications.

Easy Integration with
 Flexible Mounting Options

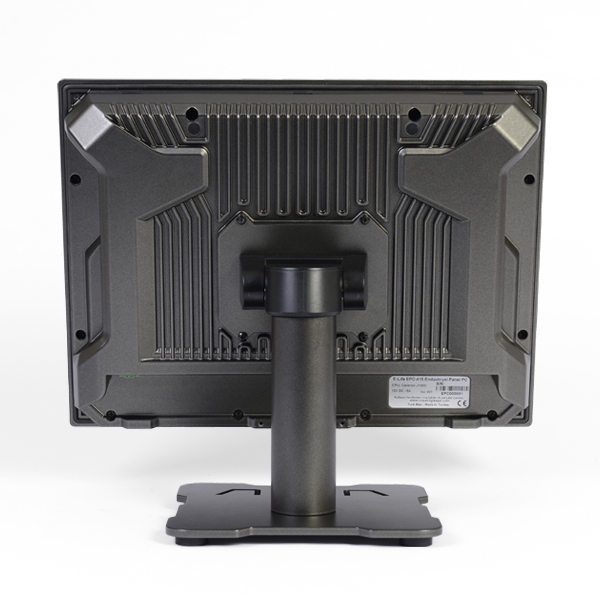

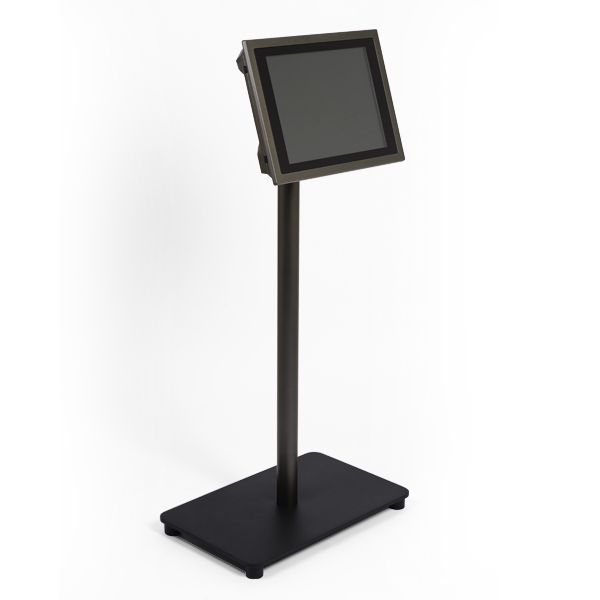

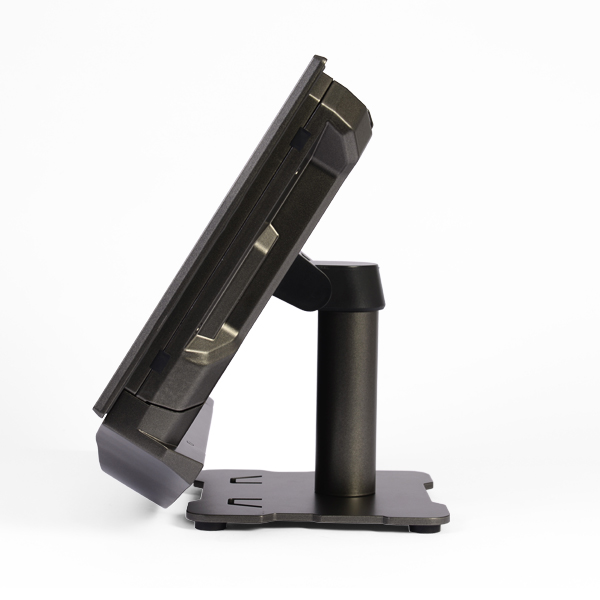

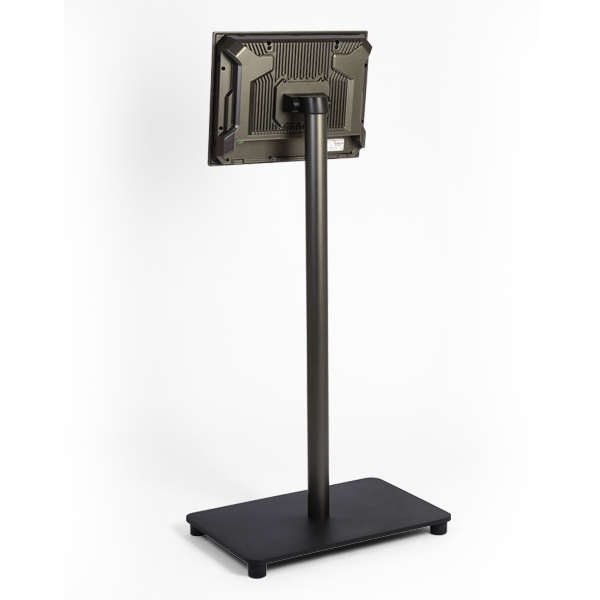

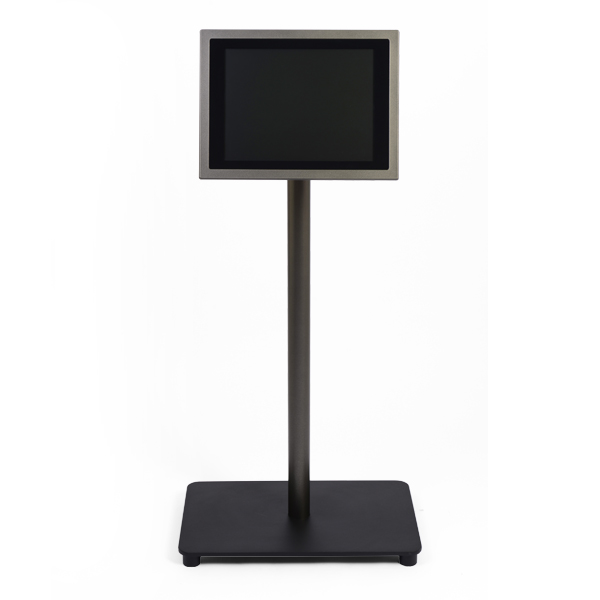

Besides of all enhanced design and technical features, EPC-415 G2 provides flexible mounting and stand options to support different applications at field. EPC-415 G2 has special panel mount fixtures and a silicon gasket around front frame to provide a secure panel mount on customized chassis and housings. In addition, EPC-415 G2 has optional desktop and floor stands and a wall mount bracket provide easy integration in any location.

epc-15-panelpc-03

Best Choice
 For Your Projects

With all these enhanced features, stylish and compact design, EPC-415 G2 is an ideal solution for many different applications like industrial automation, HMI, Machinery Control, IoT, Industry 4.0, Smart Factories, Smart Building and Smart Retail.

CE Certified

E-Life EPC-415 G2 Panel PC is designed and produced by our company. CE conformity has been certified by the tests within the scope of European Union New Approach Directives.

Category:
Brands:: E-LIFE



Model  E-Life EPC-415 G2 Panel PC
Processor  Intel® Celeron J6412 Quad Core 2.00 GHz, 1.5 MB Cache
RAM  Standard 4 GB DDR4 3200 MHz (Maks. 32GB)
SSD  Standard 64 GB M.2 SATAIII SSD

128 GB – 1 TB M.2 SSD SATAIII Options
Display  15” TFT LCD
Resolution  1024 x 768
Brightness  350 cd/m2
Contrast  1000:1
LCD Viewing Angle (H/V)  178°/178°
Touch Screen  Projected Capacitive, 5-Points Multi-Touch, Glove Support*
Serial Ports  4 x RS232 and 1x RS485
USB  4 x USB 3.2 ve 2 x USB 2.0
LAN  2 x Realtek RTL8111H Gigabit Ethernet
Digital I/O  4 IN, 4 OUT Digital I/O, RJ48
Display Output  HDMI + DP
Graphics Card  Intel® 10th Generation Processor UHD Graphics
Audio  On board ALC662 High Definition Audio
Wi-Fi  Optional, IEEE 802.11 b/g/n, 5 dBi Wi-Fi Antenna
Expansion Slot  1 x M.2
PC Power Supply  12V/5A DC Adaptor
Power Input  12V DC
Chassis  Aluminum Die Cast
Mounting Options  VESA 100 x 100

Optional Panel Mount Kit

Optional Desktop and Kiosk Type Stands

Optional Wall Mount Kit
Operating Temperature  0 ~ 60 °C
Dimensions  340.5 x 282.5 x 64 mm
Weight  5.5 Kg.
Operating Systems Support  Windows 10 Pro, Windows 10 IoT, Windows 11



Technical specifications may be changed by Noya Dijital Dönüşüm Teknolojileri A.Ş at any time without prior notice or explanation to the user.

*Touch Screen glove support is valid for Latex, PVC, Nitrile and PU gloves
