E-Life EPC-410A G2 Android Panel PC
The new E-Life EPC-410A G2 Android Panel PC is your companion in all automation and digital transformation projects requiring an Android Panel PC, thanks to its durable structure, compact design, and rich communication and connectivity features.
- RK3568, Quad-Core Cortex-A55 2.0 GHz Arm Processor
- Next-Generation Stylish Design and Fanless Architecture
- Durable Aluminum Injection Body
- 10.1″ LCD Screen with 450 cd/m² Brightness
- Multi-Touch Projected Capacitive Touchscreen
- Optical Bonding Technology on Touchscreen
- 2 Gigabit Ethernet Ports
- 3 x USB 2.0, 1 x USB 3.0/OTG
- 2 x RS232/485, 1 x RS232 2-Wire
- HDMI Display Output
- CE Certification
- 5-Year Warranty
Renewed for Those Seeking Both Android
and a Powerful Panel PC
The new E-Life EPC-410A G2 Android Panel PC is your companion in all automation and digital transformation projects requiring an Android Panel PC, thanks to its durable structure, compact design, and rich communication and connectivity features.
E-LIFE
EPC-410
ANDROID PANEL PC
İŞLEMCİ
Cortex A55 Quad Core Android 11
SCREEN
10.1” PCAP
SCREEN
Multi-Touch
SCREEN
Optical Bonding
PORT
3 x USB 2.0
BODY
Durable Aluminum
Durable and Android-Powered
The new EPC-410A G2 Android Panel PC, with its high-performance Cortex A55 Quad-Core Processor, Android 11 Operating System, advanced I/O features, and 10.1” Projected Capacitive Touchscreen, is ready to take part in all digital transformation and automation projects that require a durable Android Panel PC.
Advanced Display Technology with
Optical Bonding
Unlike similar products, the EPC-410A G2 uses Optical Bonding Technology on its LCD screen. With a 10.1” Projected Capacitive Touchscreen, it offers a tablet-level touch experience in terms of sensitivity and speed, combined with high image quality and durability.

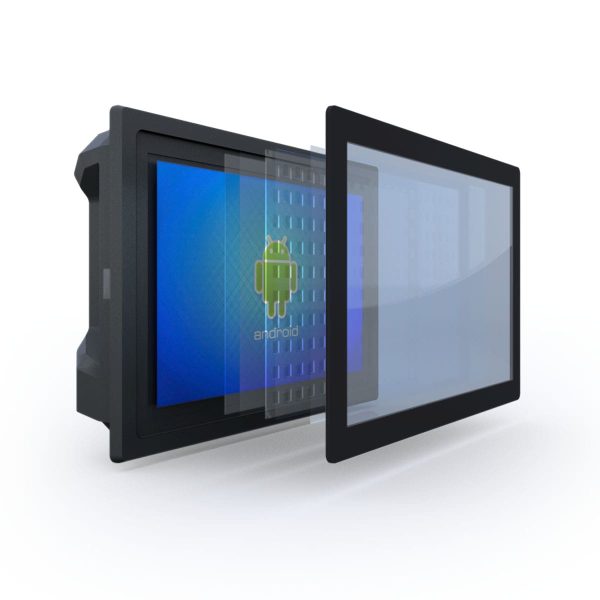

Optical Bonding technology laminates the specially designed PCAP Touch Panel with an IPS LCD Panel using a unique optical adhesive for the EPC-410A G2. After this process, the PCAP Touchscreen and LCD Panel become a single module with no air gap in between. This significantly improves both image quality and screen durability.
Advanced
Connectivity Options
Despite its compact design, the E-Life EPC-410A G2 Android Panel PC fully meets all field requirements with 3 USB 2.0 ports, 1 USB 3.0/OTG port, 2 Gigabit Ethernet ports, 2 RS232/485 ports, and 1 HDMI port. In addition, it offers Wi-Fi and optional Bluetooth wireless communication technologies, providing all the connectivity needed in the field.
Easy Installation,
Fast Integration
Designed to be quickly applied to projects by our partners and customers, the EPC-410A G2 Android is built for fast integration with mounting and stand options. Its panel mounting accessories enable quick on-site installation, while optional desktop and wall mount stands provide rapid and hassle-free solutions for different needs.
CE Certified
E-Life EPC-410A G2 Android Panel PC is designed and produced by our company. CE conformity has been certified by the tests within the scope of European Union New Approach Directives.
| Model | E-Life EPC-410A G2 Android Panel PC |
| Processor | RK3568, Quad-Core Cortex-A55 2.0 GHz |
| GPU | Mali-G52, OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Support |
| RAM | 2GB LPDDR4 |
| SSD | 16GB eMMC 5.1 |
| Display | 10.1” IPS LCD – Optical Bonding Technology |
| Resolution | 1280 x 800 |
| Brightness | 430 cd/m2 |
| Contrast | 800:1 |
| LCD Viewing Angle (H/V) | 170°/170° |
| Touch Screen | Projected Capacitive, 5-Points Multi-Touch, Glove Support* |
| Serial Ports | 2 x RS232/485, 1xRS232 2-Wire |
| USB | 3 x USB 2.0, 1 x USB 3.0/OTG |
| LAN | 2 x Gigabit Ethernet |
| Display Output | HDMI |
| Bluetooth | Optional Bluetooth 4.2, BLE Support |
| Wi-Fi | IEEE 802.11 b/g/n/ac |
| Expansion Slot | 1 x TF Card Slot, 1 x Mini-PCIe Slot, 1 x M.2 B-Key Slot, 1 x SIM Slot |
| PC Power Supply | 12V/2A DC Adapter |
| Power Input | 12V DC |
| PC Case | Aluminum Injection, Electrostatic Powder Coating |
| Mounting | VESA 75 x 75 Mounting Holes |
| Optional Panel Mount Kit | Optional Desktop Stand Optional Wall Mount Stand |
| Operating Temperature | 0 ~ 60 °C |
| Dimensions | 270 x 190 x 59 mm |
| Weight | 1,5 Kg. |
| Certificates | CE, IK08 |
| Operating System | Android 11 |
| Certifications | CE |
| Warranty | 5 Years |
Noya Digital Transformation Technologies reserves the right to change product specifications without notice.
*Glove support is valid for gloves made from Latex, Nitrile, PVC, and PU materials.
-
Panel PC Accessories
E-Life EPC AIOT-AD8R8 I/O Module
EPC-AIOT-AD8R8 I/O module, which can integrate the Digital and Analog I/O as well as programmable Relay features that can normally be used with external I/O modules in a standard Panel PC. Thus EPC Series Panel PCs offer the advantage of easy integration and fast deployments in your Industry 4.0 and Automation projects.
- 32-bit Low Power Cortex-M0 Processor
- 8 Solid State Relay Type Digital Outputs
- 8 Digital/Analog Inputs
- 5KV Isolation on Digital Outputs
- Plug-in and Compression Type Terminals for Connections
- RS232 Communication Port
- 5V DC USB Power Input
- Integrated in E-Life EPC Series Panel PC
SKU: n/a -
Panel PC Accessories
E-Life EPC-DS-01
Quickly deploy your applications with metal stand options designed for desktop use of E-Life EPC series Panel PCs in industrial environments.
- Stable metal Base
- Aluminum extruded body
- Electrostatic powder paint finish
- Plastic cover for cable management
- -10°- 45° display tilt angle
SKU: n/a -
Panel PC Accessories
E-Life EPC-KS-01
Enjoy the advantages of quick installation in the field with kiosk-type metal stand options which are specially designed for applications that require the use of E-Life EPC series Panel PCs with a kiosk-type floor stand in industrial environments.
- Stable metal Base
- Aluminum extruded body
- Electrostatic powder paint finish
- Plastic cover for cable management
- -10°- 45° display tilt angle
SKU: n/a -
Panel PC Accessories
E-Life EPC-KS-02
Enjoy the advantages of quick installation in the field with kiosk-type metal stand options which are specially designed for applications that require the use of E-Life EPC series Panel PCs with a kiosk-type floor stand in industrial environments.
- Metal Base and body
- Electrostatic powder paint finish
- Built-in cable management
- 25°- 50° display tilt angle
SKU: n/a -
Panel PC Accessories
E-Life EPC-WS-01
Increase functionality in your production area with stand options designed as Industrial Workstations for applications that require the use of E-Life EPC Panel PCs integrated with a workstation in industrial environments.
- Metal Base and body
- Space for Barcode printers
- Lockable front door for Barcode printer
- Electrostatic powder paint finish
- Built-in cable management
- -10°- 45° display tilt angle
SKU: n/a
