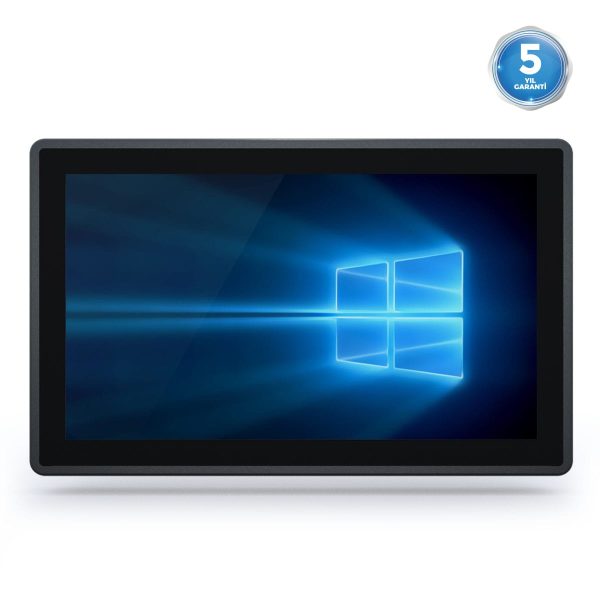

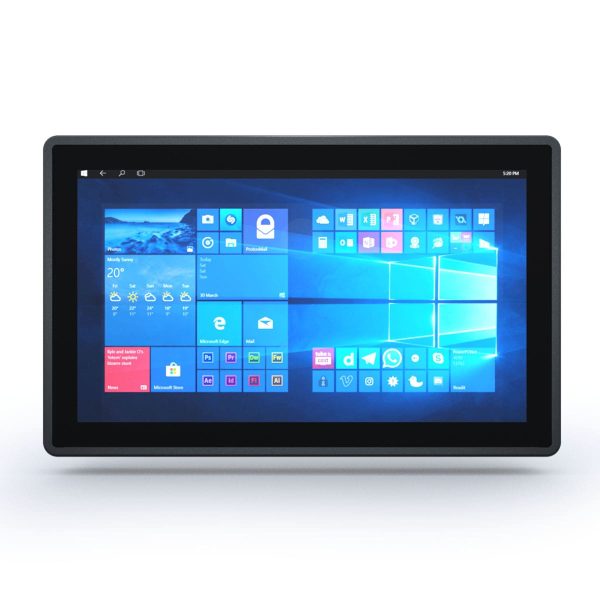

E-Life EPC-618 G2 Panel PC

New EPC-618 G2 is a cost effective and reliable wide screen industrial Panel PC solution for your Industry 4.0, IoT, Automation and Digital Transformation projects with its 18.5” HD IPS Touch Screen Display, newest generation Quad Core Intel Embedded Processor, rich I/O and robust aluminum chassis. EPC-618 G2 Wide Screen Panel PC dedicated to providing non-stop operation at industrial environments.


  • Intel Celeron J6412 2.00 GHz Quad Core Processor
  • Durable and Functional Aluminum Chassis
  • 18.5″ IPS LCD with 350 cd/m2 Brightness
  • Multi-Touch Projected Capacitive Touch Screen
  • Glove Support on PCAP Touch
  • 2 x Gigabit Ethernet
  • 3 x RS232 and 1 x RS485
  • 4 x USB 3.2 and 2 x USB 2.0
  • Remote Power Switch Connector

Higher Performance with New
Generation Processor

Combining the advantages of newest generation Intel Celeron J6412 Quad Core processor and DDR4 3200MHz memory technology up to maximum 32GB memory, new EPC-618 G2 offers much higher performance for all applications.

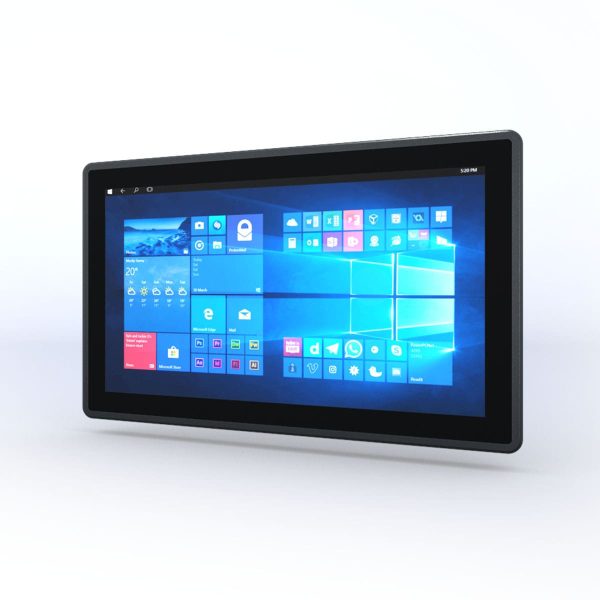

Wide Screen Comfort and Efficiency for Your
Industrial Applications

E-Life EPC-618 G2 has a wide screen IPS display with 1388×786 HD resolution which give more space for your software to contain much more data on display. This will provide a better user experience at filed and increase efficiency of your application.

E-Life EPC-618 Panel PC

E-LIFE
EPC-618 G2
PANEL PC

PROCESSOR
Intel Celeron 6412

SCREEN
Multi-Touch PCAP

SCREEN
IPS Wide Screen

PORT
3 RS232

PORT
Dual LAN

BODY
Durable Aluminum

Best Choice for Your Projects

With all these enhanced features, stylish and compact design, EPC-618 G2 is an ideal solution for many different applications like industrial automation, HMI, Machinery Control, IoT, Industry 4.0, Smart Factories, Smart Building and Smart Retail.

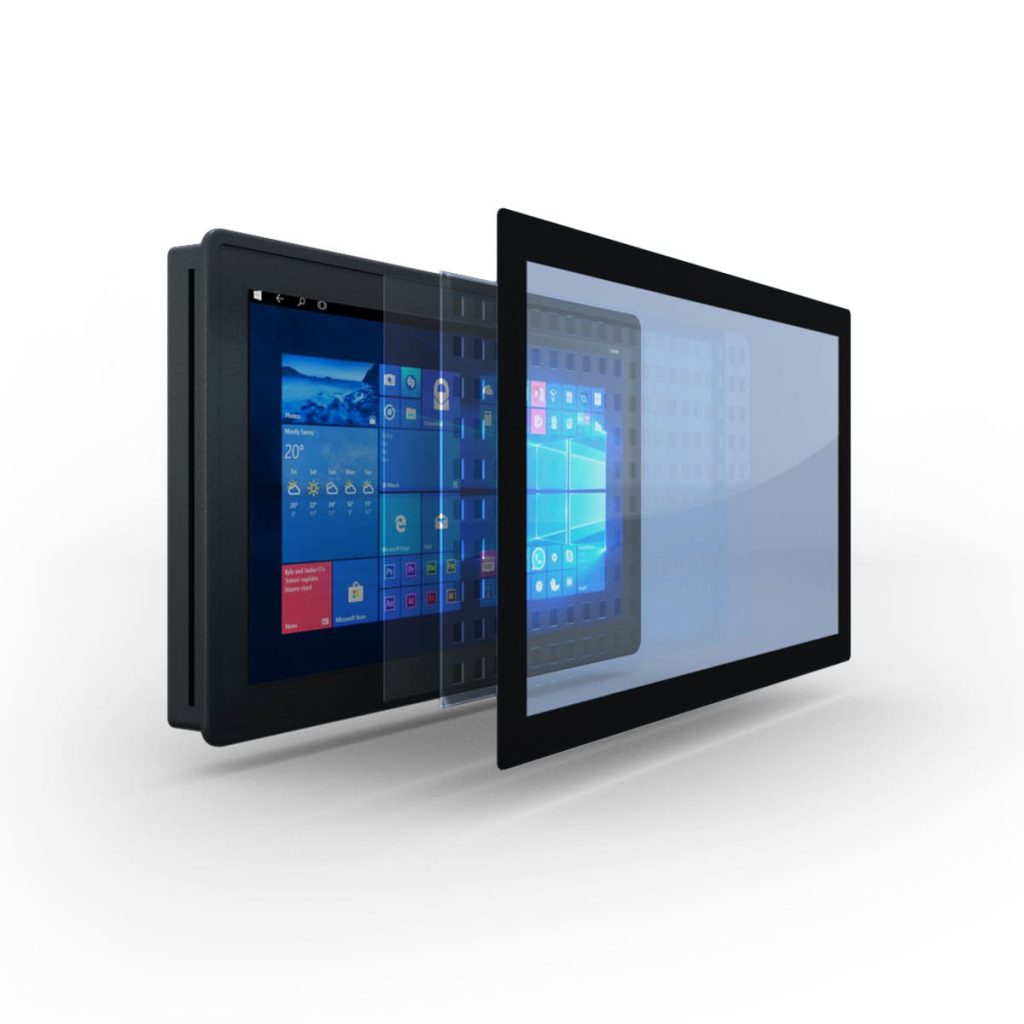

Durable Multi-Touch PCAP with
Glove Support

EPC-618 G2 has 18.5” IPS HD Display with 350 cd/m2 brightness to ensure smooth user experience in all industrial environment as well as its specially designed Projected Capacitive Touch Sensor with 4 mm total thickness to provide durability and sensitivity during operation. EPC-618 G2’s Projected Capacitive sensor provides glove support to ensure seamless touch screen experience at all environments.

E-Life EPC-618 Panel PC

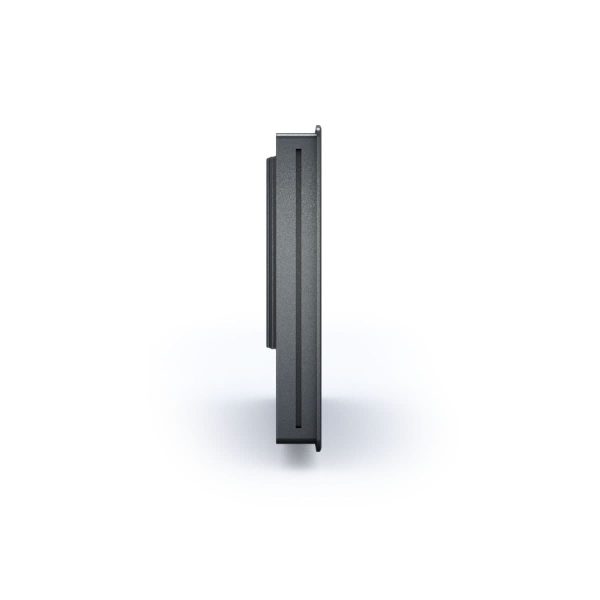

Stylish and Rugged
Aluminum Chassis

E-Life EPC-618 G2 has a unique aluminum extrusion chassis with a stylish design and rugged structure. This ensures EPC-618 G2 will work on harsh industrial environments without any interruption.

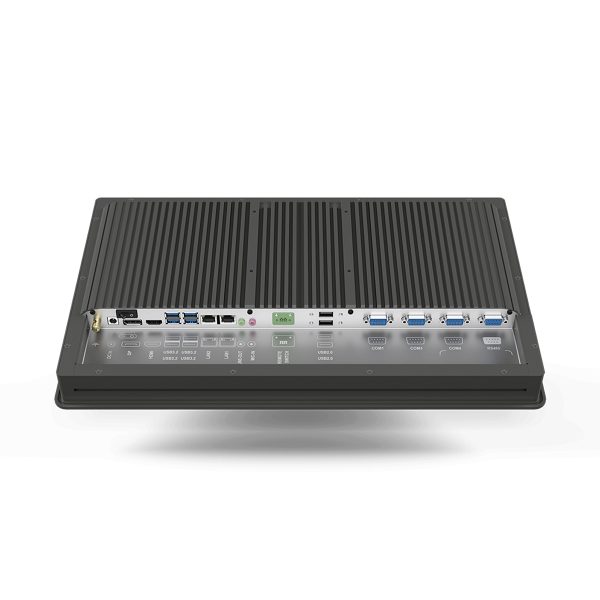

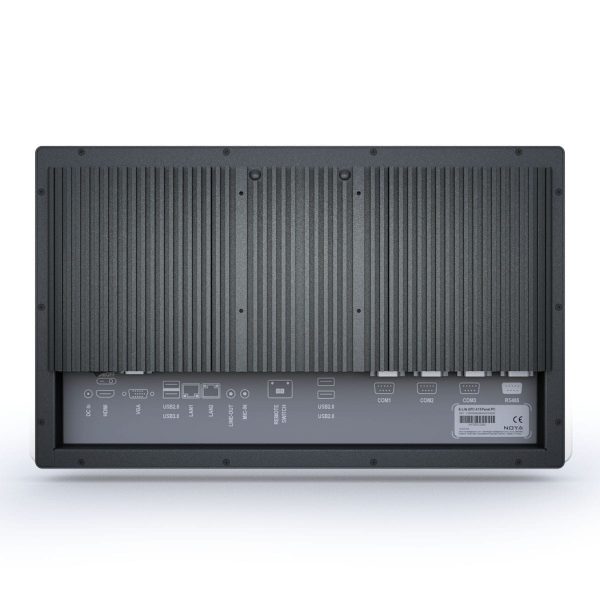

Rich I/O and
Enhanced Connectivity

E-Life EPC-618 G2 has rich I/O port structure including 3xRS232, 1xRS485, 2xGibabit LANs, 3 x USB 3.2, 2 x USB 2.0 and a remote ON/OFF switch connector to provide easy operation in case device was panel mounted in a housing. All these features make EPC-618 G2 is a flexible and functional Panel PC solution for many industrial applications

E-Life EPC-618 Panel PC

Easy Integration with
Flexible Mounting Options

Besides of all enhanced design and technical features, EPC-618 G2 provides flexible mounting and stand options to support different applications at field. EPC-618 G2 has special panel mount fixtures and a silicon gasket around front frame to provide a secure panel mount on customized chassis and housings. In addition, EPC-618 G2 has optional desktop and floor stands and a wall mount bracket provide easy integration in any location.

CE Certified

E-Life EPC-618 G2 Panel PC is designed and produced by our company. CE conformity has been certified by the tests within the scope of European Union New Approach Directives.

E-Life EPC-618 Panel PC
Category:
Brands:: E-LIFE
Model  E-Life EPC-618 G2 Panel PC
Processor  Intel® Celeron J6412 Quad Core 2.00 GHz, 1.5 MB Cache
RAM  Standard 4 GB DDR4 3200 MHz (Maks. 32GB)
SSD  Standard 64 GB M.2 SATAIII SSD

128 GB – 1 TB M.2 SSD SATAIII Options

Display  18.5” TFT LCD
Resolution  1366 x 768
Brightness  350 cd/m2
Contrast  1000:1
LCD Viewing Angle (H/V)  178°/178°
Touch Screen  Projected Capacitive, 5-Points Multi-Touch, Glove Support
Serial Ports  3 x RS232 and 1x RS485
USB  4 x USB 3.2 and 2 x USB 2.0
LAN  2 x Realtek RTL8111H Gigabit Ethernet
Display Output  HDMI + DP
Graphics Card  Intel® 10th Generation Processor UHD Graphics
Audio  On board ALC662 High Definition Audio
Wi-Fi  Optional, IEEE 802.11 b/g/n, 5 dBi Wi-Fi Antenna
Expansion Slot  1 x M.2
PC Power Supply  12V/5A DC Adaptör
Power Input  12V DC
Chassis  Extruded Aluminum
Mounting Options  VESA 100 x 100

Optional Panel Mount Kit

Optional Desktop and Kiosk Type Stands

Optional Wall Mount Kit

Operating Temperature  0 ~ 60 °C
Dimensions  474 x 294 x 52 mm
Weight  ~ 6 Kg.
Operating Systems Support  Windows 10 Pro, Windows 10 IoT, Windows 11



Technical specifications may be changed by Noya Dijital Dönüşüm Teknolojileri A.Ş at any time without prior notice or explanation to the user.

*Touch Screen glove support is valid for Latex, PVC, Nitrile and PU gloves
