Intel N95 Platform
The Intel N95 quad-core processor reaches up to 3.60 GHz; with support for up to 16 GB DDR4 3200 MHz memory it can be tailored to HMI and data acquisition applications.
1 / 8
E-Life Solutions

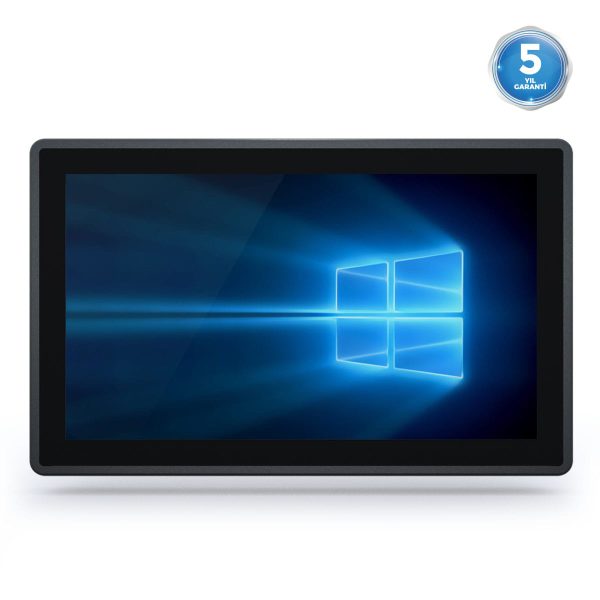

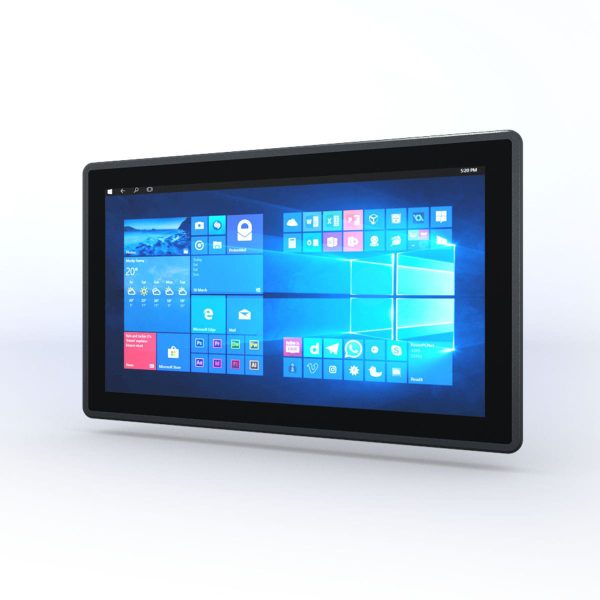

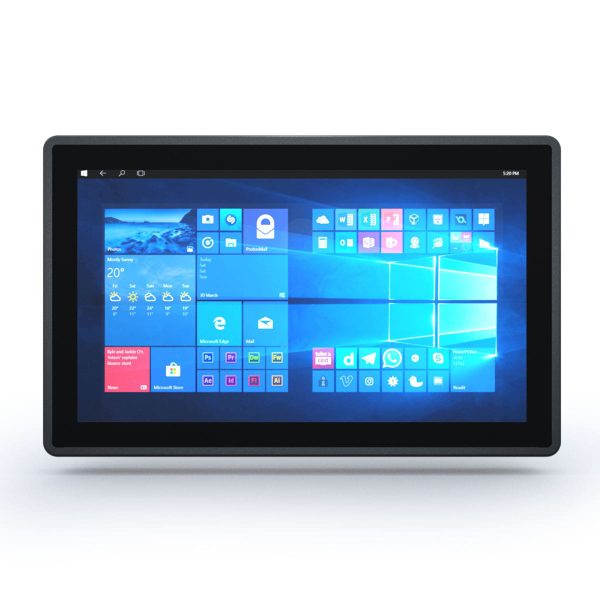

With a 15.6” Full HD wide screen, a new-generation Intel N-series quad-core processor and a standard NVMe SSD, the E-Life EPC-616 G3 is the latest model of the EPC-616 family. With dual 2.5GbE + 1GbE network ports, 3 × RS232 + 1 × RS485 and CE certification, it offers a reliable platform for operator panel, data acquisition and HMI projects.
E-Life EPC-616 G3 Panel PC 15.6” Full HD LCD, 350 cd/m², PCAP touch Intel N-series quad-core processor, 128 GB NVMe SSD 1 × 2.5GbE + 1 × 1GbE, 3 × RS232 + 1 × RS485 USB 3.x and USB 2.0 ports Remote Power Switch socket CE certification, 5-year warranty
The Intel N95 quad-core processor reaches up to 3.60 GHz; with support for up to 16 GB DDR4 3200 MHz memory it can be tailored to HMI and data acquisition applications.
The standard 128 GB M.2 PCIe Gen3 x2 NVMe SSD contributes to fast operating system and application startup.
One 2.5GbE and one 1GbE Ethernet port help manage data flow by keeping the facility network and machine network separate.

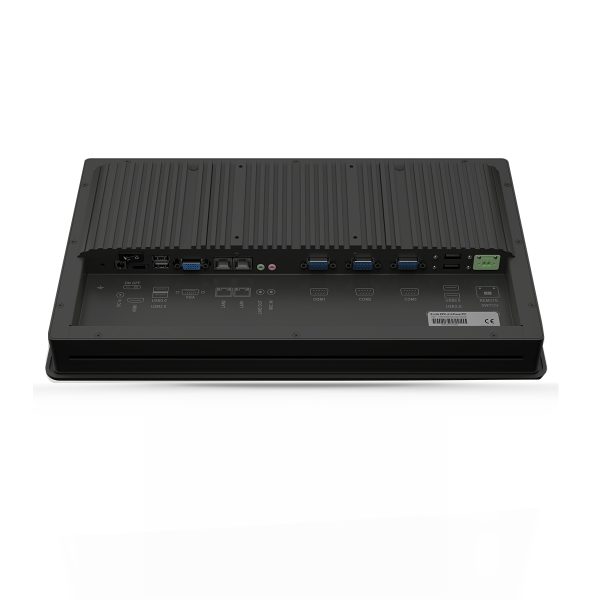

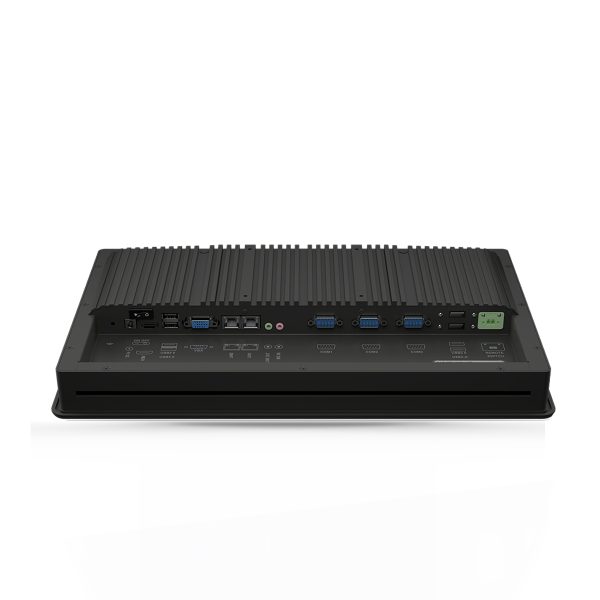

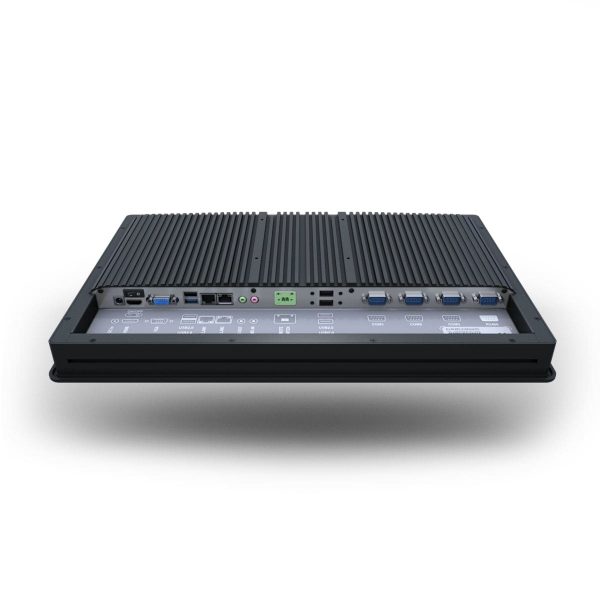

Four serial ports, 1 × USB 3.x and 3 × USB 2.0 connect to PLCs, meters and peripherals; the Remote Power Switch socket enables remote on/off.

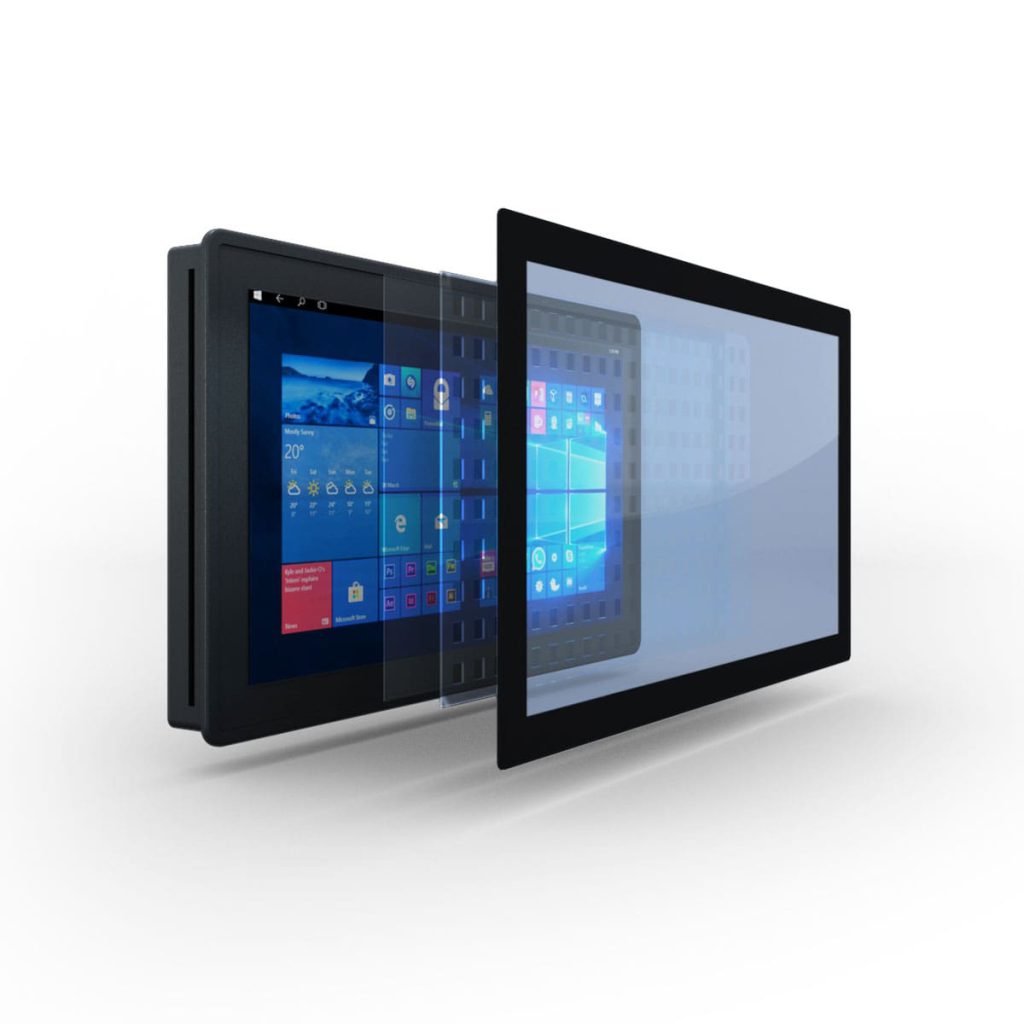

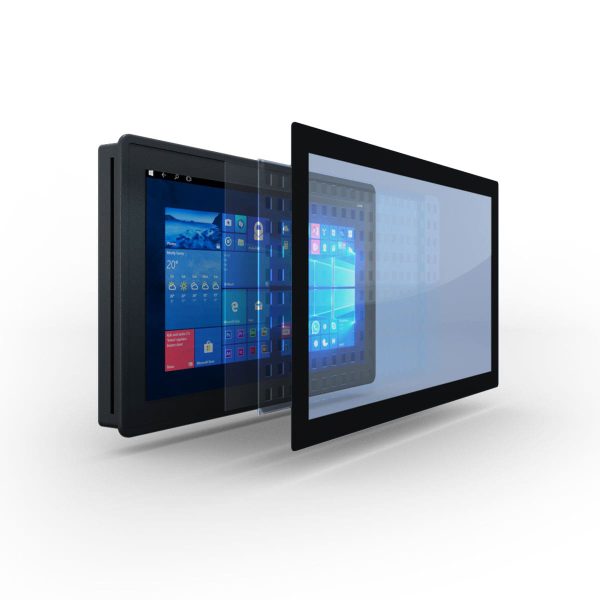

The 15.6" display with 1920 × 1080 resolution offers 350 cd/m² brightness; glove-capable PCAP multi-touch makes it suitable for operator use.
Windows 10/11 IoT, Windows 10/11 Pro and Linux options provide flexibility for projects with different software infrastructures.
Compared with the G2, it adds an RS485 port, 2.5GbE networking and NVMe SSD, offering a more modern infrastructure in the same 15.6" Full HD form factor.
Dual networking, a variety of serial ports and a large screen allow MES reporting and remote monitoring stations to run on a single device.

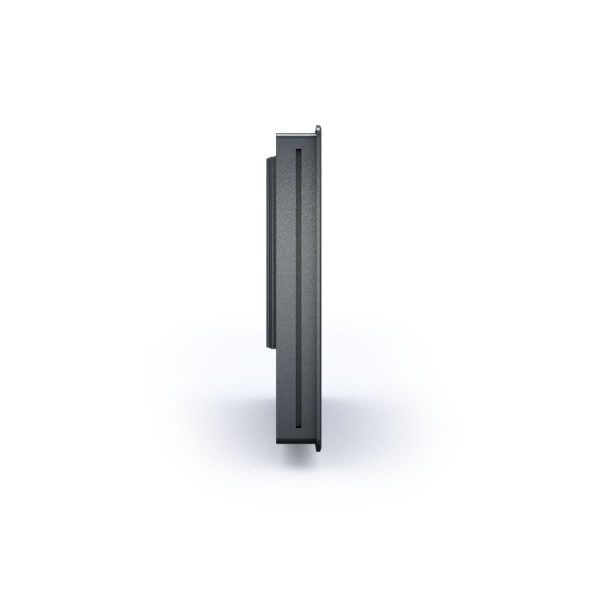

With a rugged aluminum enclosure, VESA compatibility and optional panel, desktop and kiosk stands, it adapts to different field scenarios.
E-Life EPC-616 G3 Panel PC has successfully completed testing in line with the European Union New Approach Directives and is certified with CE conformity. It meets international standards for electrical safety, electromagnetic compatibility (EMC) and product durability.
This allows it to be used reliably across a wide range of industrial fields, from production lines to machine integrations and from kiosk applications to building automation solutions.
You get the EPC-616 G3 backed by E-Life Solutions, Noya Tech’s own brand. Defining, assembling and testing the right configuration for your memory and software infrastructure is done through our ISO 9001 and ISO 27001 certified processes; in the field we provide support through our technical service in Türkiye.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life EPC-616 G3 Panel PC.
| Platform | |
|---|---|
| Processor | Intel N95, 4 cores, up to 3.60 GHz |
| Memory | DDR4 3200 MHz (max. 16 GB) |
| Storage | 128 GB M.2 PCIe Gen3 x2 NVMe SSD |
| Operating System | Windows 10/11 IoT, Windows 10/11 Pro, Linux |
| Display & Touch | |
| Display | 15.6” TFT LCD |
| Resolution | 1920 × 1080 Full HD |
| Brightness | 350 cd/m² |
| Touch | PCAP multi-touch, glove support |
| Connections | |
| LAN | 1 × 2.5GbE + 1 × 1GbE Ethernet |
| Serial Port | 3 × RS232, 1 × RS485 |
| USB | 1 × USB 3.x, 3 × USB 2.0 |
| Power Control | Remote Power Switch socket |
| Mechanical & Warranty | |
| Enclosure | Rugged aluminum |
| Mounting | VESA compatible; optional panel, desktop and kiosk stand |
| Certificate | CE |
| Warranty | 5 years |
No specifications match your search.
The 15.6” Full HD wide-screen EPC-616 family stands out where detailed interfaces and multi-window applications are used.
The E-Life EPC-616 G3 Panel PC comes with a 5-year warranty, providing peace of mind for your long-term projects.
Email: info@noyatech.com
Phone: +90 850 399 66 92
Phone: +90 212 294 24 03
Our expert team is here to help with product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by quoting the product code.
Compatible with Windows 10/11 IoT, Windows 10/11 Pro and Linux.
VESA 100 × 100 holes are standard; a panel mount bracket, desktop stand and kiosk stand are optional.
The E-Life EPC-616 G3 Panel PC comes with a 5-year warranty.
