12th Gen Core i5-1235U
The Intel Core i5-1235U 10-core processor reaches up to 4.40 GHz and, with Intel Iris Xe Graphics, supports visually intensive interfaces and image processing workloads.
1 / 6
E-Life Solutions

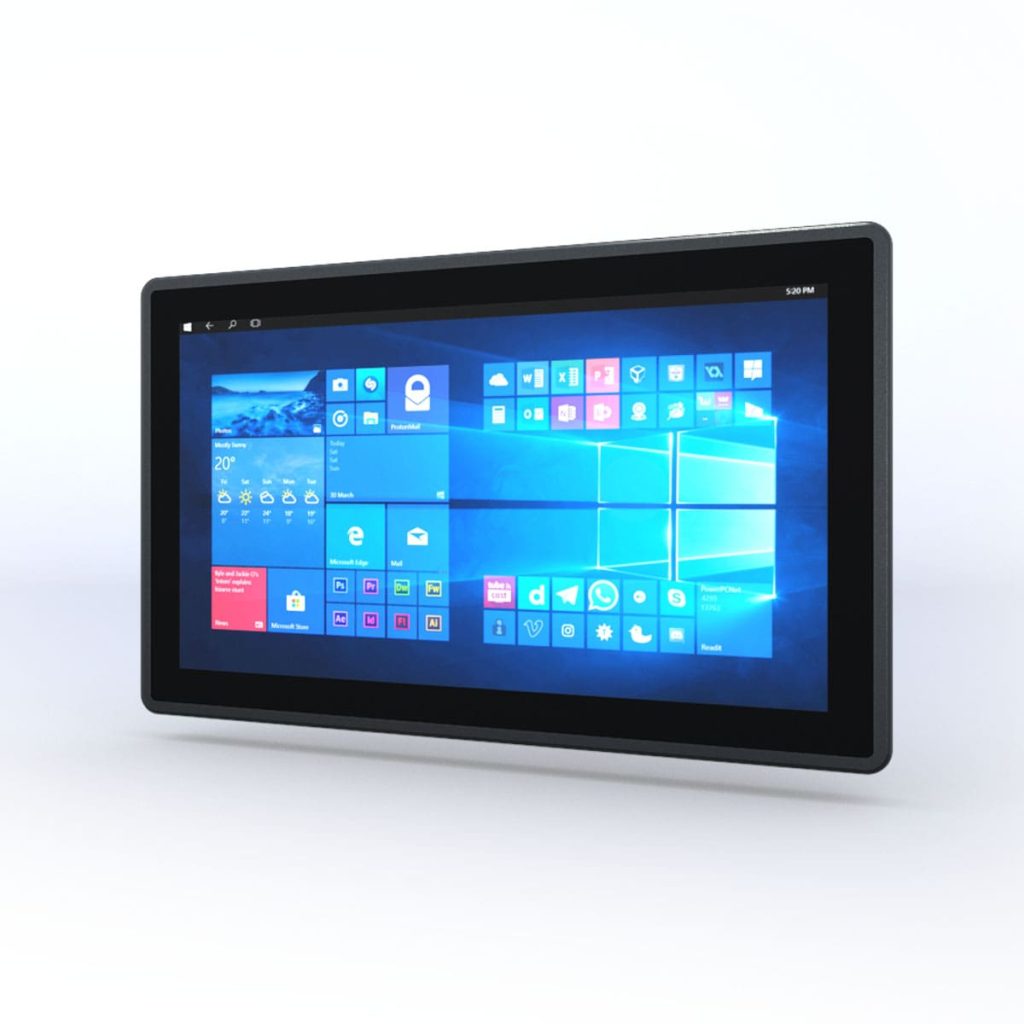

With a 12th Gen Intel Core i5-1235U ten-core processor, 8 GB of standard memory and an NVMe SSD, the E-Life EPC-718 G2 1235U delivers high performance on an 18.5” display. With 6 × USB 3.0, dTPM 2.0 and 4G/5G support via M.2, it is a powerful field terminal for image processing and enterprise software clients.
E-Life EPC-718 G2 1235U Panel PC 18.5” TFT LCD, 350 cd/m², PCAP touch Intel Core i5-1235U 10 cores, 128 GB NVMe SSD 2 × Intel Gigabit LAN, 3 × RS232 + 1 × RS485 6 × USB 3.0, HDMI + DP dTPM 2.0, Remote Power Switch socket CE certification, 5-year warranty
The Intel Core i5-1235U 10-core processor reaches up to 4.40 GHz and, with Intel Iris Xe Graphics, supports visually intensive interfaces and image processing workloads.
Standard 8 GB DDR4 3200 MHz memory can be upgraded to 64 GB; a 128 GB NVMe SSD is standard, with 256 GB optional.

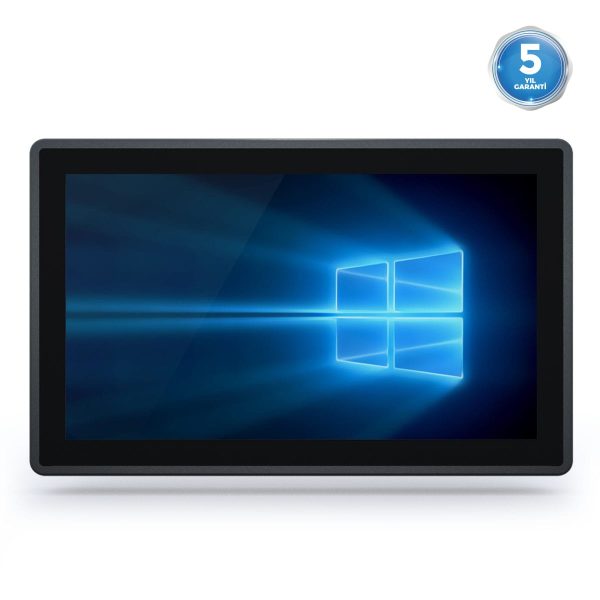

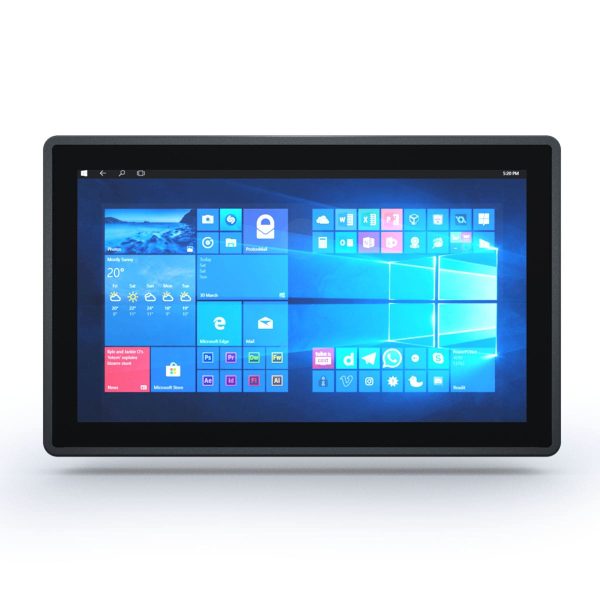

The 18.5" TFT display comes standard at 1366 × 768, with an optional Full HD resolution; it delivers 350 cd/m² brightness and a 178° viewing angle.

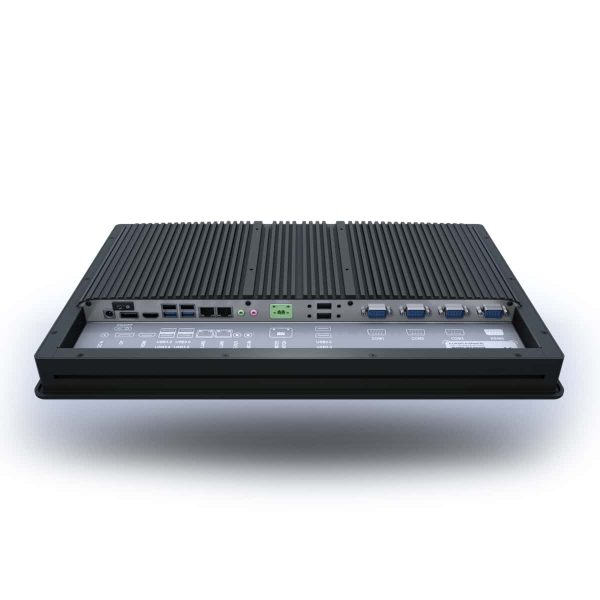

6 × USB 3.0, 3 × RS232, 1 × RS485 and HDMI + DP output provide broad connectivity for industrial cameras, readers and field devices.
The M.2 B-Key slot enables 4G/5G and the M.2 E-Key 2230 slot enables wireless connectivity with optional Wi-Fi 5 or Wi-Fi 6E + Bluetooth.
Hardware-based dTPM 2.0 and dual Intel Gigabit Ethernet (i219 + i210) provide secure, segregated connectivity on corporate networks.
With a Core i5 processor and up to 64 GB memory, it stands apart from the Celeron/N-series 18.5" models for heavy workloads such as machine vision and edge computing.
Cellular module support reduces dependence on wired networks in field data collection and remote monitoring projects.

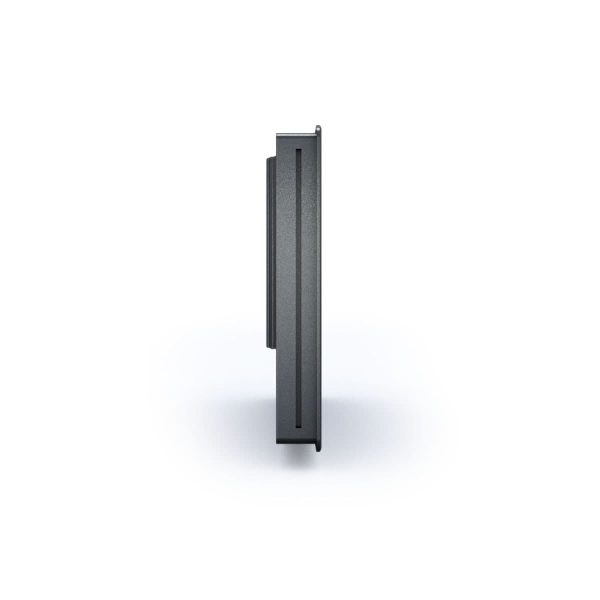

With a 474 × 294 × 52 mm aluminum enclosure, VESA 100 × 100 and kiosk stand options, it suits production areas in the 0 ~ 60 °C range.
E-Life EPC-718 G2 1235U Panel PC has successfully completed testing in line with the European Union New Approach Directives and is certified with CE conformity. It meets international standards for electrical safety, electromagnetic compatibility (EMC) and product durability.
This allows it to be used reliably across a wide range of industrial fields, from production lines to machine integrations and from kiosk applications to building automation solutions.
You get the EPC-718 G2 1235U backed by E-Life Solutions, Noya Tech’s own brand. Our technical team defines the right configuration for your project in terms of screen resolution, memory and wireless module; we provide assembly, testing and service support through our ISO 9001 and ISO 27001 certified processes.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life EPC-718 G2 1235U Panel PC.
| Platform | |
|---|---|
| Processor | Intel Core i5-1235U, 10 cores, up to 4.40 GHz, 12 MB cache |
| Memory | Standard 8 GB DDR4 3200 MHz (max. 64 GB) |
| Storage | 128 GB M.2 PCIe Gen3 x2 NVMe SSD (256 GB optional) |
| Graphics | Intel Iris Xe Graphics |
| Security | dTPM 2.0 |
| Operating System | Windows 10 |
| Display & Touch | |
| Display | 18.5” TFT LCD |
| Resolution | 1366 × 768 (optional Full HD) |
| Brightness / Contrast | 350 cd/m² / 1000:1 |
| Viewing Angle | 178° / 178° |

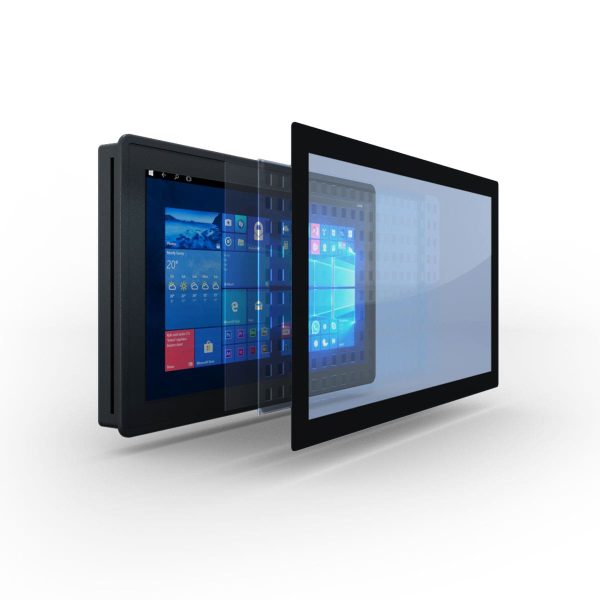

| Touch | PCAP, 5-point, glove support |
| Connections | |
| LAN | 1 × Intel i219 + 1 × Intel i210 Gigabit Ethernet |
| Serial Port | 3 × RS232, 1 × RS485 |
| USB | 6 × USB 3.0 |
| Video Output | HDMI + DP |
| Expansion | M.2 E-Key 2230 (Wi-Fi/BT), M.2 B-Key (4G/5G) |
| Wireless | Optional Wi-Fi 5 or Wi-Fi 6E + Bluetooth |
| Mechanical & Power | |
| Enclosure | Aluminum, electrostatic powder-coated metal |
| Mounting | VESA 100 × 100; optional panel, desktop and kiosk stand |
| Dimensions | 474 × 294 × 52 mm |
| Weight | 6 kg |
| Power | 12V DC (12V/5A adapter) |
| Operating Temperature | 0 ~ 60 °C |
| Certificate | CE |
| Warranty | 5 years |
No specifications match your search.
The EPC-7xx series combines Core-class processing power with a large screen to serve applications with heavy software workloads.
The E-Life EPC-718 G2 1235U Panel PC comes with a 5-year warranty, providing peace of mind for your long-term projects.
Email: info@noyatech.com
Phone: +90 850 399 66 92
Phone: +90 212 294 24 03
Our expert team is here to help with product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by quoting the product code.
Runs Windows 10.
VESA 100 × 100 holes are standard; a panel mount bracket, desktop stand and kiosk stand are optional.
Operates at 0 ~ 60 °C ambient temperature with 12V DC input.
The E-Life EPC-718 G2 1235U Panel PC comes with a 5-year warranty.
