19” Zero-Bezel PCAP Touch
The 19” TFT LCD offers 1280 × 1024 resolution, 350 cd/m² brightness and 1000:1 contrast; the 10-point zero-bezel PCAP touch has a lifetime of at least 50 million touches per point.
1 / 5
E-Life Solutions

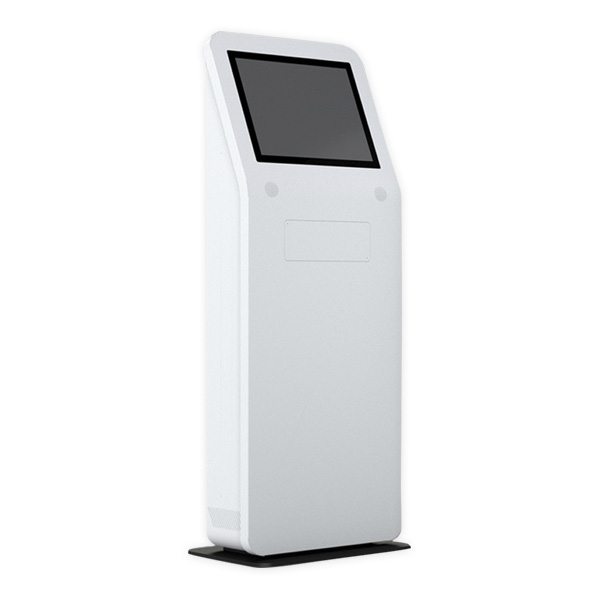

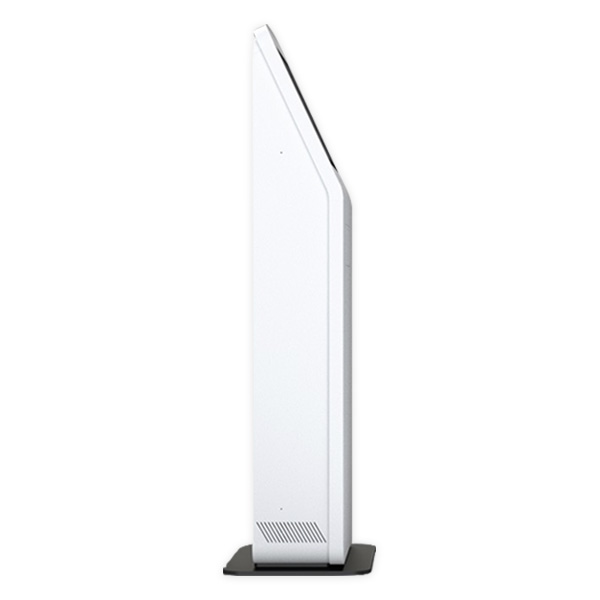

The E-Life Kiosk EK-119 is a kiosk system designed for uninterrupted 24/7 operation with a 19″ PCAP touchscreen and an industrial Box PC module. With an Intel Celeron J6412 processor as standard and optional i3-N305 or i5-1235U processors, an ergonomic rugged cabinet and a lockable rear service door, it offers a reliable solution for information, registration and self-service points.
The 19” TFT LCD offers 1280 × 1024 resolution, 350 cd/m² brightness and 1000:1 contrast; the 10-point zero-bezel PCAP touch has a lifetime of at least 50 million touches per point.
The industrial Box PC module is configured to the application with an Intel Celeron J6412 quad-core 2.00 GHz processor, as well as optional Intel Core i3-N305 and i5-1235U options.
The fanless aluminum PC enclosure and 150 W fanless industrial power supply provide silent operation in public areas with a low risk of dust-related failures.
6 × RS232, 4 × USB 3.2 + 4 × USB 2.0 and 2 × Gigabit Ethernet simplify the integration of peripherals such as printers, card readers and barcode readers.
The kiosk can be equipped as needed with options including a MIFARE or magnetic card reader, 60 / 80 mm thermal kiosk printer, 1D/2D barcode reader, Wi-Fi and steel keyboard & trackball.

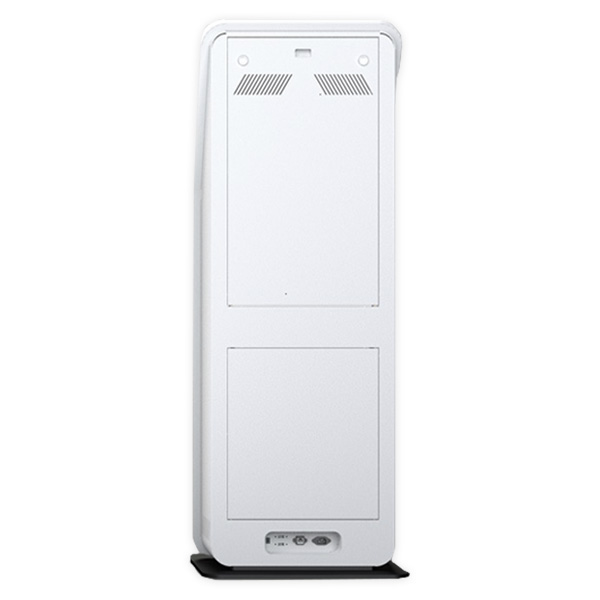

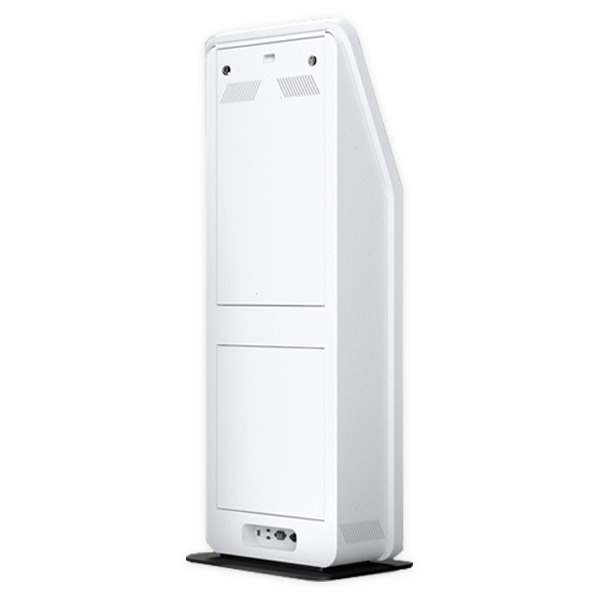

The electrostatic powder-coated DKP steel cabinet and lockable rear door protect the hardware; corporate color options and optional wrapping ensure alignment with your brand identity.
It offers a modular kiosk structure suited to self-service scenarios such as information points, retail, queue management and hospital automation.
Processor and peripheral options allow the kiosk to be equipped for different tasks such as payment, card reading or information delivery.
Corporate color options and wrap application allow the kiosk to be positioned in line with your corporate identity.
The EK-119 is offered under E-Life Solutions, the registered brand of Noya Tech. We manage the entire process from a single source—from selecting the processor, peripherals and cabinet color, to assembly and testing at our 2,500 m² facility, to post-installation technical service in Türkiye.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life Kiosk EK-119.
| PC Module | Industrial Box PC |
|---|---|
| Processor | Intel® Celeron ® J6412 Quad-Core 2.00 GHz, Optional Intel Core i3-N305 and i5-1235U Processor Options |
| RAM | 4GB 1333 MHz DDR3L |
| Hard Disk | 64 GB mSATA SATAIII SSD |
| PC Enclosure | Aluminum Fanless Enclosure |
| Monitor Type | 19” TFT LCD |
| Monitor Resolution | 1280 x 1024 |
| Monitor Brightness | 350 cd/m2 |
| Monitor Contrast | 1000:1 |
| Touch Panel | Multi-Touch Projected Capacitive Zero-Bezel Touchscreen |
| Touch Features | 10-Point Multi-Touch, Minimum 50 Million Touch Lifetime per Point |
| Graphics Card | Intel® HD Graphics |
| LAN | 2 x Realtek RTL8111G Gigabit Ethernet |
| Serial Port | 6 x RS232 |
| USB | 4x USB 3.2 + 4x USB 2.0 |
| Audio | Realtek ALC269, 2 x 5 Watt Stereo Speakers |
| Power Supply | 150 Watt Fanless Industrial Power Supply |
| Kiosk Cabinet | Electrostatic Powder-Coated DKP Steel Sheet, Lockable Rear Door, Color Options to Match Your Corporate Colors, Optional Kiosk Wrap Application |
| Mounting | Floor mounting holes in the base |
| Optional | Durable wooden crate option for safe shipping |
| Optional Peripherals | MIFARE or Magnetic Card Reader, 60 or 80 mm Thermal Kiosk Printer, 1D/2D Barcode Reader, Wi-Fi, Steel Keyboard & Trackball |
| Warranty | 5 Years |
No specifications match your search.
You can evaluate with our expert team whether this product suits your project and use case.
Contact UsNo datasheet, catalog or user manual has been added for this product yet. You can request the latest documents from our team by citing the product name.
Contact UsE-posta: info@noyatech.com
Telefon: 0 850 399 66 92
Telefon: 0 212 294 24 03
Our expert team is here to help with your product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by citing the product name.
Memory / storage: 4GB 1333 MHz DDR3L.
Connectivity interfaces: 6 x RS232.
Touch: Multi-Touch Projected Capacitive Zero-Bezel Touchscreen.
You can reach us via the Request a Quote form or the Consult Our Expert button; our team will work with you to define the right configuration for your project.
