15” Sunlight-Readable Display
The 15” portrait TFT LCD offers 1024 × 768 resolution and 1000 cd/m² brightness; pure-glass PCAP touch and 6 mm tempered glass deliver a clear, durable interface outdoors.
1 / 3
E-Life Solutions

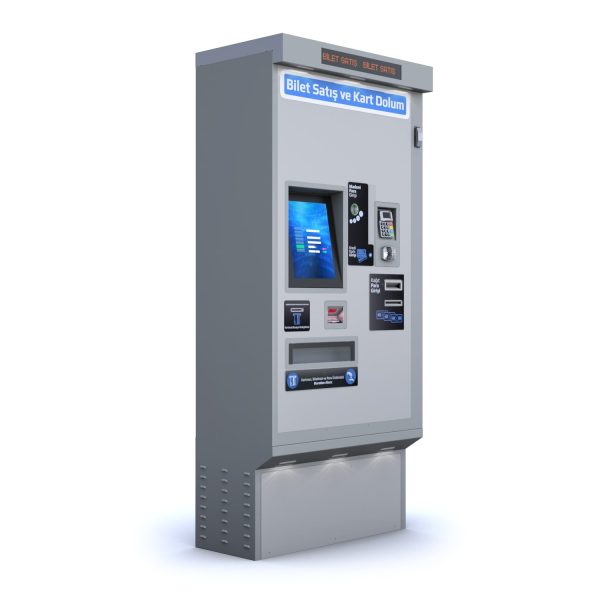

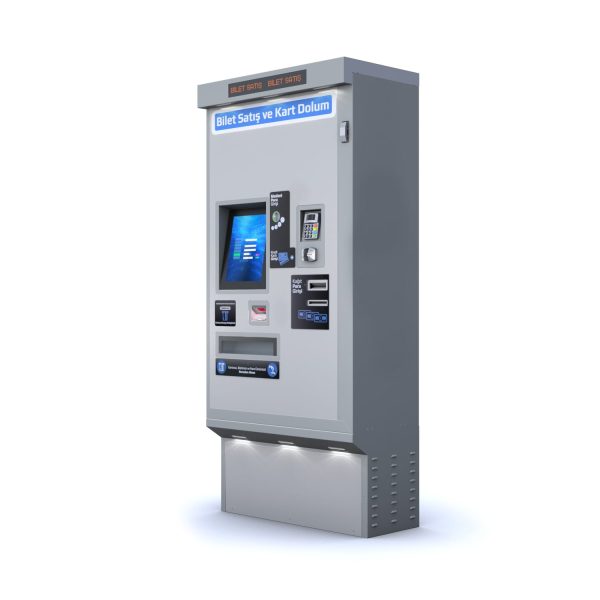

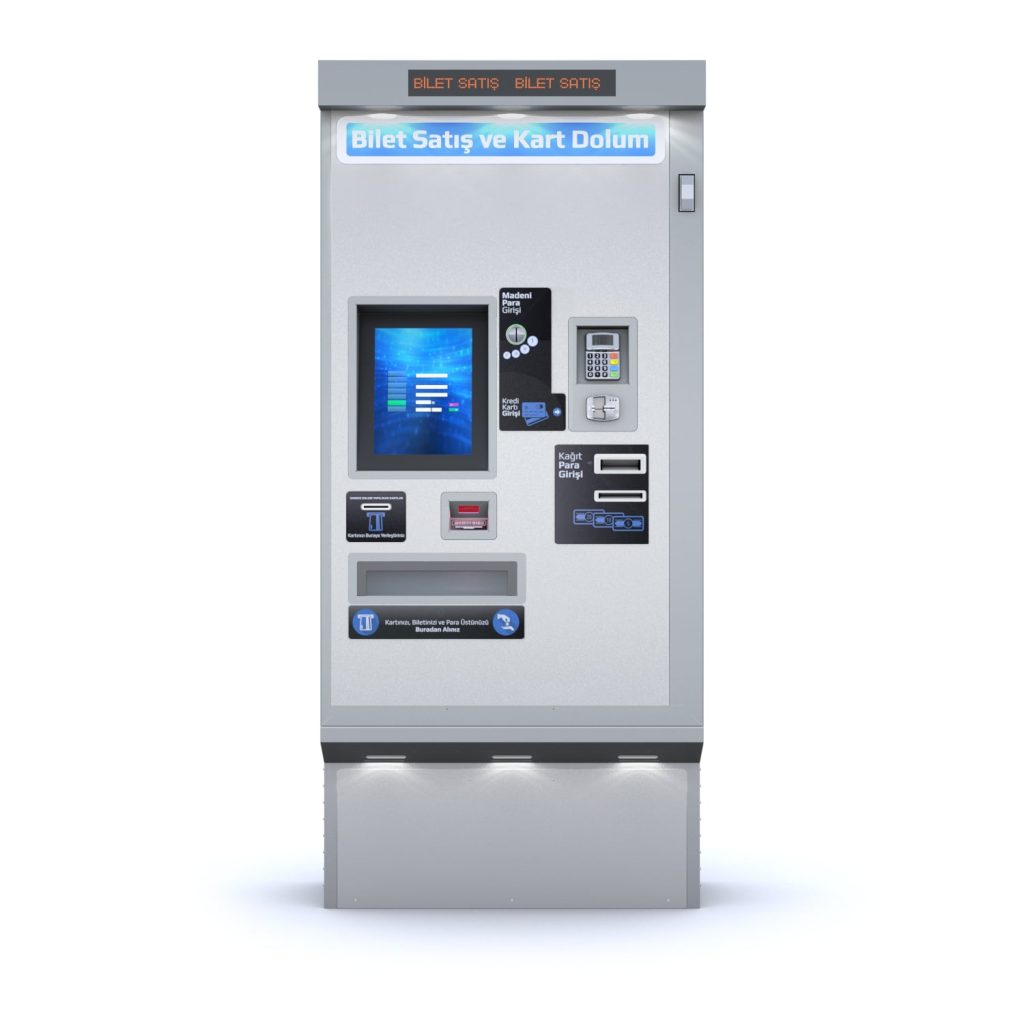

The E-Life TVM-2000 is a fully equipped ticket vending kiosk developed for public transportation and public services, featuring a sunlight-readable 15” portrait display, banknote and coin acceptance/change units, a card dispenser and an anti-vandal enclosure. With an accessibility-friendly cabinet design, industrial UPS and IP-based remote management infrastructure, it delivers uninterrupted 24/7 service.
E-Life TVM-2000 Ticket Vending Kiosk 15” sunlight-readable portrait LCD, 1000 cd/m², PCAP touch Advantech industrial rugged Box PC Banknote and coin acceptance, change dispensing units Card reader and card dispenser options Industrial UPS, IP-based remote management Anti-vandal locking metal cabinet, accessibility-friendly design
The 15” portrait TFT LCD offers 1024 × 768 resolution and 1000 cd/m² brightness; pure-glass PCAP touch and 6 mm tempered glass deliver a clear, durable interface outdoors.
Banknote acceptance with escrow and recycler options, a coin recycler and change cassettes, plus optional card dispensers (up to 4) and a credit card module, cover every payment scenario.
The Advantech industrial Box PC with an Intel Celeron J1900 processor, 64 GB SSD, Windows 10 IoT Enterprise LTSB and 10 × RS232/422/485 ports manages numerous payment peripherals.
Thanks to the SNMP-compatible kiosk control board with web interface and 3G router infrastructure, kiosks in the field can be monitored and managed centrally.
A double-layer cabinet of galvanized steel with stainless steel lamination, an anti-vandal lock, door and impact sensors and a 110 dB siren keep the kiosk secure.
A thermostat-controlled heater and closed-loop cooling balance the internal temperature; the 960 VA industrial DC UPS helps transactions complete safely during power outages.
Combining the display, PC, cash and card payment, receipt printer and security hardware in a single cabinet, it creates a turnkey point of sale at stations and payment points.
The sunlight-readable display, IP65 touch sealing, climate control and accessibility-friendly cabinet design are engineered for continuous service in public areas.
With remote monitoring, sensor alarms and optional camera recording, the operation and security of a distributed kiosk network can be tracked from a single center.
The TVM-2000 is developed under E-Life Solutions, the registered brand of Noya Tech. We manage the entire process from a single source—from configuring the payment hardware and cabinet for your project, to assembly and testing at our 2,500 m² facility, to post-installation technical service in Türkiye.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life TVM-2000 Ticket Vending Kiosk.
| Computer | |
|---|---|
| PC Module | Advantech industrial rugged Box PC |
| Processor | Intel Celeron J1900, 2.0 GHz, quad-core |
| Memory | 4 GB DDR3L (other capacity options available) |
| Storage | 64 GB SSD |
| Operating System | Windows 10 IoT Enterprise LTSB |
| I/O | 10 × RS232/422/485, 6 × USB, 12/12 Digital I/O, 2 × Gigabit LAN |
| Display & Touch | |
| Display | 15” sunlight-readable TFT LCD, portrait orientation |
| Resolution | 1024 × 768 |
| Brightness | 1000 cd/m² |
| Touch | Projected Capacitive, pure glass |
| Protection | 6 mm tempered glass, IP65-sealed touch |
| Payment Hardware | |
| Banknote Acceptor | Single/multi escrow and recycler options |
| Coins | Coin acceptor with electronic shutter, coin recycler and secure change cassettes |
| Secure Hopper | Optional secure coin collection |
| Card Dispenser | Optional, up to 4 units |
| Credit Card | Optional module-ready infrastructure |
| Receipt Printer | 60 mm thermal kiosk printer |
| Security & Management | |
| Kiosk Control Board | IP-based, SNMP-compatible, with web interface |
| Communication | Wireless connectivity via 3G router |
| UPS | 960 VA industrial DC UPS |
| Sensors | Door, cash unit door and impact sensors |
| Siren | 110 dB built-in siren |
| Camera | Optional external/internal camera and DVR/NVR recording |
| Cabinet | |
| Cabinet | Galvanized steel body, double-layer with stainless steel lamination |
| Lock | Anti-vandal outdoor vending-type lock system |
| Climate Control | Thermostat-controlled heater and closed-loop cooling |
| Dimensions | 210 × 90 × 45 cm |
| Weight | Approx. 300 kg |
| Mounting | Floor anchoring points, sealed cable entry |
No specifications match your search.

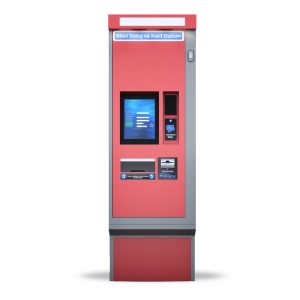

TVM series ticket vending kiosks combine cash and card payment in a cabinet built to withstand outdoor conditions.
E-Life TVM-2000 Ticket Vending Kiosk comes with a 5-year warranty, providing assurance for your long-term projects.
Email: info@noyatech.com
Phone: +90 850 399 66 92
Phone: +90 212 294 24 03
Our expert team is here to help with product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by quoting the product code.
It runs Windows 10 IoT Enterprise LTSB.
It is anchored to the floor via the mounting points in the cabinet base; cable entries are sealed.
Yes; with its sunlight-readable display, thermostat-controlled climate control and anti-vandal cabinet, it is suitable for outdoor use.
Yes, the cabinet design and colors can be customized to match your corporate identity.
