12th Gen Core i5-1235U
The Intel Core i5-1235U 10-core processor reaches up to 4.40 GHz, powering compute-intensive applications such as machine vision, MES and SCADA.
1 / 10
E-Life Solutions

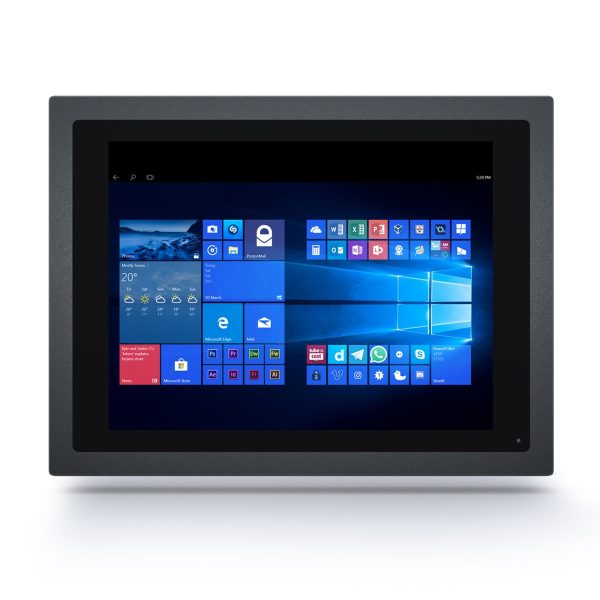

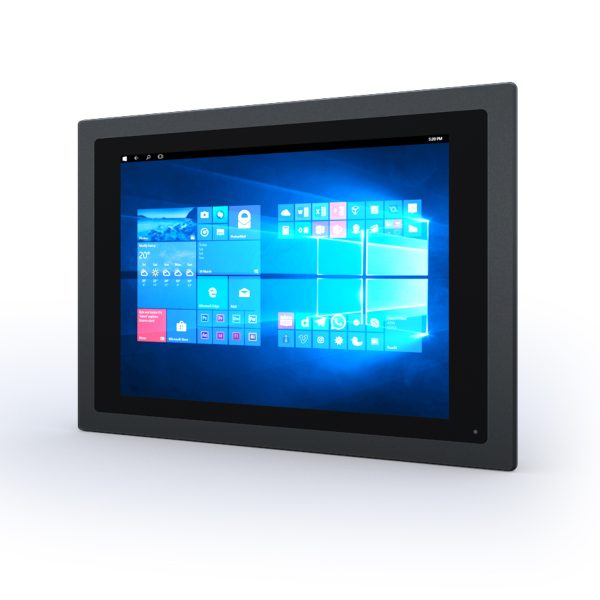

With a 12th Gen Intel Core i5-1235U ten-core processor, support for up to 64 GB memory and Iris Xe graphics, the E-Life EPC-515 G2 1235U delivers high performance in the 15” Panel PC class. With 4 × RS232 + 1 × RS485, 6 × USB 3.0 and dTPM 2.0, it is designed for demanding and secure industrial applications.

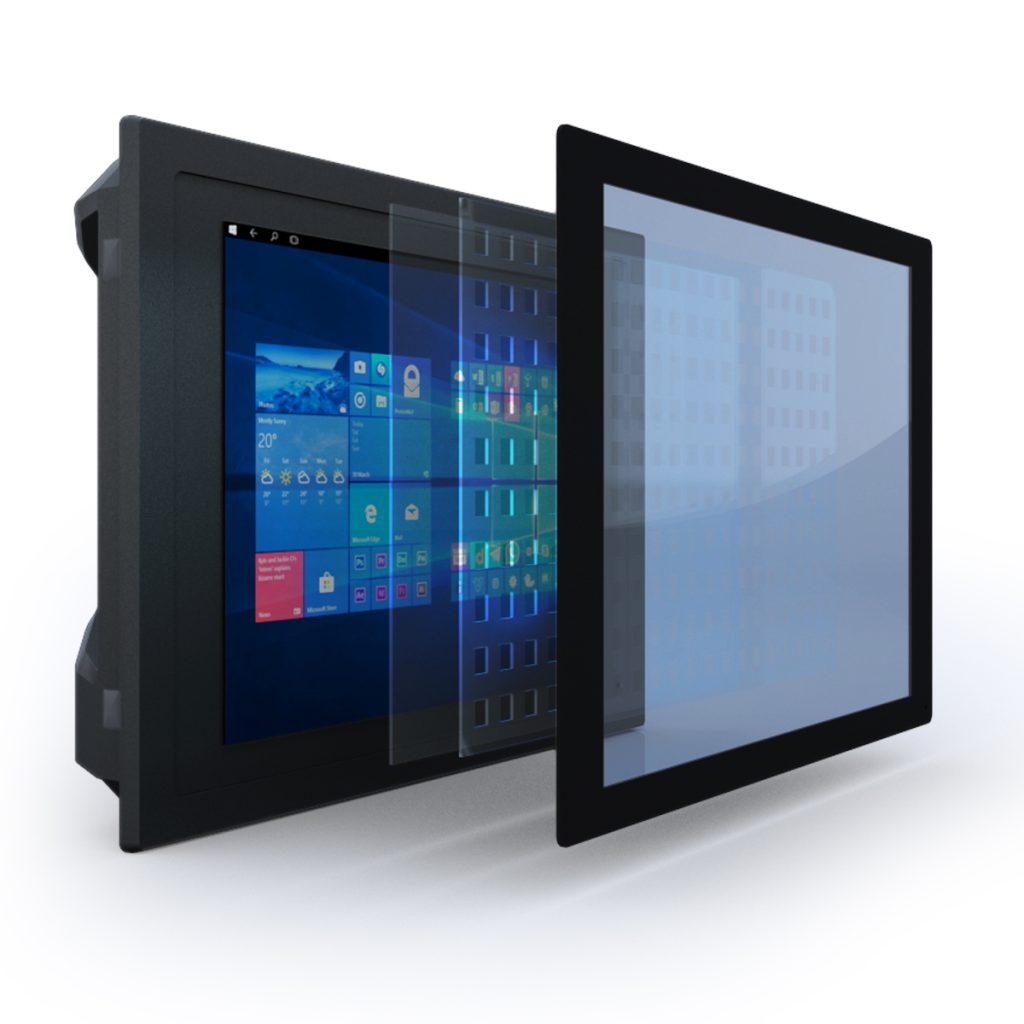

E-Life EPC-515 G2 1235U Panel PC 15” industrial TFT LCD, 350 cd/m², PCAP touch Intel Core i5-1235U 10 cores, 128 GB NVMe SSD 2 × Intel Gigabit LAN, 4 × RS232 + 1 × RS485 6 × USB 3.0, HDMI + DP output dTPM 2.0, Remote Power Switch socket CE certification, 5-year warranty
The Intel Core i5-1235U 10-core processor reaches up to 4.40 GHz, powering compute-intensive applications such as machine vision, MES and SCADA.
Standard 4 GB DDR4 3200 MHz memory can be upgraded to 64 GB; a 128 GB NVMe SSD is standard, with 256 GB and above optional.
HDMI + DP outputs with Intel Iris Xe Graphics support visually intensive interfaces and additional displays; the 15" 1024 × 768 touchscreen can be used with gloves.

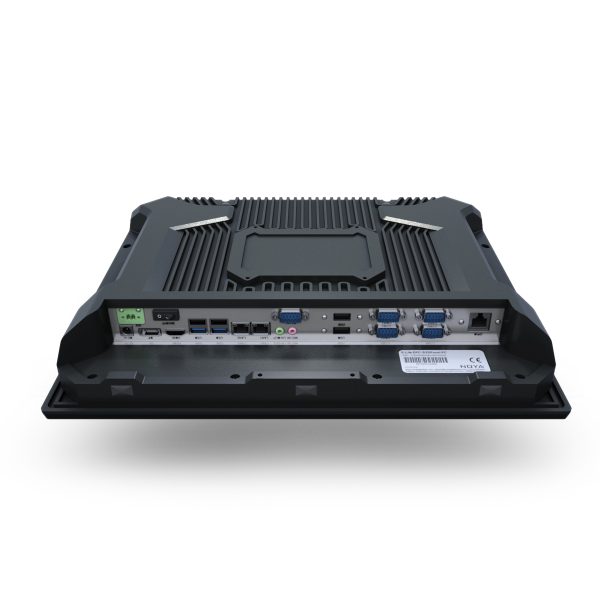

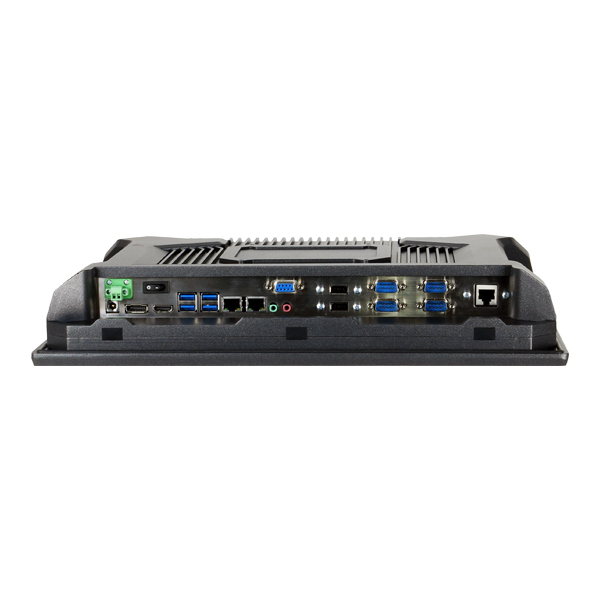

6 × USB 3.0, 4 × RS232, 1 × RS485 and optional 4-in / 4-out Digital I/O provide broad connectivity for cameras, readers and field devices.
Hardware-based dTPM 2.0 supports enforcing IT policies that require disk encryption and secure boot.
Intel i219 and Intel i210 Gigabit Ethernet ports plus optional Wi-Fi + Bluetooth provide network separation and wireless access on the same device.
With its Core i5 processor and 64 GB memory capacity, it targets quality control and edge computing projects that require more processing power than the N305 model in the family.
Support for Windows 10/11 IoT, Windows 10/11 Pro and Linux allows different software infrastructures to run on the same hardware.

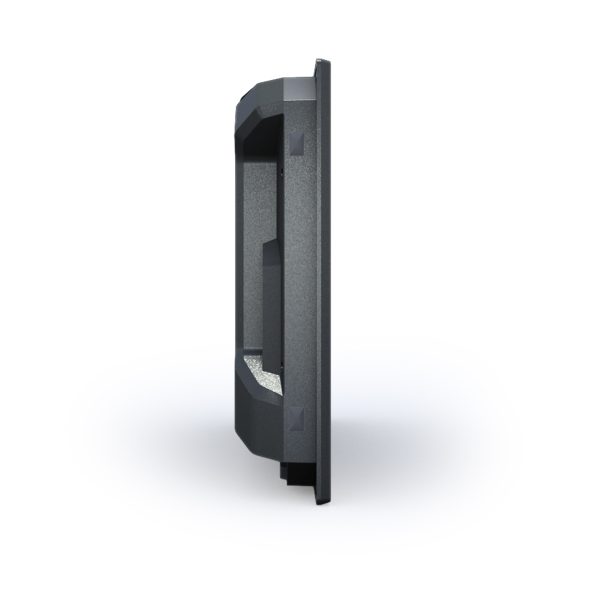

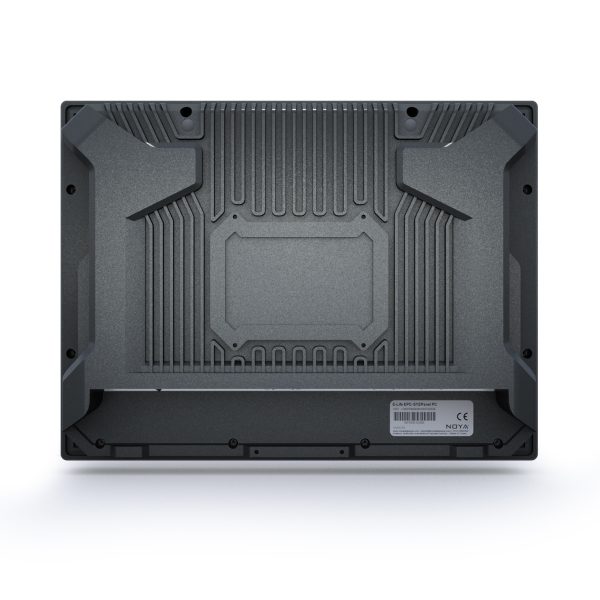

The 306 × 406 × 67 mm die-cast aluminum enclosure offers VESA 100 × 100 and kiosk stand options, with a 0 ~ 60 °C operating range.
E-Life EPC-515 G2 1235U Panel PC has successfully completed testing in line with the European Union New Approach Directives and is certified with CE conformity. It meets international standards for electrical safety, electromagnetic compatibility (EMC) and product durability.
This allows it to be used reliably across a wide range of industrial fields, from production lines to machine integrations and from kiosk applications to building automation solutions.
The EPC-515 G2 1235U is offered backed by E-Life Solutions, Noya Tech’s own brand. From memory, storage and wireless module selection to machine vision and MES integration, our technical team defines the right configuration for your project; we assemble and test it through ISO 9001 and ISO 27001 certified processes.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life EPC-515 G2 1235U Panel PC.
| Platform | |
|---|---|
| Processor | Intel Core i5-1235U, 10 cores, up to 4.40 GHz, 12 MB cache |
| Memory | Standard 4 GB DDR4 3200 MHz (max. 64 GB) |
| Storage | 128 GB M.2 PCIe Gen3 x2 NVMe SSD (256 GB and above optional) |
| Graphics | Intel Iris Xe Graphics |
| Security | dTPM 2.0 |
| Operating System | Windows 10/11 IoT, Windows 10/11 Pro, Linux |
| Display & Touch | |
| Display | 15” industrial-grade TFT LCD |
| Resolution | 1024 × 768 |
| Brightness / Contrast | 350 cd/m² / 1000:1 |
| Viewing Angle | 178° / 178° |
| Touch | PCAP, 5-point; supports latex, nitrile, PVC and PU gloves |
| Connections | |
| LAN | 1 × Intel i219 + 1 × Intel i210 Gigabit Ethernet |
| Serial Port | 4 × RS232, 1 × RS485 |
| USB | 6 × USB 3.0 |
| Digital I/O | Optional 4 inputs / 4 outputs |
| Video Output | HDMI + DP |
| Expansion | M.2 E-Key 2230 (Wi-Fi/BT) |
| Wireless | Optional Wi-Fi + Bluetooth |
| Mechanical & Power | |
| Enclosure | Die-cast aluminum, electrostatic powder coating |
| Mounting | VESA 100 × 100; optional panel, desktop and kiosk stand |
| Dimensions | 306 × 406 × 67 mm |
| Weight | Approx. 5.5 kg |
| Power | 12V DC (12V/7A adapter) |
| Operating Temperature | 0 ~ 60 °C |
| Certification & Warranty | |
| Certificate | CE |
| Warranty | 5 years |
No specifications match your search.
The EPC-515 family is positioned for applications that require Core-level processing power in the 15” display class.
The E-Life EPC-515 G2 1235U Panel PC comes with a 5-year warranty, providing peace of mind for your long-term projects.
Email: info@noyatech.com
Phone: +90 850 399 66 92
Phone: +90 212 294 24 03
Our expert team is here to help with product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by quoting the product code.
Compatible with Windows 10/11 IoT, Windows 10/11 Pro and Linux.

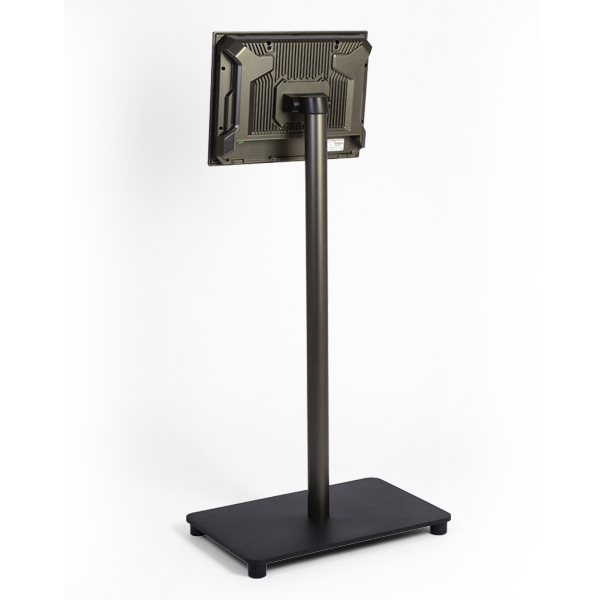

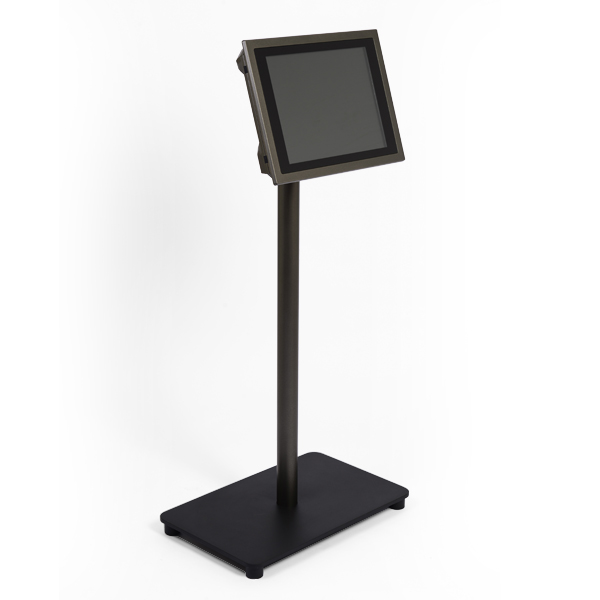

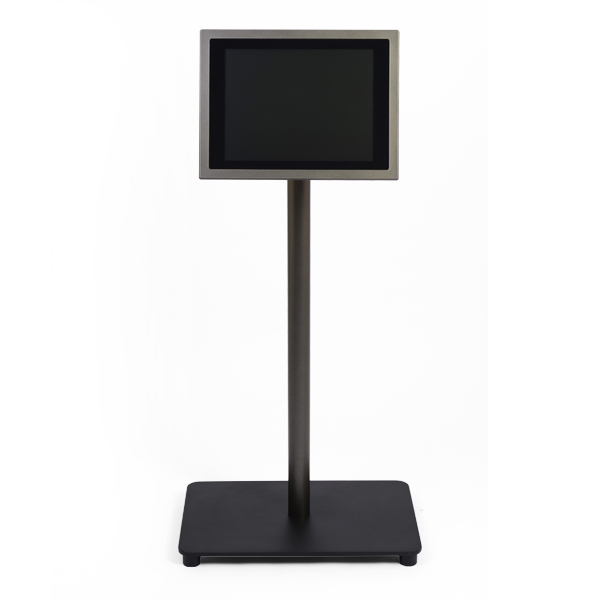

VESA 100 × 100 holes are standard; a panel mount bracket, desktop stand and kiosk stand are optional.
Operates at 0 ~ 60 °C ambient temperature with 12V DC input.
The E-Life EPC-515 G2 1235U Panel PC comes with a 5-year warranty.
