8-Core Core i3-N305
The Intel Core i3-N305 eight-core processor reaches up to 3.80 GHz and efficiently runs multiple HMI and data acquisition applications at the same time.
1 / 6
E-Life Solutions
With an Intel Core i3-N305 eight-core processor, an NVMe SSD and dual 2.5GbE + 1GbE network ports, the E-Life EPC-718 G2 N305 balances performance and energy efficiency on an 18.5” display. With dTPM 2.0, a 4G/5G expansion slot and 12/24V DC input, it is ready for connected production floors.

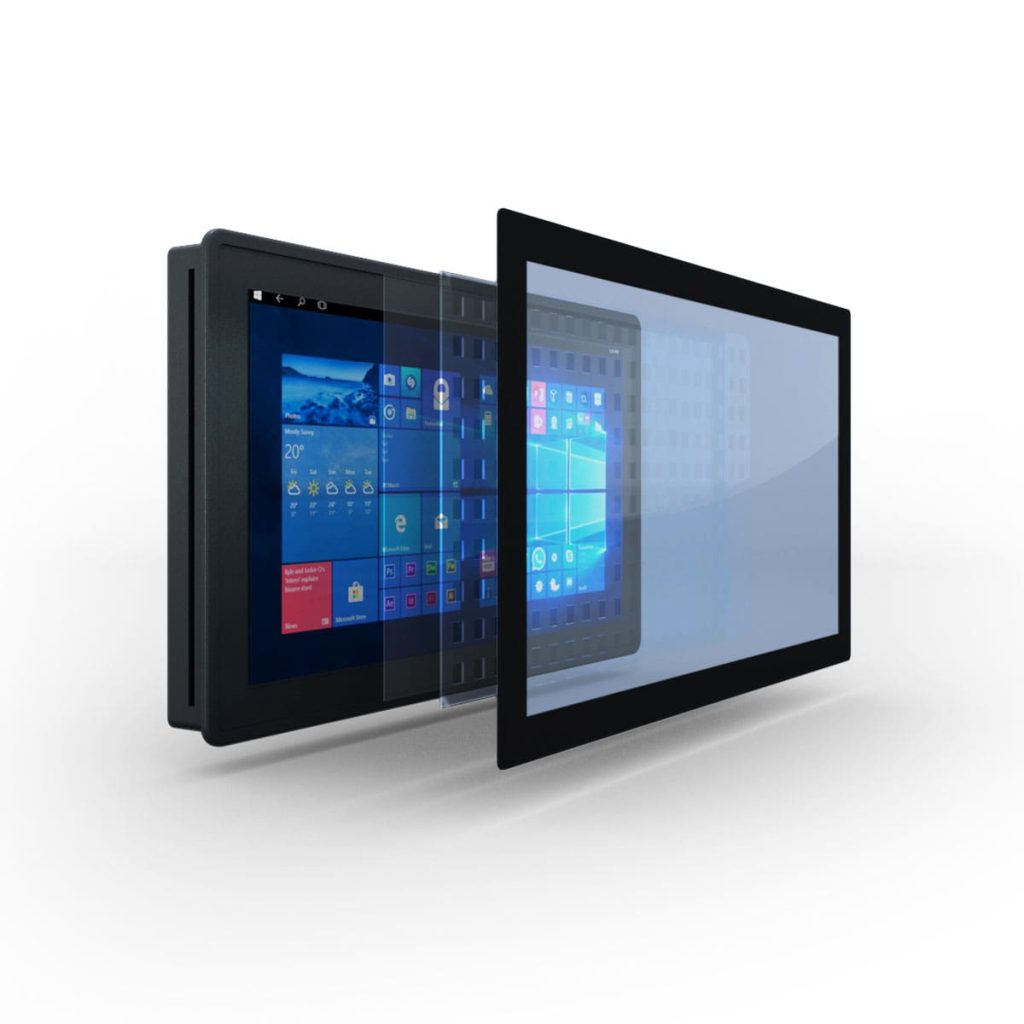

E-Life EPC-718 G2 N305 Panel PC 18.5” TFT LCD (IPS), 350 cd/m², PCAP touch Intel Core i3-N305 8 cores, 128 GB NVMe SSD 1 × 2.5GbE + 1 × 1GbE, 3 × RS232 + 1 × RS485 2 × USB 3.2 and 4 × USB 2.0, HDMI + DP dTPM 2.0, 12V/24V DC input CE certification, 5-year warranty
The Intel Core i3-N305 eight-core processor reaches up to 3.80 GHz and efficiently runs multiple HMI and data acquisition applications at the same time.
The 18.5" IPS TFT display with 1366 × 768 resolution offers 350 cd/m² brightness and a 178° viewing angle; it is used with glove-capable 5-point PCAP touch.
Intel i226 2.5GbE and Intel i210AT 1GbE ports allow the facility and machine networks to be kept separate and enable high-speed data transfer.
The M.2 B-Key 3042 slot provides 4G/5G and the M.2 E-Key 2230 slot provides wireless connectivity at warehouse and field sites with optional Wi-Fi 5 or Wi-Fi 6E + Bluetooth.
A 128 GB NVMe SSD (256 GB optional), up to 16 GB DDR4 3200 MHz memory and dTPM 2.0 hardware security are offered together.
The ability to run on 12V or 24V DC improves compatibility with cabinet and kiosk enclosure power infrastructures; it offers a 0 ~ 60 °C operating range.
The eight-core N305 platform delivers multitasking performance at a more balanced cost than the Core i5 model in the EPC-718 G2 family.
Dual network ports, a cellular module slot and 3 × RS232, 1 × RS485 serial ports provide flexible integration in SCADA, warehouse and logistics terminals.
Windows 10/11 IoT, Windows 10/11 Pro and Linux options allow different software infrastructures to run on the same hardware.
E-Life EPC-718 G2 N305 Panel PC has successfully completed testing in line with the European Union New Approach Directives and is certified with CE conformity. It meets international standards for electrical safety, electromagnetic compatibility (EMC) and product durability.
This allows it to be used reliably across a wide range of industrial fields, from production lines to machine integrations and from kiosk applications to building automation solutions.
The EPC-718 G2 N305 is offered under E-Life Solutions, Noya Tech’s registered brand. Our technical team defines the right configuration for power input, wireless module and storage; after assembly and testing at our 2,500 m² facility, we provide support through our technical service in Türkiye.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life EPC-718 G2 N305 Panel PC.
| Platform | |
|---|---|
| Processor | Intel Core i3-N305, 8 cores, up to 3.80 GHz, 6 MB cache |
| Memory | 4 GB DDR4 3200 MHz (max. 16 GB) |
| Storage | 128 GB M.2 PCIe Gen3 x2 NVMe SSD (256 GB optional) |
| Security | dTPM 2.0 |
| Operating System | Windows 10/11 IoT, Windows 10/11 Pro, Linux |
| Display & Touch | |
| Display | 18.5” TFT LCD (IPS) |
| Resolution | 1366 × 768 |
| Brightness / Contrast | 350 cd/m² / 1000:1 |
| Viewing Angle | 178° / 178° |
| Touch | PCAP, 5-point, glove support |
| Connections | |
| LAN | 1 × Intel i226 2.5GbE + 1 × Intel i210AT 1GbE |
| Serial Port | 3 × RS232, 1 × RS485 |
| USB | 2 × USB 3.2, 4 × USB 2.0 |
| Video Output | HDMI + DisplayPort |
| Expansion | M.2 E-Key 2230 (Wi-Fi/BT), M.2 B-Key 3042 (4G/5G) |
| Wireless | Optional Wi-Fi 5 or Wi-Fi 6E + Bluetooth |
| Mechanical & Power | |
| Enclosure | Aluminum, electrostatic powder-coated metal |
| Mounting | VESA 100 × 100; optional panel, desktop and kiosk stand |
| Dimensions | 474 × 294 × 52 mm |
| Weight | 6 kg |
| Power Input | 12V or 24V DC (12V/5A adapter) |
| Operating Temperature | 0 ~ 60 °C |
| Certificate | CE |
| Warranty | 5 years |
No specifications match your search.
The EPC-618 family with an 18.5” display is used where operators need large interfaces that can be read from a distance.
The E-Life EPC-718 G2 N305 Panel PC comes with a 5-year warranty, providing peace of mind for your long-term projects.
Email: info@noyatech.com
Phone: +90 850 399 66 92
Phone: +90 212 294 24 03
Our expert team is here to help with product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by quoting the product code.
Compatible with Windows 10/11 IoT, Windows 10/11 Pro and Linux.
VESA 100 × 100 holes are standard; a panel mount bracket, desktop stand and kiosk stand are optional.
Operates at 0 ~ 60 °C ambient temperature with 12V or 24V DC input.
The E-Life EPC-718 G2 N305 Panel PC comes with a 5-year warranty.
