Dual-Frequency NFC/RFID Reader
The integrated 13.56 MHz / 125 kHz dual-frequency NFC/RFID card reader enables personnel card login, time & attendance and production registration applications without extra hardware.
1 / 6
E-Life Solutions
By adding an integrated dual-frequency RFID/NFC card reader and an 8 MP camera to its 15.6” Full HD touchscreen, the E-Life EPC-616-CR G3 offers a single-device solution for field applications that require identity verification. With an Intel N-series processor, NVMe SSD and 2.5GbE + 1GbE networking, it is used reliably in personnel tracking, access control and production registration terminals.
E-Life EPC-616-CR G3 Panel PC 15.6” Full HD LCD, 350 cd/m², PCAP touch Integrated dual-frequency RFID/NFC card reader 8 MP integrated camera Intel N95 quad-core, 128 GB NVMe SSD 1 × 2.5GbE + 1 × 1GbE, 3 × RS232 + 1 × RS485 (opt.) CE certification, 5-year warranty
The integrated 13.56 MHz / 125 kHz dual-frequency NFC/RFID card reader enables personnel card login, time & attendance and production registration applications without extra hardware.
The built-in 8 MP USB camera complements card reading in access control scenarios that require video verification and recording.
It offers an Intel N95 quad-core processor (up to 3.40 GHz), 4 GB DDR4 3200 MHz memory (max. 16 GB) and a 128 GB NVMe SSD (256 GB and above optional).
The 1920 × 1080 TFT display offers 350 cd/m² brightness and a 178° viewing angle; it is used with glove-capable 5-point PCAP touch.
Intel i226 2.5GbE + Intel i210AT 1GbE ports plus optional Wi-Fi 5 or Wi-Fi 6E + Bluetooth via M.2 slots provide connectivity flexibility.
The wide 9–36V DC input range simplifies installation at entry points and production areas with different power infrastructures.
Combining the card reader, camera and touchscreen in one enclosure reduces the cabling and integration effort of separate devices.
13.56 MHz and 125 kHz support makes it easy to work with the different personnel card types already used in facilities.

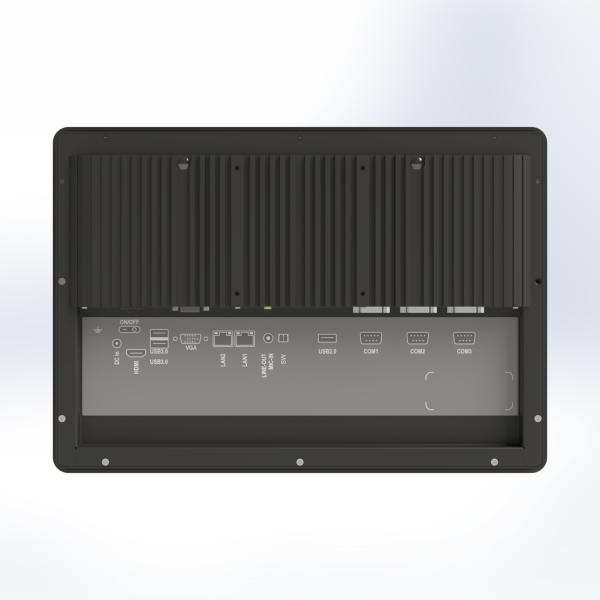

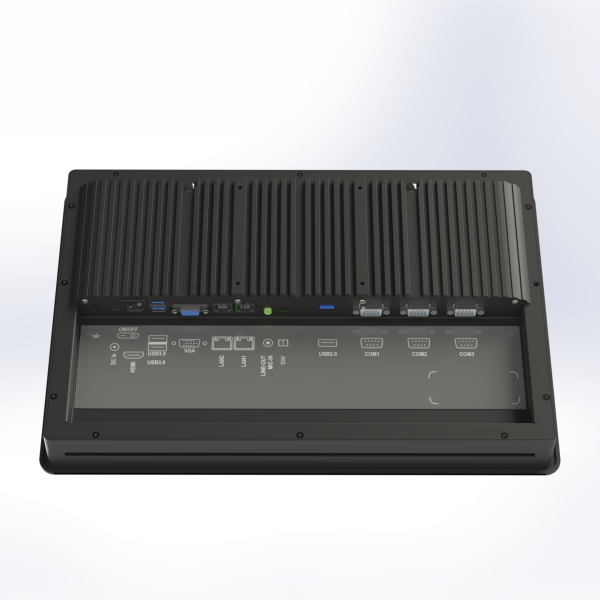

3 × RS232, optional RS485 and HDMI + VGA outputs allow the terminal to integrate with turnstiles, control systems and additional displays.
The EPC-616-CR G3 is offered under E-Life Solutions, Noya Tech’s own brand. Our technical team supports card reader and camera integration, software compatibility and pre-installation testing for your time & attendance, access control and production registration projects; after the sale, our technical service in Türkiye is with you.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life EPC-616-CR G3 Panel PC.
| Platform | |
|---|---|
| Processor | Intel N95, 4 cores, up to 3.40 GHz, 6 MB cache |
| Memory | 4 GB DDR4 3200 MHz (max. 16 GB) |
| Storage | 128 GB M.2 PCIe Gen3 x2 NVMe SSD (256 GB and above optional) |
| Graphics | Intel UHD Graphics |
| Operating System | Windows 10/11 IoT, Windows 10/11 Pro, Linux |
| Display & Touch | |
| Display | 15.6” TFT LCD |
| Resolution | 1920 × 1080 Full HD |
| Brightness / Contrast | 350 cd/m² / 800:1 |
| Viewing Angle | 178° / 178° |
| Touch | PCAP, 5-point, glove support |
| Identity & Peripherals | |
| Card Reader | NFC/RFID 13.56 MHz / 125 kHz dual frequency, USB |
| Camera | 8 MP integrated USB camera |
| Audio | Realtek HDA codec, 5W/4Ω amplifier output |
| Connections | |
| LAN | 1 × Intel i226 2.5GbE + 1 × Intel i210AT 1GbE |
| Serial Port | 3 × RS232, 1 × RS485 (optional) |
| USB | USB 3.0 and USB 2.0 ports depending on configuration |
| Video Output | HDMI + VGA |
| Expansion | M.2 E-Key 2230 (Wi-Fi/BT), M.2 B-Key 3042 |
| Wireless | Optional Wi-Fi 5 or Wi-Fi 6E + Bluetooth |
| Mechanical & Power | |
| Enclosure | Aluminum, electrostatic powder-coated metal |
| Mounting | VESA 100 × 100; optional panel, desktop and kiosk stand |
| Dimensions | 407 × 285 × 53 mm |
| Weight | 6 kg |
| Power Input | 9–36V DC (12V/5A adapter) |
| Operating Temperature | 0 ~ 60 °C |
| Certificate | CE |
| Warranty | 5 years |
No specifications match your search.
The EPC-616-CR G3 combines identity verification and a touch interface in a single device.
No datasheet, catalog or user manual has been added for this product yet. You can request the latest documents from our team by citing the product name.
Contact UsThe E-Life EPC-616-CR G3 Panel PC comes with a 5-year warranty, providing peace of mind for your long-term projects.
Email: info@noyatech.com
Phone: +90 850 399 66 92
Phone: +90 212 294 24 03
Our expert team is here to help with product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by quoting the product code.
Compatible with Windows 10/11 IoT, Windows 10/11 Pro and Linux.
VESA 100 × 100 holes are standard; a panel mount bracket, desktop stand and kiosk stand are optional.
Operates at 0 ~ 60 °C ambient temperature with a wide 9–36V DC input range.
It has a dual-frequency reader that can read cards at 13.56 MHz (Mifare/NFC) and 125 kHz (EM).
The E-Life EPC-616-CR G3 Panel PC comes with a 5-year warranty.
