10th Gen Intel Core Options
Intel Core i5-10500T or i7-10700T (35W) processor options on the LGA 1200 socket and the Intel Q470 chipset provide a powerful platform for image processing and data-intensive edge applications.
1 / 4
E-Life Solutions

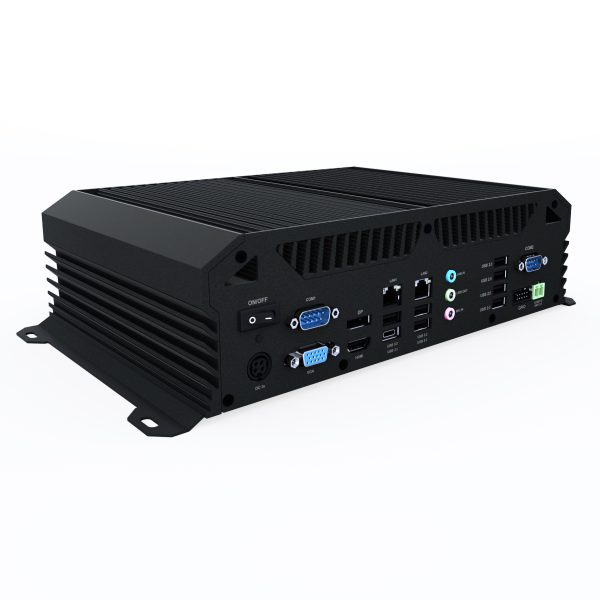

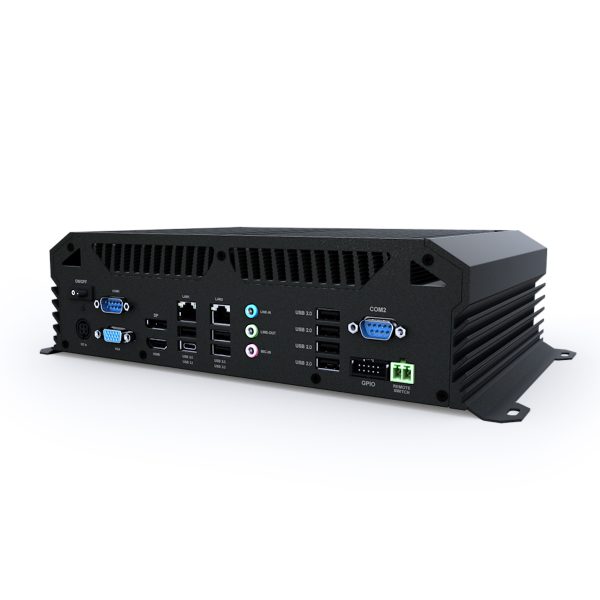

The E-Life Inno-Box EX-10 Series combines desktop-class performance with industrial durability, offering 10th Gen Intel Core i5-10500T and i7-10700T processor options on the LGA 1200 socket, the Intel Q470 chipset and a fanless aluminum enclosure. With triple display output, RAID-capable removable drive bays and Digital I/O, it is ready for image processing and data-intensive edge applications.
E-Life Inno-Box EX-10 Series 10th Gen Intel Core i5-10500T / i7-10700T (LGA 1200) 8 GB DDR4 2400 MHz memory, 128 GB SATA III M.2 SSD Optional 2 × 2.5” removable drive bay, RAID 0/1/5/10 2 × Intel Gigabit LAN (i219LM, i211AT) 1 × HDMI, 1 × DP, 1 × VGA; 4 × USB 2.0, 5 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 4 inputs / 4 outputs Digital I/O, fanless aluminum enclosure
Intel Core i5-10500T or i7-10700T (35W) processor options on the LGA 1200 socket and the Intel Q470 chipset provide a powerful platform for image processing and data-intensive edge applications.
The fanless aluminum enclosure provides cooling with no moving parts; with a 0 ~ 60 °C operating range, it runs reliably in production environments with dust and vibration.
In addition to the 128 GB M.2 SSD, an optional 2 × 2.5” externally accessible, lockable drive bay and Intel SATA RAID 0/1/5/10 support keep your data secure.
HDMI, DisplayPort and VGA outputs with Intel UHD Graphics 630 drive three displays simultaneously in control room and information board applications.

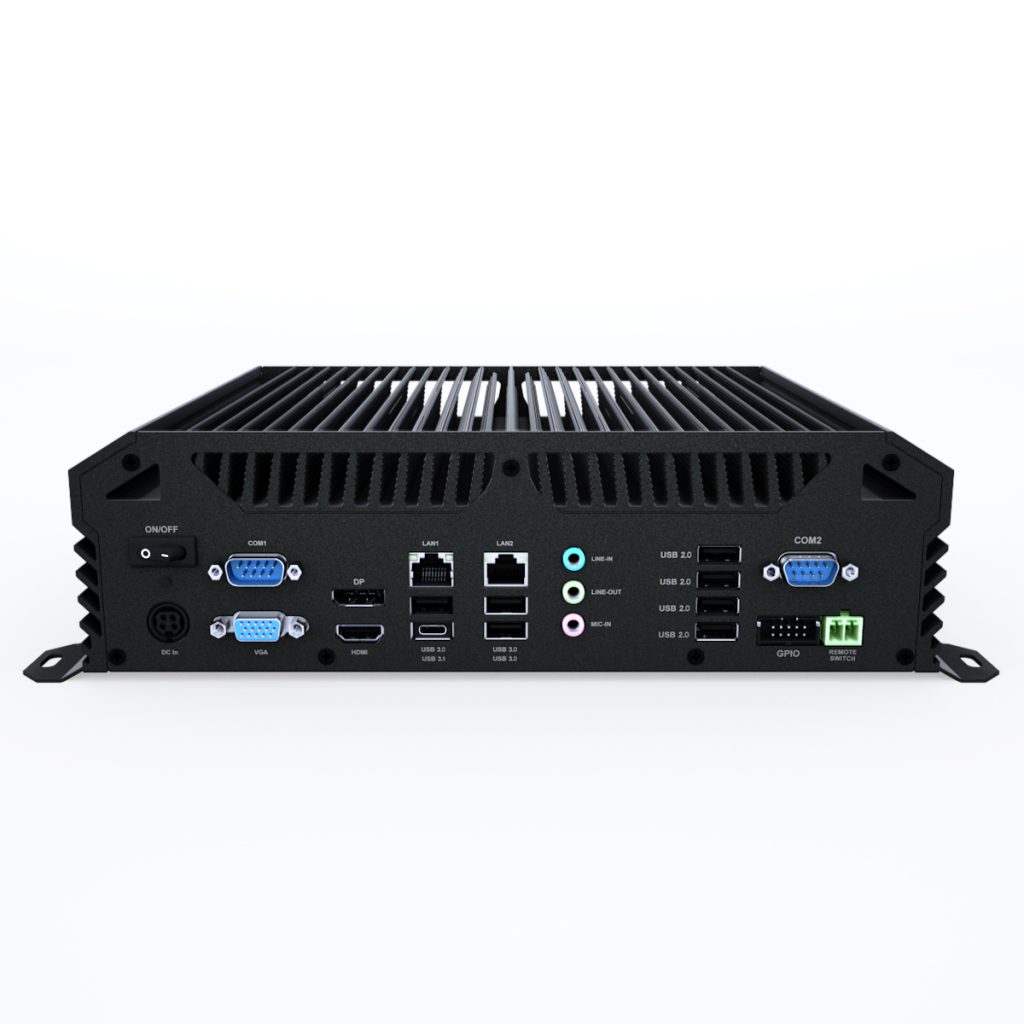

With 2 × Intel Gigabit LAN, RS232/422/485 and RS232 serial ports, 10 × USB and 4-in/4-out Digital I/O, cameras, sensors and field devices are easily integrated.
The 12–24V DC power input and external power button connector offer flexible power and control options for cabinet and in-machine installations.
Delivering desktop-class processors in a fanless, rugged enclosure, it serves demanding applications such as machine vision and SCADA.

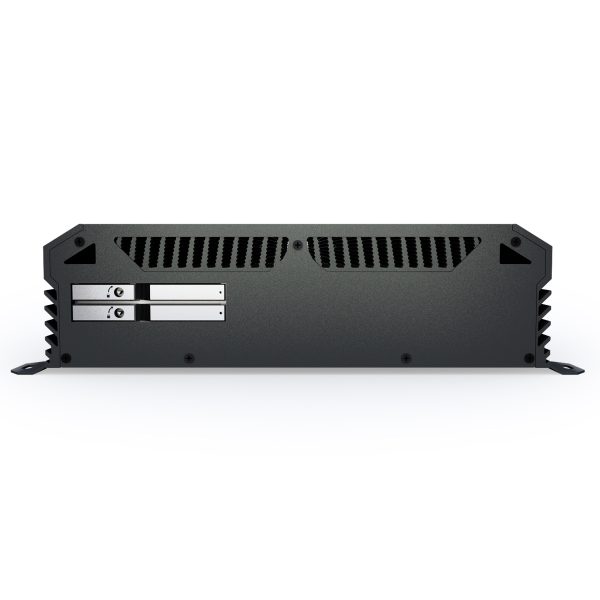

Lockable, externally accessible drive bays and RAID support provide easy serviceability and data continuity in video recording and data acquisition systems.
With i5 and i7 options, up to 32 GB of memory and Wi-Fi/4G expansion via M.2, it can be configured to meet project requirements.
The Inno-Box EX-10 Series is offered under E-Life Solutions, the registered brand of Noya Tech. We determine the processor, memory, storage and RAID configuration together based on your application, assemble and test it at our 2,500 m² facility, and support it with our technical service in Türkiye.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for E-Life Inno-Box EX-10 Series.
| Platform | |
|---|---|
| Processor | Intel Core i5-10500T (up to 3.80 GHz) or i7-10700T, 35W |
| Chipset | Intel Q470 Express |
| Memory | 8 GB DDR4 2400 MHz SODIMM (max. 32 GB) |
| Storage | 128 GB SATA III M.2 SSD |
| Operating System | Windows 10 IoT, Windows 10 Pro |
| Storage & Expansion | |
| Drive Bay | Optional 2 × 2.5” HDD/SSD, externally accessible, lock-protected |
| RAID | Intel SATA RAID 0/1/5/10 |
| SATA | 3 × SATA 6Gb/s |
| Expansion | 1 × M.2 (Wi-Fi and 4G) |
| Connections | |
| LAN | 2 × Intel Gigabit LAN (i219LM, i211AT) |
| Serial Port | 1 × RS232/422/485, 1 × RS232 |
| USB | 4 × USB 2.0, 5 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 |
| Digital I/O | 4 inputs / 4 outputs |
| Video Output | 1 × HDMI, 1 × DP, 1 × VGA (triple display) |
| Graphics | Intel UHD Graphics 630 |
| Audio | Realtek HD Audio |
| Mechanical & Power | |
| Enclosure | Aluminum, fanless |
| Power Input | 12–24V DC, external power on/off button connector |
| Adapter | 12V/10A 120W |
| Dimensions | 326 × 192 × 84 mm |
| Weight | 4 kg |
| Operating Temperature | 0 ~ 60 °C |
No specifications match your search.
The Inno-Box EX series delivers desktop-class Intel Core processors in a fanless, rugged enclosure for industrial applications that demand high processing power.
E-Life Inno-Box EX-10 Series comes with a 5-year warranty, providing assurance for your long-term projects.
Email: info@noyatech.com
Phone: +90 850 399 66 92
Phone: +90 212 294 24 03
Our expert team is here to help with product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by quoting the product code.
Compatible with Windows 10 IoT and Windows 10 Pro.
It can be placed on a desk or inside a cabinet; contact our team about mounting options.
Operates at 0 ~ 60 °C ambient temperature with 12–24V DC input.
Yes, Intel SATA RAID 0/1/5/10 is supported with the optional 2 × 2.5” drive bay.
