Intel Core i5-1235U, Integrated IPU
The 10-core Intel Core i5-1235U (max. 4.40 GHz, 12 MB Intel Smart Cache, integrated IPU) and Intel Iris Xe Graphics deliver energy-efficient performance for automation and IoT workloads.
1 / 6
E-Life Solutions

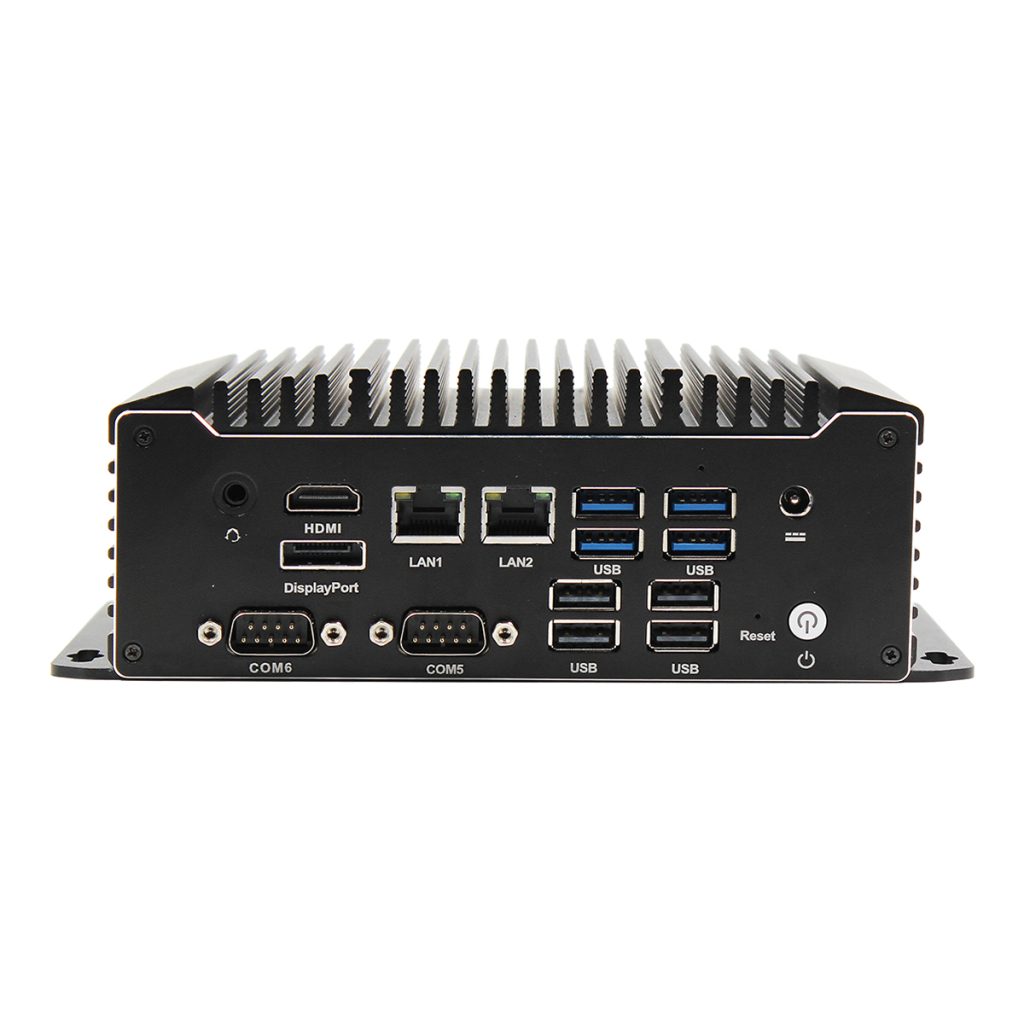

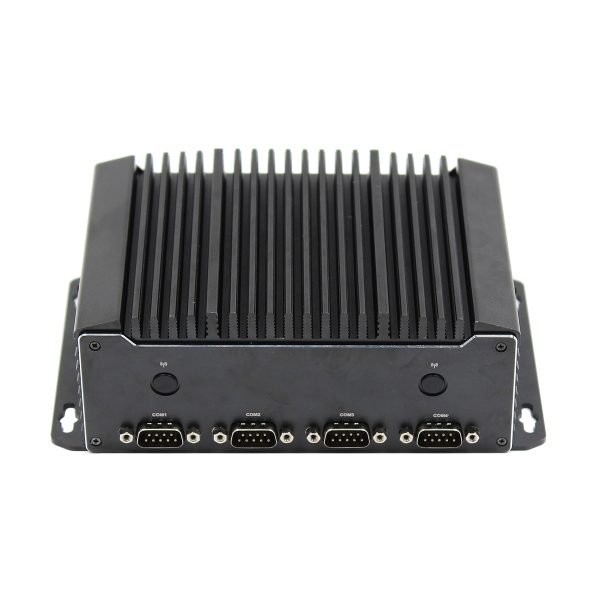

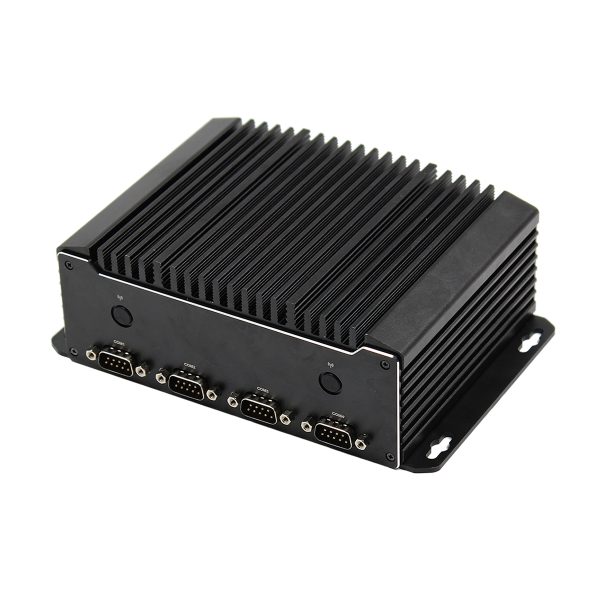

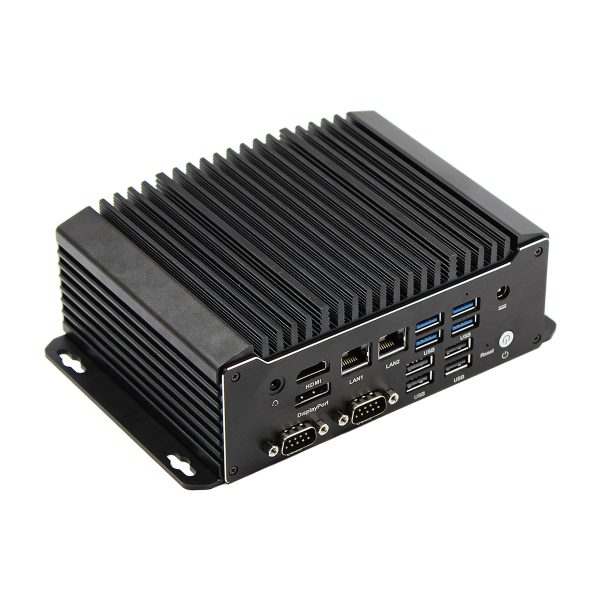

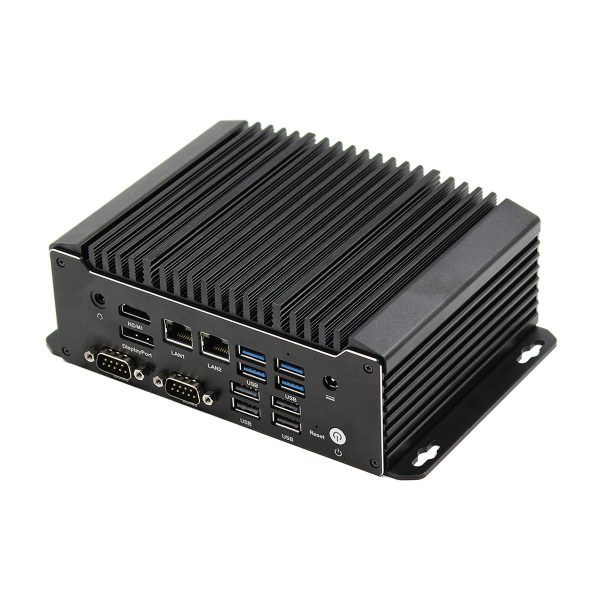

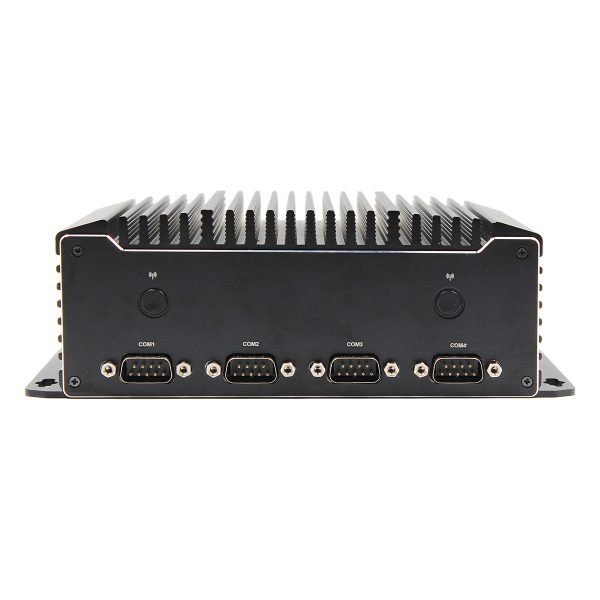

The E-Life Inno-Box G3 1235U is the next-generation model of the compact Inno-Box family, featuring a 12th Gen Intel Core i5-1235U ten-core processor, an NVMe SSD and a wide -20 ~ +60 °C operating temperature. With six serial ports, 8-bit Digital I/O, 9–35V DC wide voltage input and a cableless internal design, it is ready for harsh field conditions.
The 10-core Intel Core i5-1235U (max. 4.40 GHz, 12 MB Intel Smart Cache, integrated IPU) and Intel Iris Xe Graphics deliver energy-efficient performance for automation and IoT workloads.
A 128 GB M.2 PCIe x2 Gen3 NVMe SSD comes standard; storage can be expanded as needed with 256 GB – 2 TB NVMe options and 2 × 2.5” SATA SSD bays.
COM1–COM2 can be set to RS232/485 via BIOS; COM3–COM6 are RS232, with COM5 and COM6 supporting 2-wire serial communication. 8-bit DIO provides 4 inputs / 4 outputs.
A -20 ~ +60 °C operating temperature and 9 ~ 35V DC power input ensure reliable operation in unheated areas and field cabinets with different power infrastructures.
Intel i210 and i219 Gigabit Ethernet with Wake on LAN; optional Intel dual-band Wi-Fi + Bluetooth 4.2 or 4G can be added via the M.2 Key E slot.
The fanless aluminum body and cableless internal design, in a compact 205 × 125 × 70.5 mm size, provide durability in vibrating automation environments.
Dual HDMI outputs and Windows 10/11 IoT or Linux support enable rapid commissioning in operator stations and control panels.
BIOS-selectable RS232/485 ports allow field devices using different protocols to be connected without additional hardware.
Offering both NVMe and SATA options lets capacity grow with needs in data acquisition applications.
The Inno-Box G3 1235U is offered under E-Life Solutions, the registered brand of Noya Tech. We select the SSD, wireless module and operating system together for your factory automation or IoT project, and provide testing, installation and technical service support in Türkiye with experience gained since 1994.
Over 30 years of experience and a broad product range.
Assembly, testing and after-sales service in a 2,500 m² facility.
ISO 9001 quality and ISO 27001 information security.
Get pricing and lead time information for Inno-Box G3 1235U Rugged Box PC.
| Platform | |
|---|---|
| Model | Inno-Box G3 1235U |
| CPU | Intel® Core™ i5-1235U 10-Core Processor (Max. 4.40 GHz, 12MB Intel® Smart Cache, integrated IPU) |
| RAM | 4GB DDR4 2400 MHz SODIMM (Max. 64 GB) |
| SSD | 128 GB M.2 PCIe x2 Gen3, NVMe SSD |
| SSD (Option) | 256GB – 2 TB M.2 PCIe x2 Gen3, NVMe SSD options |
| Supported Operating Systems | Windows 10/11 IoT, Linux |
| Imaging | |
| Graphics Card | Intel® Iris® Xe Graphics |
| Display Output | 2 × HDMI |
| Connections | |
| Serial Port | COM1–COM2: RS232/485 (selectable via BIOS settings) |
| Serial Port | COM3–COM6: RS232 (COM5 and COM6 support 2-wire serial communication) |
| USB | 4 × USB 3.2, 4 × USB 2.0 |
| LAN | 1 × Intel i210 and 1 × Intel i219 Gigabit Ethernet, Wake on LAN |
| DIO | 8-Bit, 4 Inputs / 4 Outputs |
| Expansion Slot | 1 × M.2 Key E (Wi-Fi/4G) |
| Additional Storage | 2 × 2.5” SATA SSD |
| Communication | |
| Wi-Fi | Optional Intel Dual-Band Wi-Fi + BT |
| Wi-Fi Standards | IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w |
| Bluetooth | Dual Mode Bluetooth® 4.2 (BLE) |
| Audio | Onboard Realtek High-Definition Audio |
| Power & Environment | |
| Power Input | 9 ~ 35V DC |
| Power Adapter | 12V 5A AC/DC Adapter |
| Operating Temperature | -20 ~ +60°C |
| Mechanical & Support | |
| PC Enclosure | Aluminum Body, Fanless Architecture, Cableless Internal Design |
| Dimensions | 205 × 125 × 70.5 mm |
| Weight | 1.5 kg |
| Certifications | CE |
| Warranty | 5 Years |
| Notes | |
| * | Noya Dijital Dönüşüm Teknolojileri A.Ş. reserves the right to change specifications without prior notice. |
No specifications match your search.

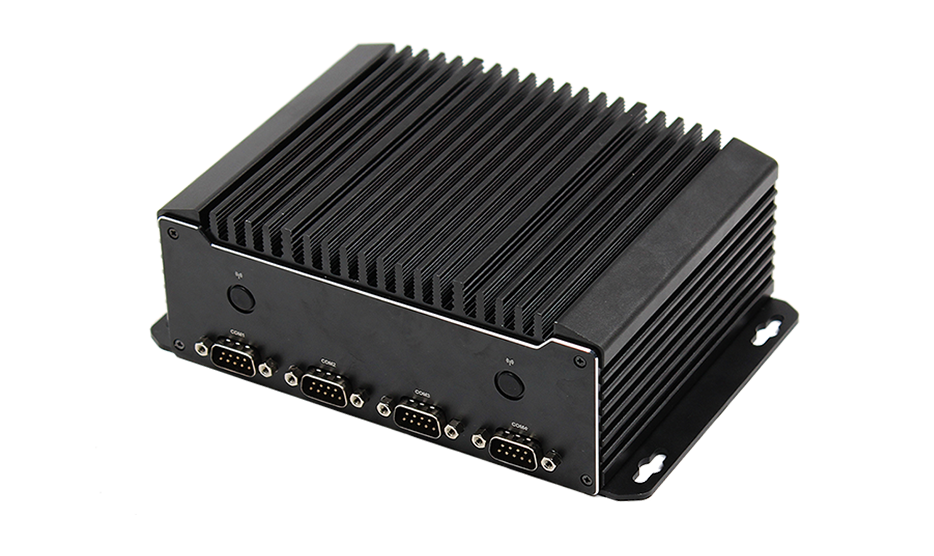

The Inno-Box G3 1235U offers a compact, fanless and rugged industrial Box PC platform for factory automation, IoT applications, data acquisition and control panels. It provides reliability with fast integration in kiosk systems and operator stations.
E-posta: info@noyatech.com
Telefon: 0 850 399 66 92
Telefon: 0 212 294 24 03
Our expert team is here to help with your product selection, installation and integration questions. You can request the latest brochure, technical drawings and user manual from our team by citing the product name.
Intel® Core™ i5-1235U 10-Core Processor (Max. 4.40 GHz, 12MB Intel® Smart Cache, integrated IPU).
-20 ~ +60°C.
9 ~ 35V DC.
4GB DDR4 2400 MHz SODIMM (Max. 64 GB).
